Seco-Larm SM-4004-LQ/W Capsule Surface-Mount Alarm Sensor

Seco-Larm · Intrusion & Alarm

Seco-Larm SM-4004-LQ/W Capsule-Type Surface-Mount Magnetic Contact, 3/4 in Gap, Closed Loop, White

Part number / SKU
SM-4004-LQ/W
$13.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

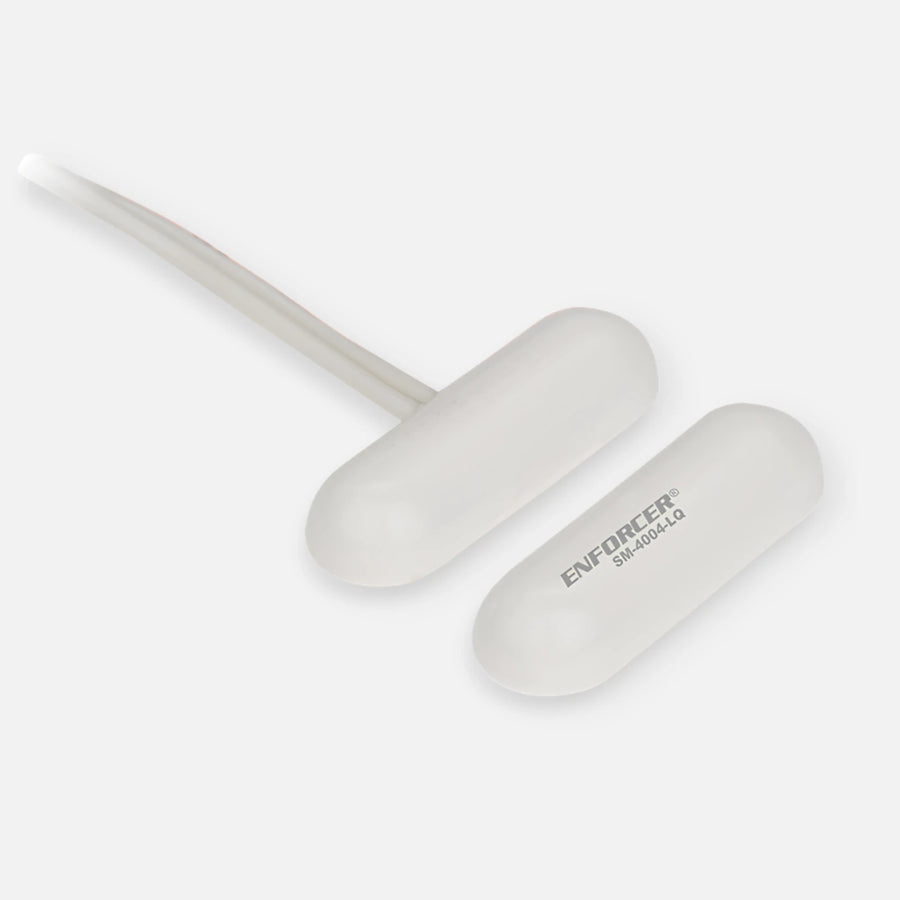

The Seco-Larm SM-4004-LQ/W is a miniature capsule-type surface-mount magnetic contact for closed loop alarm circuits. It has a 3/4 in (19 mm) operating gap, a rare-earth neodymium magnet and 18 in (46 cm) leads from the center of the switch.

The switch and magnet each measure 1 x 3/8 x 1/4 in (25 x 10 x 6 mm) in a white high-impact ABS case and mount with the included double-sided tape. Contacts use ruthenium on gold underplating and are rated 1.0 A at 10 VDC max and 10 W max, with 50 million switch cycles.

Seco-Larm also offers the SM-4004-TQ/W with gold-plated screw terminals and a 1 in (25 mm) gap.

  • Best for: adhesive-mounted contact points where a small capsule-type contact is wanted.
  • System fit: closed loop (N.C. loop) zone inputs on alarm control panels.
  • Important to know: mounting is adhesive with the included double-sided tape; clean the surfaces before mounting.

Why teams choose it

Built for secure sites

  • Compact capsule

    1 x 3/8 x 1/4 in switch and magnet.

  • Strong small magnet

    rare-earth neodymium magnet with a 3/4 in gap.

  • Fast install

    double-sided tape is included for adhesive mounting.

  • Long contact life

    ruthenium on gold underplated contacts rated for 50 million cycles.

Specifications

Technical specifications

General
Brand Seco-Larm
Model SM-4004-LQ/W
Device Type Capsule-type surface-mount magnetic contact
Loop Type Closed loop
Switch Type Reed switch, SPST, N.O.
Operating Gap 3/4 in (19 mm)
Connection 18 in (46 cm) leads from center
Included Double-sided tape
Electrical
Contact Rating 1.0 A at 10 VDC max; 10 W max
Contacts Ruthenium on gold underplating
Switch Cycles 50 million (0.1 mA at 5 VDC)
Physical
Mount Type Surface, adhesive
Color White
Case High-impact ABS plastic
Dimensions Switch and magnet each 1 x 3/8 x 1/4 in (25 x 10 x 6 mm)
Magnet Type Rare-earth neodymium
Environmental
Operating Temperature -15 to 160 F (-25 to 70 C)
