Seco-Larm SS-090-2H4 High-Security Tubular Key Lock

Seco-Larm · Intrusion & Alarm

Seco-Larm SS-090-2H4 Tubular Key Lock Switch, Shunt ON/OFF, SPST, Key #1304

Part number / SKU
SS-090-2H4
$23.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

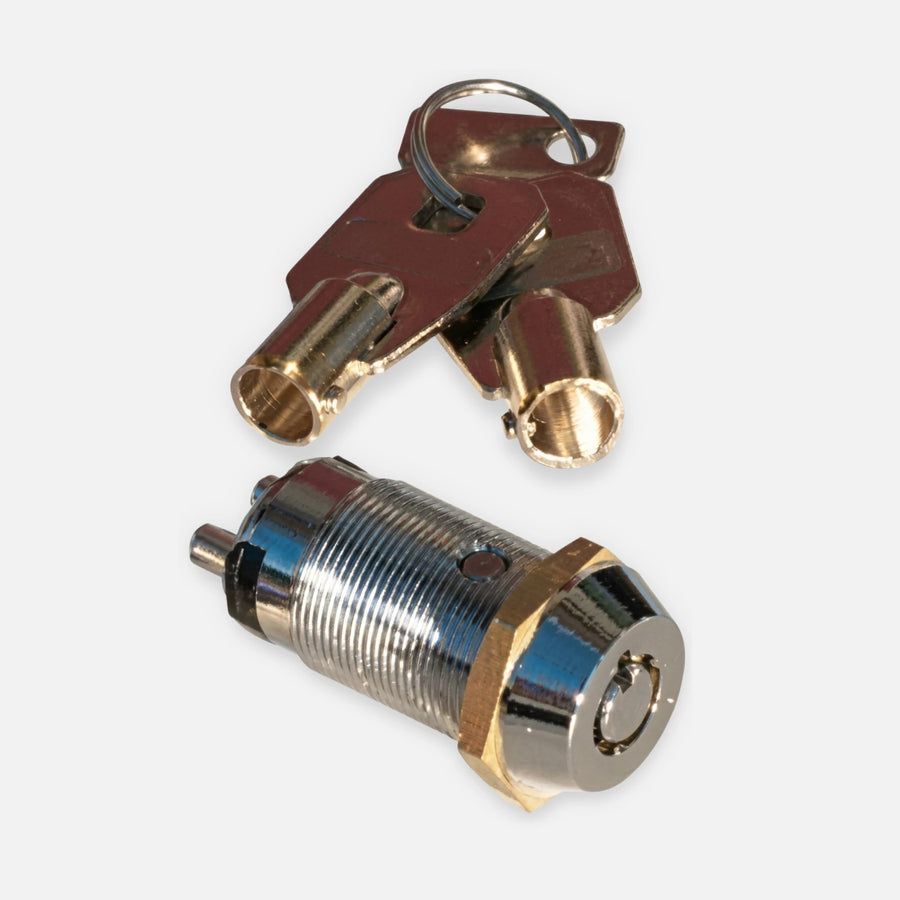

The Seco-Larm SS-090-2H4 is a high-security tubular key lock switch with maintained shunt ON/OFF action. It is a two-terminal SPST switch keyed to key number 1304, and the key can be removed in both the ON and OFF positions.

The contact is rated 2 A at 12 VDC, and the round terminals accept solder or crimp connections. The housing is chrome-plated zinc alloy on a heat-resistant fiber-bakelite base, and the silver-plated contacts have an anti-sulfurating treatment and silicone coating. Seco-Larm uses a patented see-saw contact design that self-adjusts and a patented pick-proof construction.

Seco-Larm offers the SS-199Q slimline plate and SS-299Q single-gang plate, each with a 3/4 in (19 mm) D hole, for mounting this switch, and the SS-090KN-4 spare key for this key number.

  • Best for: keyed shunt ON/OFF switching on alarm system circuits.
  • System fit: low-voltage inputs that take a maintained SPST contact within 2 A at 12 VDC.
  • Important to know: this switch is keyed to #1304; the matching spare key is SS-090KN-4.

Why teams choose it

Built for secure sites

  • Maintained action

    stays in the ON or OFF position, with key removal in either.

  • Pick resistant

    patented pick-proof tubular lock construction.

  • Self-adjusting contact

    patented see-saw design keeps the contact aligned.

  • Durable contacts

    silver-plated, anti-sulfurating treatment and silicone coating.

Specifications

Technical specifications

General
Brand Seco-Larm
Model SS-090-2H4
Device Type Tubular key lock switch
Function Shunt ON/OFF, maintained
Key Removal ON and OFF positions
Key Number #1304
Switch Type SPST, 2 terminals
Terminals Round, solder or crimp
Electrical
Contact Rating 2 A at 12 VDC
Contacts Silver-plated, anti-sulfurating treatment, silicone coated
Physical
Housing Chrome-plated zinc alloy
Base Fiber-bakelite, heat resistant
Mounting Plates SS-199Q slimline plate or SS-299Q single-gang plate (3/4 in D hole)
