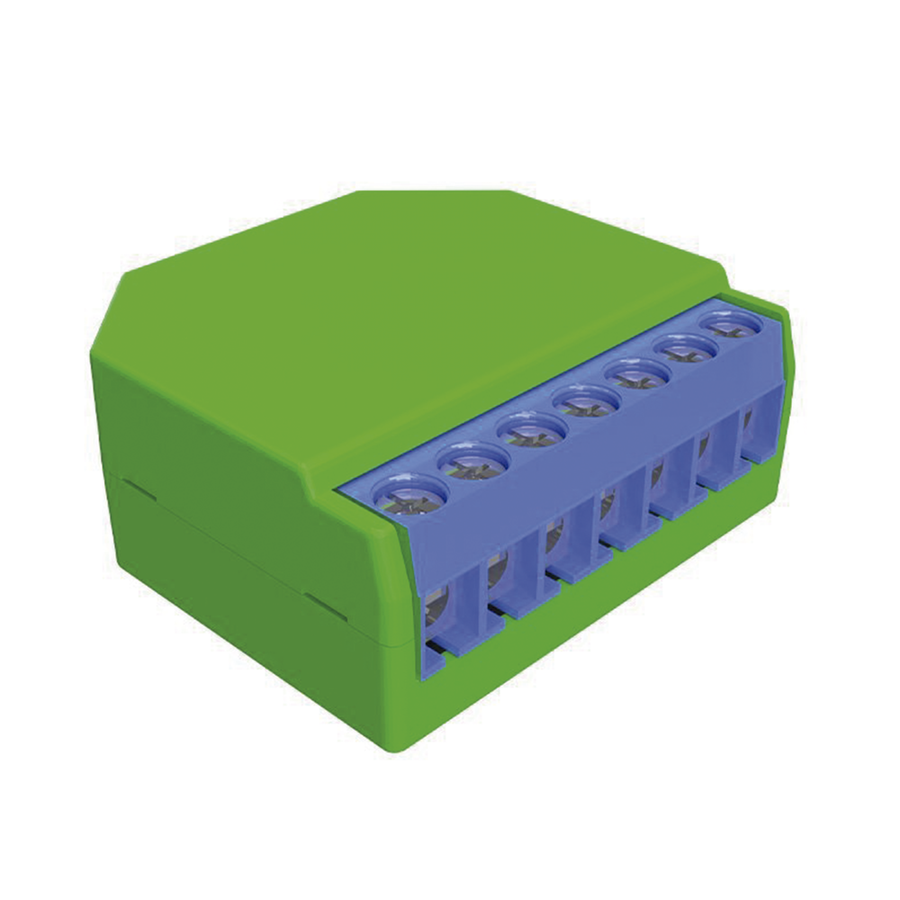

Shelly SHELLYDIMMER2 Wi-Fi Smart Dimmer 200W LED Incandescent Halogen
- EhubAmerica SKU
- SHELLYDIMMER2
$44.86
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Dimming without neutral wire (necessary to consider minimum load of 20W)
PRODUCT TYPE
Networking Accessories
KEY FEATURES
- Direct WiFi Connection Without Additional Hub Required
- Universal Voltage 110-240V, 50/60Hz Operation
- Built-in Temperature Sensor for Overheating Protection
- Compatible With Alexa, Google Assistant, iOS and Android
- Remote Control From Anywhere Via Mobile Application
- Power Consumption Meter for Energy Monitoring
TECHNICAL SPECIFICATIONS
- Brand: Shelly
- Model: SHELLYDIMMER2
- Product Type: Networking Accessories
- Feature Shelly Dimmer
- Intelligent On/Off/Dimming ✓
- Power Supply: 200-240V ±10, 50Hz AC ✓
- Power Supply: 110-240V ±10, 50/60Hz AC ✓
- Working without neutral line X
- Has an integrated power meter. ✓
- Power consumption: <1.5W ✓
- Operational temperature: -0 to +35 °C ✓
- Dimensions (LxWxH): 42 x 36 x 14 mm ✓
- Operational current: 0.25-1.1A ✓
- Device temperature protection: 105°C ✓
- Incandescent and halogen light sources: 10-220W ✓
- Dimmable LED: 50-200VA / 10W – 200W ✓
- Resistive-inductive loads ferromagnetic transformers: 50-150VA ✓
- Complies with the following EU standards:
- - RE Directive 2014/53/EU
- - LVD 2006/95/WE
- - EMC 2004/108/WE
- - RoHS2 2011/65/UE ✓
- Minimum mounting opening: Ø ≥ 50mm ✓
- Radio signal power: 1mW ✓
- Wireless/WiFi Protocol: 802.11 b/g/n ✓
- Radiofrequency: 2400 – 2500 MHz ✓
- Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials) ✓
- Microprocessor control ✓
- Overload and temperature protection ✓
- Can connect to any Wi-Fi network or can operate as an Access Point ✓
- Controlled via WiFi and a mobile phone, computer, automation system or any other device supporting HTTP and/or UDP protocol and or MQTT. ✓
- Can be operated along with momentary keys or push-button switches ✓
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Shelly |
| Model | SHELLYDIMMER2 |
| Product Name | Wi-Fi Smart Dimmer 200W LED Incandescent Halogen |
| Channels | 1 |
| Hub Required | No |
| Physical | |
| Dimensions | 42mm x 36mm x 14mm |
| Power & Electrical | |
| Input Voltage | 110-230V, 50/60Hz |
| LED Dimming Capacity | 50-200VA / 10W – 200W |
| Incandescent/Halogen Dimming | 10-220W |
| Resistive-Inductive Load (Ferromagnetic Transformers) | 50-150VA |
| Consumption Current | <1W |
| Minimum Load (Without Neutral Wire) | 20W |
| Wireless / RF | |
| Wi-Fi Standard | 2.4GHz |
| Hub Required | No |
| Environmental | |
| Operating Temperature | 0 to +40°C |
| Overheating Protection | Yes (internal temperature sensor) |
| Compatibility | |
| Compatible Platforms | Android, iOS, Amazon Alexa, Google Assistant |
