SHELLY

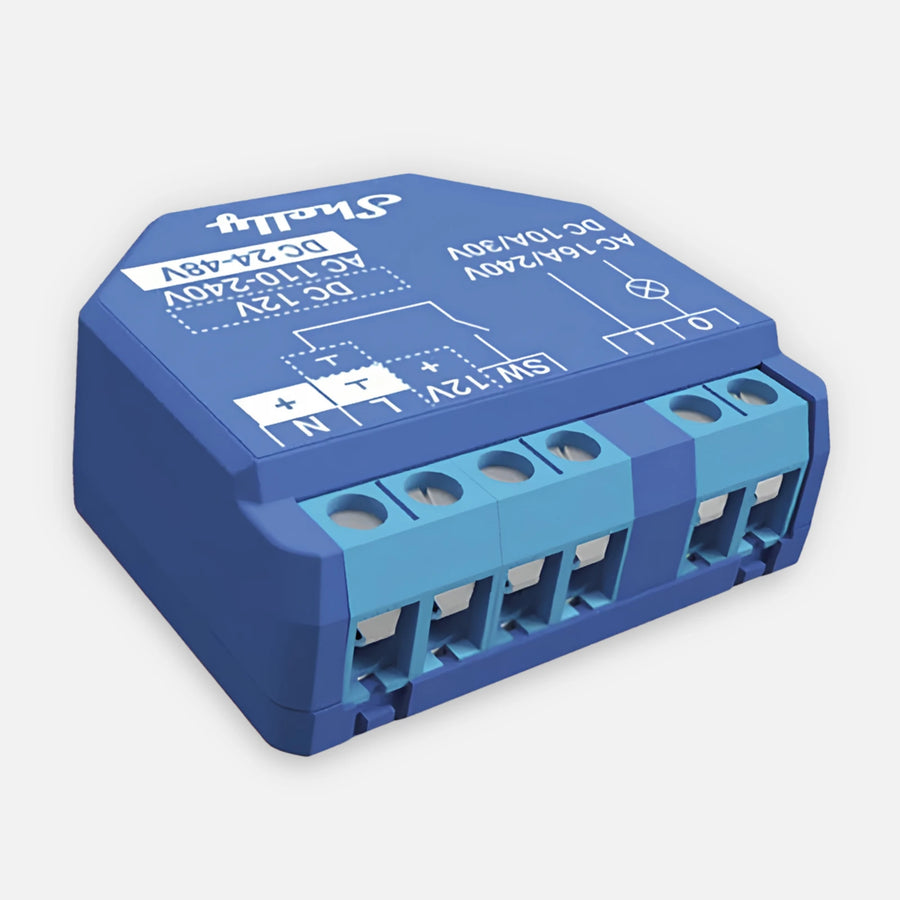

Shelly SHELLYPLUS1UL Smart Relay 1-Channel 15A Wi-Fi Bluetooth
Lead time confirmed after order.
- Product availability confirmed before fulfillment.
- Support in English, Spanish and Portuguese.
- 30-day returns and RMA support.
Product details
PRODUCT OVERVIEW
UL-certified WiFi-operated smart relay with 1-channel control, dry contacts, Bluetooth connectivity, and 15A load support. Designed for smart automation of lighting, appliances, and electrical systems.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• UL-certified smart relay module
• 1-channel relay control
• Supports loads up to 15A
• WiFi-operated smart automation device
• Dry contact support
• ESP32 processor platform
• MQTT and WSS support
• TLS and custom certificate support
• Bluetooth connectivity
• Compatible with Shelly app and supported voice assistants
• Designed for installation behind wall switches and outlets
• Supports smart automation for lighting, garage doors, irrigation systems, fans, heaters, sockets, and LED strips
• Retrofit installation design
• Device temperature protection
• Compact enclosure for standard electrical boxes
TECHNICAL SPECIFICATIONS
• Model: SHELLYPLUS1UL
• Brand: Shelly
• Device Type: Smart Relay
• Channels: 1 Channel
• Maximum Load: 15A
• AC Power Supply: 110-230V ±10%, 50/60Hz
• DC Power Supply: 24-240V DC / 12V stabilized
• Wireless Standard: Wi-Fi 802.11 b/g/n
• Bluetooth: Yes
• Wi-Fi Range: Up to 50 m outdoors and up to 30 m indoors
• Dry Contacts: Yes
• Device Temperature Protection: Yes
• Dimensions: 42 x 38 x 17 mm
INTENDED USE / APPLICATIONS
• Smart home automation
• Lighting control systems
• Garage door automation
• Irrigation system control
• Bathroom fan automation
• Appliance and power circuit control
• Security system integration
