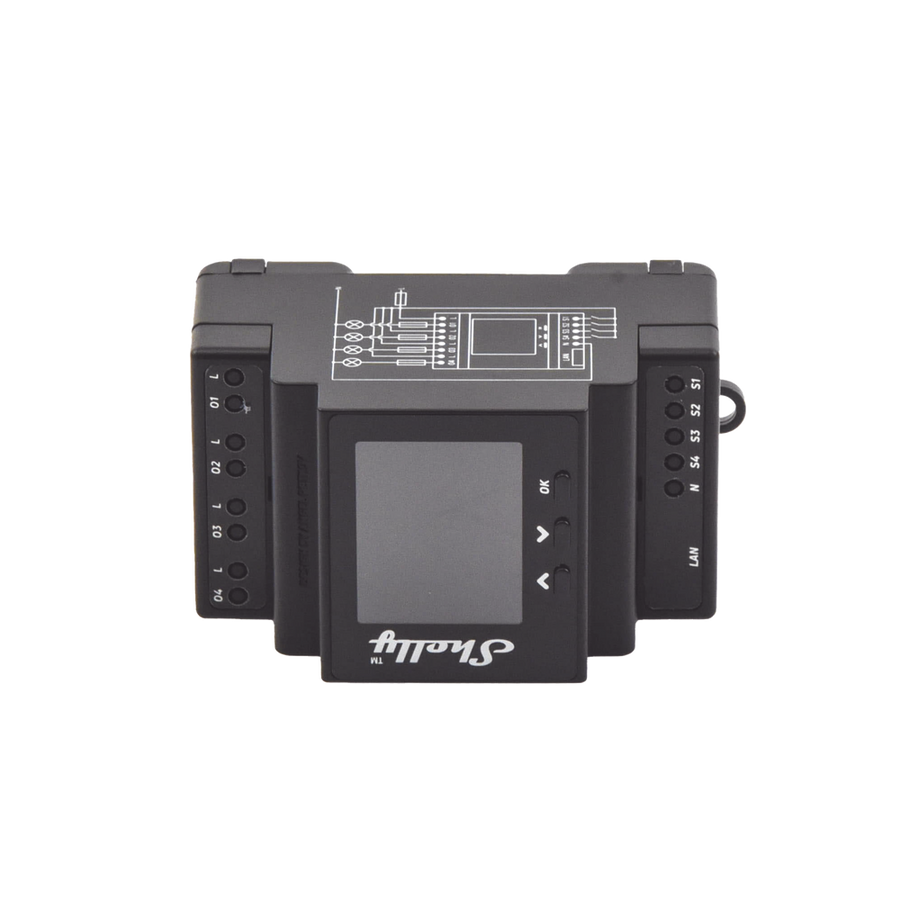

Shelly SHELLYPRO4PM 4-Channel 16A Smart Relay WiFi LAN Bluetooth DIN Rail
- EhubAmerica SKU
- SHELLYPRO4PM
$100.63
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Professional 4 channels relay with Wi-Fi, LAN, and Bluetooth connection, suitable for home and facility automation with remote control and precise power management
PRODUCT TYPE
Networking Accessories
KEY FEATURES
- No Hub Required for Direct WiFi and Ethernet Connectivity
- Built-in 2.4 GHz WiFi and Bluetooth for Easy Setup
- 1.8" Color Display With Navigation Keys for Local Control
- Power Consumption Measurement for Energy Monitoring
- Overload and Temperature Protection for Enhanced Safety
- Compatible With Major Home Automation Platforms and Systems
TECHNICAL SPECIFICATIONS
- Brand: Shelly
- Model: SHELLYPRO4PM
- Product Type: Power Supplies & UPS
- LAN, Wi-Fi, and Bluetooth connection
- 4 outputs, 16A each. Total device maximum of 40A
- Precise power metering
- Overpower and overvoltage protection of the load.
- DIN rail mountable
- 1.8-inch color screen with navigation keys
- Power supply AC: 110-230V ±10%, 50/60Hz
- Channels: 4
- Maximum load: up to 16A per channel with up to 40A for the whole device
- Operational temperature: -20°C to + 40°C
- Current consumption: < 1 W
- Dimensions: 3.54" x 2.1" x 2.4" (90 mm x 52 mm x 57 mm)
- Power supply DC: No
- Roller shutter mode: No
- Device temperature protection: Yes
- Overload protection: Yes
- Power measurement: Yes
- HTTP/HTTPS Webhooks: Yes
- Custom scripts (mJs): Yes
- Sunrise/Sunset & Weekly Schedule: Yes
- UL Listed option: No
- Wireless: Yes, 802.11 b / g / n, 2412 - 2484 MHz, 1mw
- Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
- Bluetooth: Yes
- Ethernet: Yes
- No Hub Required for Direct WiFi and Ethernet Connectivity
- Built-in 2.4 GHz WiFi and Bluetooth for Easy Setup
- 1.8" Color Display With Navigation Keys for Local Control
- Power Consumption Measurement for Energy Monitoring
INTENDED USE / APPLICATIONS
- Backup, off-grid, or distributed power systems
- Telecommunications and network equipment
- Professional installations requiring compatible power specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | SHELLYPRO4PM |
| Brand | Shelly |
| Product Type | 4-Channel Smart Relay |
| Connection | Wi-Fi, LAN, Bluetooth |
| Mounting | DIN rail mountable |
| Display | 1.8-inch color screen with navigation keys |
| Physical | |
| Dimensions | 90 mm × 52 mm × 57 mm (3.54" × 2.1" × 2.4") |
| Power & Electrical | |
| Power Supply | AC 110-230V ±10%, 50/60Hz |
| Channels | 4 |
| Maximum Load per Channel | 16A |
| Total Device Maximum Load | 40A |
| Current Consumption | <1 W |
| Operational Temperature | -20°C to +40°C |
| Device Temperature Protection | Yes |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Power Measurement | Yes |
| Wireless / RF | |
| Wi-Fi Standard | 802.11 b/g/n |
| Wi-Fi Frequency | 2412–2484 MHz |
| Wi-Fi Transmit Power | 1 mW |
| Wi-Fi Range (Outdoor) | Up to 50 m |
| Wi-Fi Range (Indoor) | Up to 30 m |
| Bluetooth | Yes |
| Networking & Connectivity | |
| Ethernet | Yes |
| HTTP/HTTPS Webhooks | Yes |
| Custom Scripts (mJs) | Yes |
| Sunrise/Sunset & Weekly Schedule | Yes |
