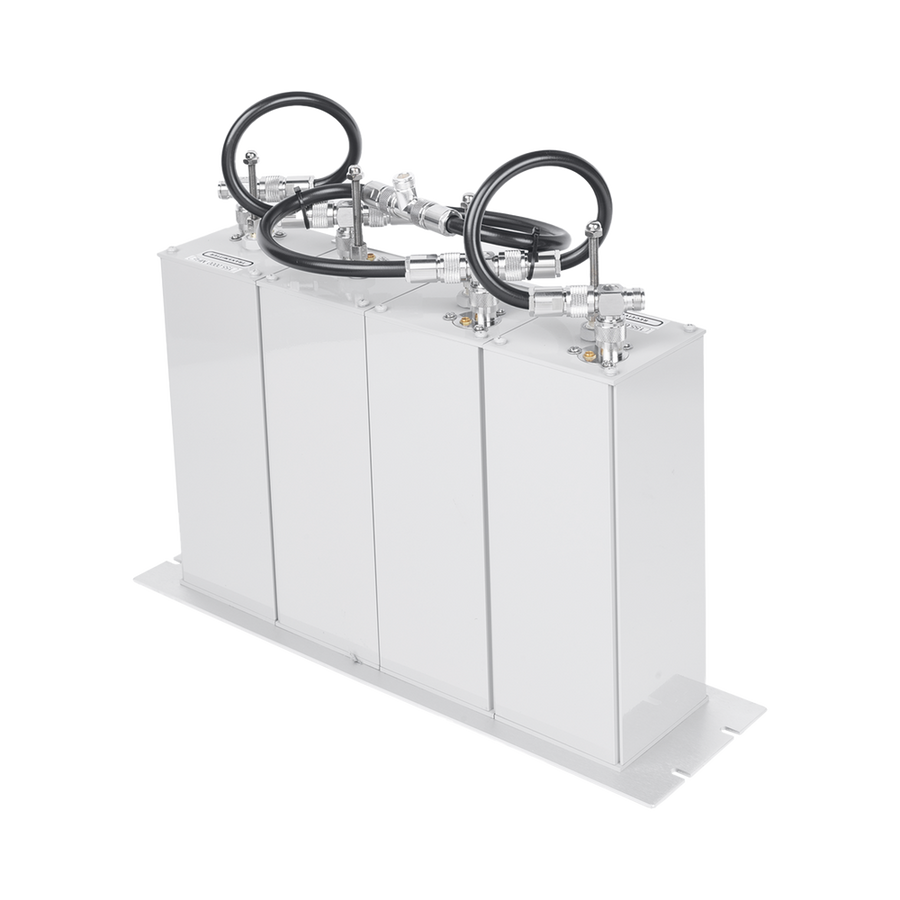

Telewave TPRD-1544C VHF Duplexer 148-174 MHz 350W 70dB Isolation

PRODUCT OVERVIEW

VHF Compact Band pass / Band Reject Duplexer, 148-174 MHz.

PRODUCT TYPE

RF Accessories

KEY FEATURES

• 70 dB Isolation at 600 kHz for Superior Signal Separation
• Compact Design 30% Smaller Than Previous Models
• 350 Watt Maximum Power Handling for High-Power Applications
• 4 Cavity Construction With 4" per Side Dimensions
• 1.5:1 Maximum VSWR for Optimal Impedance Matching
• Rack Mountable 5.25" Height for Standard 19" Enclosures

TECHNICAL SPECIFICATIONS

• Brand: Telewave
• Model: TPRD-1544C
• Product Type: Networking Accessories
• The TPRD-1544C 1544CM produce high performance in a compact design for the 148-174 MHz VHF band.
• These duplexers are less than 30% of the size of earlier models, and deliver greater isolation and power handling.
• Frequency Band: 148-174 MHz.
• Cavities: 4 (4 in by side).
• TX-RX Separation (Min.): 600 kHz.
• Insertion Loss: 1.5 dB.
• Isolation: 70 dB (@ 600 kHz).
• VSWR (max.): 1.5:1
• Input Power: 350 W.
• Dimensions (HWD): 5.25 x 19 x 15 in.
• Weight: 18.25 ib.
• 70 dB Isolation at 600 kHz for Superior Signal Separation
• Compact Design 30% Smaller Than Previous Models
• 350 Watt Maximum Power Handling for High-Power Applications
• 4 Cavity Construction With 4" per Side Dimensions
• 1.5:1 Maximum VSWR for Optimal Impedance Matching
• Rack Mountable 5.25" Height for Standard 19" Enclosures
