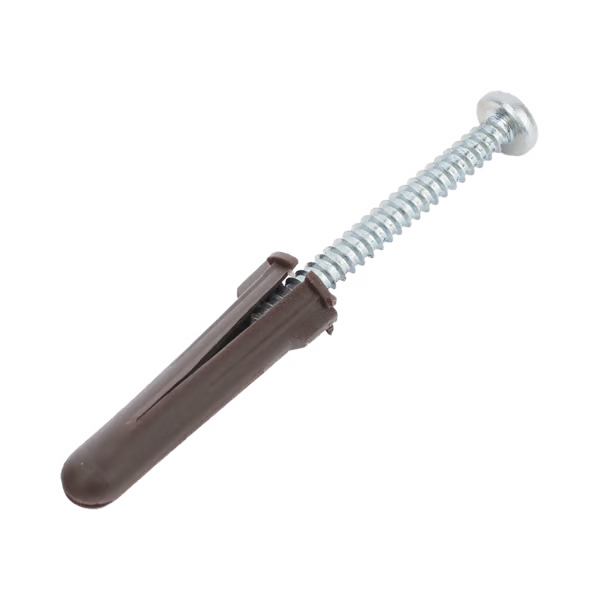

Thorsman TP-2B-KIT 4-Point Plastic Anchors 265lb Concrete Hold (Pack of 5)
- EhubAmerica SKU
- TP-2B-KIT
$18.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Raw plugs for attaching screw objects to concrete walls and ceilings or solid surfaces.Performs a double expansion, ie open to the four cardinal points
PRODUCT TYPE
Networking Cable
KEY FEATURES
- 4-Point Double Expansion for Maximum Holding Power
- Supports 265 lb in Concrete, 154 lb in Masonry
- Extraction Resistance 176 lb in Concrete, 88 lb in Masonry
- High-Density Polyethylene Flexible and Impact Resistant
- Operating Temperature Range -58°F to 176°F
- Anti-Sink Collar Prevents Deep Hole Sinking
TECHNICAL SPECIFICATIONS
- Brand: Thorsman
- Model: TP-2B-KIT
- Product Type: Networking Accessories
- Raw plugs for attaching screw objects to concrete walls and ceilings or solid surfaces.Performs a double expansion, ie open to the four cardinal points
- Consists of 2 fins that do not allow the plug to rotate into the hole when the screw is inserted
- It has a collar that prevents the cap from sinking, even when the piercing is deeper
- Has a guide that allows the screw to be inserted correctly
- Prevents double expansion, test with No. 10 x 1 3/4“ (44.5mm) screw
- Operating temperatures -50ºC to +80ºC
- Recommended charge: 120 kg in concrete / 70 kg in partition wall
- Resistance to extraction: 80 kg in concrete / 40 kg in partition wall
- Color: anchor brown, screw Natural
- Anchor elaborated with high-density polyethylene
- Flexible
- Galvanized steel screw
- Resistant to impact and extraction​
- 4-Point Double Expansion for Maximum Holding Power
- Supports 265 lb in Concrete, 154 lb in Masonry
- Extraction Resistance 176 lb in Concrete, 88 lb in Masonry
- High-Density Polyethylene Flexible and Impact Resistant
- Operating Temperature Range -58°F to 176°F
- Anti-Sink Collar Prevents Deep Hole Sinking
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Thorsman |
| SKU | TP-2B-KIT |
| Product Type | 4-Point Plastic Anchors |
| Material (Anchor) | High-density polyethylene |
| Material (Screw) | Galvanized steel |
| Color | Anchor brown, screw natural |
| Physical | |
| Anchor Design | 4-Point double expansion |
| Compatible Screw Size | No. 10 x 1 3/4" (44.5mm) |
| Features | Anti-rotation fins, anti-sink collar, screw guide |
| Environmental | |
| Operating Temperature Range | -50°C to +80°C (-58°F to +176°F) |
| Compatibility | |
| Recommended Load (Concrete) | 120 kg / 265 lb |
| Recommended Load (Partition Wall) | 70 kg / 154 lb |
| Extraction Resistance (Concrete) | 80 kg / 176 lb |
| Extraction Resistance (Partition Wall) | 40 kg / 88 lb |
| Suitable Surfaces | Concrete walls, concrete ceilings, solid surfaces, masonry |
