Thorsman · Connectors and Adapters

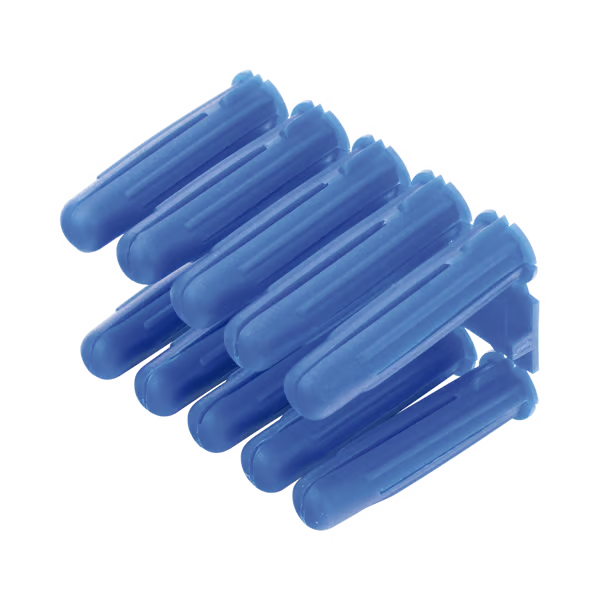

Thorsman TP-3-10PK (10-Pack) Blue Wall Plug 3/8" Double Expansion
- EhubAmerica SKU
- TP-3-10PK
$17.44
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Performs a double expansion, ie open to the four cardinal points
PRODUCT TYPE
Connectors and Adapters
KEY FEATURES
- Four-Way Double Expansion for Maximum Holding Power
- Anti-Rotation Fins Prevent Anchor Spinning During Installation
- Neck Design Prevents Deep Sinking in Oversized Holes
- Burr-Free Construction Ensures Complete Expansion
- 220 lb Extraction Resistance in Concrete Applications
- 308 lb Recommended Load Capacity for Heavy-Duty Mounting
TECHNICAL SPECIFICATIONS
- Brand: Thorsman
- Model: TP-3-10PK
- Product Type: Networking Accessories
- Performs a double expansion, ie open to the four cardinal points
- Consists of 2 fins that do not allow the plug to rotate into the hole when the screw is inserted
- It has a collar that prevents the cap from sinking, even when the piercing is deeper
- Has a guide that allows the screw to be inserted correctly
- Prevents double expansion, test with No. 12 x 2“ (50.8 mm) screw
- Operating temperatures -50ºC to +80ºC
- Recommended charge: 140 kg in concrete
- Resistance to extraction: 100 kg in concrete
- Color: Blue wall plug, natural screw
- Wall plug elaborated with high-density polyethylene
- Flexible
- Galvanized steel screw
- Resistant to impact and extraction
- Four-Way Double Expansion for Maximum Holding Power
- Anti-Rotation Fins Prevent Anchor Spinning During Installation
- Neck Design Prevents Deep Sinking in Oversized Holes
- Burr-Free Construction Ensures Complete Expansion
- 220 lb Extraction Resistance in Concrete Applications
- 308 lb Recommended Load Capacity for Heavy-Duty Mounting
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Type | Wall Plug with Double Expansion |
| Brand | Thorsman |
| SKU | TP-3-10PK |
| Quantity | 10-Pack |
| Hole Size | 3/8" |
| Physical | |
| Material (Plug) | High-density polyethylene |
| Material (Screw) | Galvanized steel |
| Color | Blue plug with natural screw |
| Dimensions | 3/8" (specific length not stated in source) |
| Environmental | |
| Operating Temperature Range | -50°C to +80°C |
| Recommended Load Capacity | 140 kg (308 lb) in concrete |
| Extraction Resistance | 100 kg (220 lb) in concrete |
| Compatibility | |
| Tested Screw Size | No. 12 x 2" (50.8 mm) |
