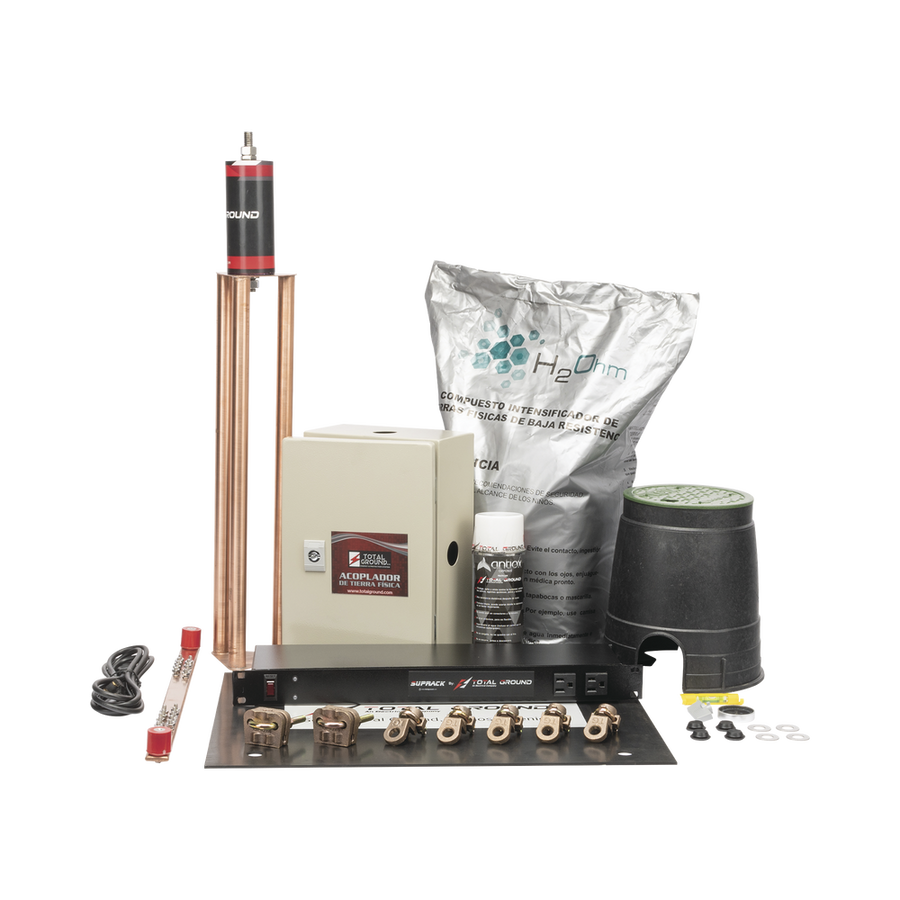

Total Ground KIT-MASTER-TG-SITE 45A Grounding Electrode Kit NEMA 4
- EhubAmerica SKU
- KIT-MASTER-TG-SITE
$994.17
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
TOTAL GROUND grounding electrode model TG-45K. Made of highly conductive electrolytic copper, specially treated to retard the effects of corrosion. Filtering device includes low frequency CSF with coupling to 1/2'' mass. It contains coupling coil for residential or low electrical activity facilities.
PRODUCT TYPE
Power Supplies & UPS
KEY FEATURES
- Electrolytic Copper Electrode With High Conductivity and Anti-Corrosion Treatment
- Organic H2Ohm Soil Enhancer for Permanent Low Resistance Installation
- 900A NEMA 4 Rated Impedance Coupler for Robust Protection
- Complete Kit Includes Rack Mount Ground Bar and Surge Suppressor
- Magnetic Electrode With Built-In Compass and Level for Professional Alignment
- Maintenance-Free Installation for up to 20 Years of Reliable Operation
TECHNICAL SPECIFICATIONS
- Brand: Total
- Model: KIT-MASTER-TG-SITE
- Product Type: Networking Accessories
- Electrolytic Copper Electrode With High Conductivity and Anti-Corrosion Treatment
- Organic H2Ohm Soil Enhancer for Permanent Low Resistance Installation
- 900A NEMA 4 Rated Impedance Coupler for Robust Protection
- Complete Kit Includes Rack Mount Ground Bar and Surge Suppressor
- Magnetic Electrode With Built-In Compass and Level for Professional Alignment
- Maintenance-Free Installation for up to 20 Years of Reliable Operation
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product | Total Ground KIT-MASTER-TG-SITE Grounding system and Transient Peak Surge |
| Brand | Total Ground |
| SKU | KIT-MASTER-TG-SITE |
| Measuring Unit | Kit |
| Physical | |
| Weight | 19.4 kg |
| Packing Dimensions | 87 × 35.5 × 26.5 cm |
| Electrode Dimensions | 50 × 151.5 cm |
| Filter CSF Dimensions | 14 × 5 cm |
| Coupler Dimensions | 30 × 20 × 12 cm |
| H2Ohm Compound Weight | 11 kg |
| Power & Electrical | |
| Maximum Capacity | 45 A |
| Coupler Capacity | 900 A |
| Coupler Model | TGC01 |
| Coupler Enclosure Rating | NEMA 4 |
| Electrode Material | Electrolytic copper with anti-corrosion treatment |
| Coupling | 1/2'' mass |
| Standards Compliance | NOM-001-SEDE 2005 ART 250-81 |
| Environmental | |
| Compound | H2Ohm organic base with coagulant hygroscopic material |
| Certifications | LAPEM test certificate; laboratory certified by EMA (Mexican Accreditation Entity) |
| Environmental Standard | CRETIB (no toxicity or environmental damage) |
| Compatibility | |
| Electrode Model | TG-45K |
| Recommended Applications | Database sites, Transformers, Telecommunications racks, Satellite systems, Radio frequency systems, Industrial control systems |
| In the Box | |
| 1 Electrode (TG-45K) | 50 × 151.5 cm |
| 1 Filter CSF | 14 × 5 cm |
| 1 Impedance Coupler (TGC01) | 30 × 20 × 12 cm |
| 1 H2Ohm Compound | 11 kg |
