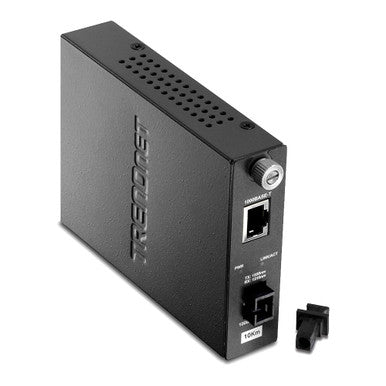

Trendnet TFC-1000S10D5 1000Base-T to 1000Base-FX Single-Fiber Media Converter

PRODUCT OVERVIEW

TFC-1000S10D3 or TFC-1000S10D5 Bi-Directional Single-Fiber Media Converter transforms 1000Base-TX UTP/STP media to 1000Base-FX media and vice versa. It provides DIP switch for duplex mode, auto negotiation or speed management control. This converter will give your Switch/Hub the ability to interface with fiber connection over a distance up to 10 km.

PRODUCT TYPE

Transceivers

KEY FEATURES

• Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX Standards
• Provides Dip Switch for Fiber (Auto/Manual), LLR (Enable/Disable)
• Support LLCF (Link Loss Carry Forward, Link Pass Through)
• Supports LLR (Link Loss Return) for FX Port
• Supports Full-Duplex and Auto-Negotiation Mode for Fiber Port
• Hot Pluggable & Wall-Mountable
• Optional 19” System Chassis (TFC-1600) holds up to 16 Media Converters
• Technical Description
• Standart: IEEE 802.3ab 1000Base-T • IEEE 802.3z 100Base-TX, 1000Base-FX
• Network Media:
• 100Base-T: UTP Cat 5, EIA/TIA-568 100-ohm STP, up to 100 meters
• 100Base-LX: 10/125um Single-Fiber Optic Cable, up to 10km
• Protocol: CSMA/CD
• Ports: 1 x 1000Base-T RJ-45 Port
• 1 x 1000Base-FX Single-Fiber Bi-Directional Port SC Connector
• Dip Switch:
• TX: Duplex Mode, Auto Negotiation or Manual, Speed, LLCF (enable/disable)
• FX: Duplex Mode, LLR (enable/disable), LLCF

TECHNICAL SPECIFICATIONS

• Brand: Trendnet
• Model: TFC-1000S10D5
• Product Type: Networking Accessories
• Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX Standards
• Provides Dip Switch for Fiber (Auto/Manual), LLR (Enable/Disable)
• Support LLCF (Link Loss Carry Forward, Link Pass Through)
• Supports LLR (Link Loss Return) for FX Port
• Supports Full-Duplex and Auto-Negotiation Mode for Fiber Port
• Hot Pluggable & Wall-Mountable
• Optional 19” System Chassis (TFC-1600) holds up to 16 Media Converters
• Standart: IEEE 802.3ab 1000Base-T • IEEE 802.3z 100Base-TX, 1000Base-FX
• Network Media: 100Base-T: UTP Cat 5, EIA/TIA-568 100-ohm STP, up to 100 meters
• 100Base-LX: 10/125um Single-Fiber Optic Cable, up to 10km
• Protocol: CSMA/CD
• Ports: 1 x 1000Base-T RJ-45 Port
• 1 x 1000Base-FX Single-Fiber Bi-Directional Port SC Connector
• Dip Switch: TX: Duplex Mode, Auto Negotiation or Manual, Speed, LLCF (enable/disable)
• FX: Duplex Mode, LLR (enable/disable), LLCF
• Transfer Rate: 1000Base-T : 2000Mbps (Full Duplex)
• Diagnostic LED: Per Unit: Power
• Per Port: Link/Activity
• Power Adapter: 7.5V DC, 1.5A External Power Adapter
• Power Consumption: 5.5 watts (max)
• Dimensions: 120 x 88 x 25mm (4.7 x 3.46 x 0.98 inches)
• Weight: 354g (12.5oz)
• Temperature: Operating: 0° ~ 40° C (32° ~ 104° F)
• Storage: -25° ~ 70° C (-13° ~ 158° F)
• Humidity: 5% ~ 90% RH
• Safety Emissions: FCC,CE
• Package Contents: TFC-1000S10D3/D5
• Power Adapter
• User’s Guide

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
