Tycon PS24V-3.75 90W 24VDC 3.75A Power Adapter 5.5/2.1mm
- EhubAmerica SKU
- PS24V-3.75
- 1.2m (48")
- 24 VDC ±1V
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

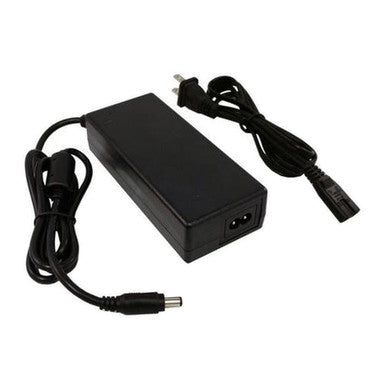

Tycon PS24V-3.75 is a 90W desktop switching power supply providing 24VDC at 3.75A from 90–264VAC input, with a center-positive 5.5/2.1mm DC barrel connector and short-circuit and over-current protection.
PRODUCT TYPE
Power Adapters & Chargers
KEY FEATURES
• Desktop switching power supply
• 24VDC output at 3.75A continuous load
• Maximum power output of 90W
• Auto-ranging 90–264VAC input
• Industrial operating temperature rating
• Compact high-power design
• Removable 2-prong AC power cord
• Short-circuit and over-current protection
• Center-positive 5.5 x 2.1mm DC barrel connector
• 1.2 m / 48 in. DC output cable
• Designed for indoor DC power applications
• Designed for outdoor environments when installed inside a weatherproof enclosure
• UL, CE, FCC, and RoHS certifications/compliance
TECHNICAL SPECIFICATIONS
• Model: PS24V-3.75
• Product Type: Switching Power Supply
• Input Operating Range: 90–264VAC, 47/63Hz
• Output Voltage: 24VDC ±1V
• Continuous Load Current: 3.75A
• Maximum Power: 90W
• Maximum Input In-Rush Current: 50A
• Maximum Input Current: 1.5A
• Maximum Static Power Consumption: 0.5W
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple and Noise: 240mVp-p maximum
• Efficiency: 80% minimum
• Dielectric Strength: 3000V rms / 50Hz, 3 sec., 5mA maximum
• Insulation Resistance: 50MΩ minimum at 500VDC
• Protection: Short circuit and over-current
• DC Connector: 5.5 x 2.1 x 11mm barrel connector, center positive
• DC Cable Length: 1.2 m / 48 in.
• Operating Temperature: -20°C to +60°C / -4°F to +140°F
• Operating Humidity: 90% non-condensing
• Storage Temperature: -40°C to +80°C / -40°F to +176°F
• Dimensions: 140 x 60 x 34 mm / 5.5 x 2.4 x 1.3 in.
• Weight: 435 g / 15 oz.
• Certifications: UL, CE, FCC, RoHS
• MTBF: 50,000 hours minimum
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Wireless access points and client devices
• IP phone systems
• Security camera systems
• Indoor DC power applications
• Outdoor applications when installed inside a weatherproof enclosure
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon Power Systems |
| Model | PS24V-3.75 |
| Product Type | 90W Switching Power Supply |
| Maximum Power | 90W |
| Physical | |
| Case Dimensions | 140 x 60 x 34mm (5.5 x 2.4 x 1.3") |
| Weight | 435g (15oz) |
| DC Connector | 5.5/2.1mm DC Barrel (center positive) |
| Cable Length | 1.2m (48") |
| Power & Electrical | |
| Output Voltage | 24 VDC ±1V |
| Continuous Load Current | 3.75A |
| Input Operating Range | 90-264 VAC, 47/63Hz |
| Input Current | 1.5A Max |
| Input In-rush Current | 50A Max |
| Static Power Consumption | 0.5W Max |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple and Noise | 240mVp-p Max |
| Efficiency | 80% Minimum |
| Dielectric Strength | 3000V rms / 50Hz, 3 sec, 5mA Max |
| Insulation Resistance | 50M ohms min at 500VDC |
| Protection | Short Circuit, Over-Current Protection |
| Environmental | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 90% non-condensing |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Compatibility | |
| Certifications | UL, CE, FCC, RoHS |
| MTBF | 50,000 Hours Minimum |
