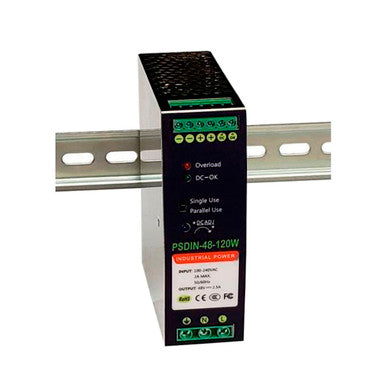

Tycon PSDIN-48-120W 120W 48VDC DIN Rail Industrial Power Supply
- EhubAmerica SKU
- PSDIN-48-120W
- 48VDC nominal, adjustable 47-56VDC
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon PSDIN-48-120W industrial DIN rail power supply accepts 90–264VAC input and provides adjustable 47–56VDC output at up to 2.5A and 120W, with parallel operation support and dry-contact DC alarm output.
PRODUCT TYPE
Power Adapters & Chargers
KEY FEATURES
• Industrial DIN rail mount switching power supply
• 90VAC to 264VAC auto-ranging input
• Nominal 48VDC output
• Adjustable 47VDC to 56VDC output range
• Continuous load current up to 2.5A
• Maximum output power of 120W
• Peak power of 180W for 10 seconds at 220VAC
• Minimum efficiency of 90%
• Supports single and parallel operation
• Dry-contact DC alarm output for monitoring output status
• DC OK relay contact is closed during normal output operation
• DC fault relay contact opens during output fault conditions
• Short-circuit protection
• Over-voltage protection
• Over-current protection
• Over-power protection
• Wide -40°C to +70°C operating temperature range
• Wire terminal input and output connections
TECHNICAL SPECIFICATIONS
• Model: PSDIN-48-120W
• Product Type: Industrial DIN Rail AC-DC Power Supply
• Input Operating Range: 90–264VAC, 47–63Hz
• Maximum Input In-Rush Current: 35A
• Input Current: 2.2A at 115VAC; 1.10A at 230VAC
• Output Voltage: 47–56VDC adjustable
• Nominal Output Voltage: 48VDC
• Continuous Load Current: 2.5A
• Maximum Output Power: 120W
• Peak Power: 180W for 10 seconds at 220VAC
• Line Regulation: ±0.5%
• Load Regulation: ±1%
• Voltage Overshoot: Less than 5%
• Ripple / Noise: 100mV peak
• Efficiency: 90% minimum
• Dielectric Strength: 1500V RMS, 1 minute, 10mA maximum
• Insulation Resistance: 10 MOhms
• Alarm Output: 1A at 30VDC; 0.5A at 125VAC
• Alarm State: DC OK = closed; DC fault = open
• Safety Standards: GB4943 / EN60950-1
• EMI Standards: FCC Part 15 Class B, EN55022, EN55024
• Harmonic Current: EN61000-3-2 Class D
• EMS: EN61000-4-x Level 3 & 4
• Operating Temperature: -40°C to +70°C / -40°F to +158°F
• Operating Humidity: 5% to 95%, non-condensing
• Storage Temperature: -40°C to +85°C / -40°F to +185°F
• MTBF: 200,000 hours
• Maximum Altitude: 2,000 m / 6,562 ft
• Vibration: 10–500Hz, 2G, 10-minute sweep; 20G surge, 11ms
• Dimensions: 135 x 121 x 40 mm / 5.3 x 4.8 x 1.6 in.
• Weight: 0.59 kg / 1.3 lb.
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Powering PoE switches
• IP phone systems
• Security camera systems
• Telecommunications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon Power Systems |
| Model / Part Number | PSDIN-48-120W |
| Product Type | Industrial DIN Rail Mount Switching Power Supply |
| Maximum Output Power | 120W |
| Peak Power (10sec @ 220VAC) | 180W |
| Physical | |
| Dimensions | 135 x 121 x 40mm (5.3 x 4.8 x 1.6") |
| Weight | 0.59 kg (1.3 lb) |
| Power & Electrical | |
| Input Voltage Range | 90-264VAC auto-ranging |
| Input Frequency | 47-63Hz |
| Input In-rush Current | 35A max |
| Input Current @ 115VAC | 2.2A (nominal); 4.4A (peak) |
| Input Current @ 230VAC | 1.10A (nominal); 2.20A (peak) |
| Output Voltage | 48VDC nominal, adjustable 47-56VDC |
| Continuous Load Current | 2.5A |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Voltage Overshoot | <5% |
| Ripple / Noise | 100mV peak |
| Efficiency | 90% minimum |
| Dielectric Strength | 1500V rms, 1 min, 10mA max |
| Insulation Resistance | 10M ohms |
| Protection | Short Circuit, Over-Voltage, Over-Current, Over Power |
| Alarm Output | 1A @ 30VDC, 0.5A @ 125VAC (DC OK = Closed, DC Fault = Open) |
| Parallel Operation | Supported |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Altitude | 2000m (6562ft) |
| Vibration | 10-500Hz 2G 10min sweep, 20G surge 11ms |
| MTBF | 200,000 hrs |
| Compatibility | |
| Safety Standards | GB4943, EN60950-1 |
| EMI Standards | FCC PART 15 CLASS B, EN55022, EN55024 |
| Harmonic Current | EN61000-3-2 Class D |
| EMS | EN61000-4-x Level 3&4 |
