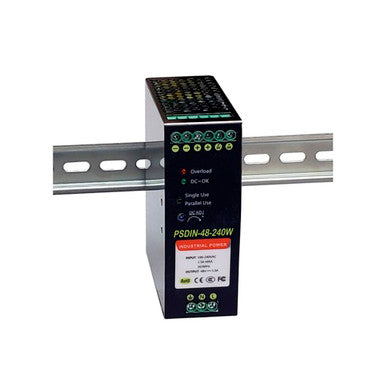

Tycon PSDIN-48-240W 240W 48VDC DIN Rail Industrial Power Adapter
- EhubAmerica SKU
- PSDIN-48-240W
- 48VDC nominal (adjustable 47–56VDC)
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon PSDIN-48-240W industrial DIN rail power supply accepts 90–264VAC input and provides adjustable 47–56VDC output at up to 5A and 240W, with parallel operation support and dry-contact DC alarm output.
PRODUCT TYPE
Power Adapters & Chargers
KEY FEATURES
• Industrial DIN rail mount switching power supply
• 90VAC to 264VAC auto-ranging input
• Nominal 48VDC output
• Adjustable 47VDC to 56VDC output range
• Continuous load current up to 5A
• Maximum output power of 240W
• Peak power of 360W for 10 seconds at 220VAC
• Minimum efficiency of 90%
• Supports single and parallel operation
• Two 240W units operating in parallel provide 480W total power
• Dry-contact DC alarm output for monitoring output status
• DC OK relay contact is closed during normal output operation
• DC fault relay contact opens during output fault conditions
• Short-circuit protection
• Over-voltage protection
• Over-current protection
• Over-power protection
• Wide -40°C to +70°C operating temperature range
• Wire terminal input and output connections
• Rugged industrial design
TECHNICAL SPECIFICATIONS
• Model: PSDIN-48-240W
• Product Type: Industrial DIN Rail AC-DC Power Supply
• Input Operating Range: 90–264VAC, 47–63Hz
• Maximum Input In-Rush Current: 35A
• Input Current: 4.4A at 115VAC; 2.20A at 230VAC
• Output Voltage: 47–56VDC adjustable
• Nominal Output Voltage: 48VDC
• Continuous Load Current: 5A
• Maximum Output Power: 240W
• Peak Power: 360W for 10 seconds at 220VAC
• Line Regulation: ±0.5%
• Load Regulation: ±1%
• Voltage Overshoot: Less than 5%
• Ripple / Noise: 100mV peak
• Efficiency: 90% minimum
• Dielectric Strength: 1500V RMS, 1 minute, 10mA maximum
• Insulation Resistance: 10 MOhms
• Protection: Short circuit, over-voltage, over-current, over-power
• Alarm Output: 1A at 30VDC; 0.5A at 125VAC
• Alarm State: DC OK = closed; DC fault = open
• Safety Standards: GB4943 / EN60950-1
• EMI Standards: FCC Part 15 Class B, EN55022, EN55024
• Harmonic Current: EN61000-3-2 Class D
• EMS: EN61000-4-x Level 3 & 4
• Operating Temperature: -40°C to +70°C / -40°F to +158°F
• Operating Humidity: 5% to 95%, non-condensing
• Storage Temperature: -40°C to +85°C / -40°F to +185°F
• MTBF: 200,000 hours
• Maximum Altitude: 2,000 m / 6,562 ft
• Vibration: 10–500Hz, 2G, 10-minute sweep; 20G surge, 11ms
• Dimensions: 135 x 121 x 45 mm / 5.3 x 4.8 x 1.8 in.
• Weight: 0.77 kg / 1.7 lb.
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Powering PoE switches
• IP phone systems
• Security camera systems
• Telecommunications
Specifications
Technical specifications
| Tycon PSDIN-48-240W 240W 48VDC DIN Rail Industrial Power Adapter | |
|---|---|
| General | |
| Model | PSDIN-48-240W |
| Brand | Tycon Power Systems |
| Power Output | 240W (Maximum) |
| Peak Power | 360W (10 seconds @ 220VAC) |
| Output Configuration | Single or parallel operation (two units in parallel provide 480W total) |
| Physical | |
| Dimensions | 135 x 121 x 45mm (5.3 x 4.8 x 1.8") |
| Weight | 0.77 kg (1.7 lbs) |
| Form Factor | DIN Rail Mount |
| Power & Electrical | |
| Input Voltage | 90–264VAC, auto-ranging |
| Input Frequency | 47–63Hz |
| Input In-rush Current | 35A Max |
| Input Current | 4.4A @ 115VAC; 2.20A @ 230VAC |
| Output Voltage | 48VDC nominal (adjustable 47–56VDC) |
| Continuous Load Current | 5A |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Voltage Overshoot | <5% |
| Ripple / Noise | 100mV Peak |
| Efficiency | 90% Minimum |
| Dielectric Strength | 1500V RMS, 1 min, 10mA Max |
| Insulation Resistance | 10M Ohms |
| Protection | Short Circuit, Over-Voltage, Over-Current, Over Power |
| Alarm Output | Dry contact closure (1A @ 30VDC, 0.5A @ 125VAC); closed when DC output normal, open on fault condition |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Altitude | 2000m (6562 ft) |
| Vibration | 10–500Hz 2G 10min Sweep, 20G Surge 11ms |
| MTBF | 200,000 hours |
| Compatibility | |
| Safety Standards | GB4943, EN60950-1 |
| EMI Standards | FCC Part 15 Class B, EN55022, EN55024 |
| Harmonic Current | EN61000-3-2 Class D |
| EMS | EN61000-4-x Level 3 & 4 |
