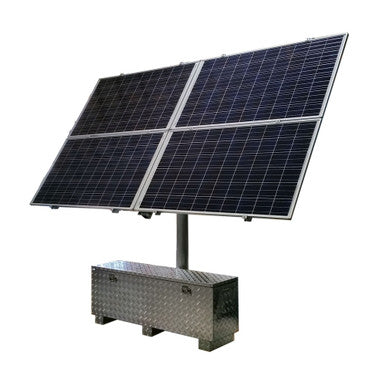

Tycon RPAL24/48M-14-1440 RemotePro 1440W Off-Grid Power System 24/48V
- EhubAmerica SKU
- RPAL24/48M-14-1440
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The RemotePro 1440+W Series outdoor power systems are designed for applications that require a primary off-grid power source. The vented weatherproof enclosures have generous space available inside for mounting customer equipment . Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.
PRODUCT TYPE
Batteries
KEY FEATURES
• Complete 1.4KW Remote Power Solution for Off-Grid Operation.
• Supports up to 180W continuous power with 6hrs peak sun.
• Weatherproof Outdoor Enclosures with 1440Ah Battery
• Expandable Ground Mounted Solar Mount
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation
• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Remote Cabins
• 65 x 28 x 18” (1651 x 711 x 457mm)
• 491 lb (223kg) 4 Panel System
• 588 lb (267 kg) 6 Panel System
• 127 lb (57.6 kg) (Each 180Ah Battery)
• Battery Type: Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: RPAL24/48M-14-1440
• Product Type: Batteries
• Complete 1.4KW Remote Power Solution for Off-Grid Operation.
• Supports up to 180W continuous power with 6hrs peak sun.
• Weatherproof Outdoor Enclosures with 1440Ah Battery
• Expandable Ground Mounted Solar Mount
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation
• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Remote Cabins
• 65 x 28 x 18” (1651 x 711 x 457mm)
• 491 lb (223kg) 4 Panel System
• 588 lb (267 kg) 6 Panel System
• 127 lb (57.6 kg) (Each 180Ah Battery)
• Battery Type: Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM
• Battery Life: 5+ years
• Enclosure Type: ENC-AL-65x28x18 Ground Mount, Diamond Plate Aluminum
• Internal Mount Features: DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
• Solar Panel Dims (L x W x T): 1440W Solar Array 78 x 154 x 1.6” (1980 x 3912 x 40mm)
• 2160W Solar Array 117 x 154 x 1.6” (2970 x 3912 x 40mm)
• Operating Temperature: -30°C to +60°C (-22°F to 140°F)
• Wind Speed Rating: 90MPH
• Controller Type: Controller Type 24/48V MPPT with display and RS485 Interface
• Controller Outputs: 30A Wire Terminal
• Bulk Charge: 28.8V @ 24V Battery
• 57.6V @ 48V Battery
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product Name | RemotePro 1440W Off-Grid Power System |
| Model | RPAL24/48M-14-1440 |
| Brand | Tycon |
| System Type | Off-grid power system |
| Voltage Options | 24V, 48V |
| Power & Electrical | |
| Total Power Capacity | 1440W |
| Continuous Power Output | 180W (with 6 hours peak sun) |
| Battery Type | Sealed Pure Lead Carbon Advance Glass Matt (AGM), Valve Regulated, Non-Spillable, Maintenance-free |
| Battery Capacity | 1440Ah |
| Expected Battery Life | Exceeds 5 years |
| Solar Charge Controller | MPPT temperature compensated |
| Solar Controller Interface | RS485 (remote monitoring compatible with Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter) |
| Load Control | Automatic shutoff at low battery voltage; automatic restart when voltage recovers |
| Solar Panel Output Guarantee | 25 year power output guarantee with +5W output tolerance |
| Physical | |
| Enclosure Type | Diamond plate aluminum, ground-mounted, hinged, gasket sealed with locking closures |
| Enclosure Sealing | Weatherproof, vented |
| Cable Gland Ports | Four ports (CAT5/6 cable, antenna cables/connectors, or other cabling) |
| Internal Mounting | Multiple welded mounting brackets for DIN rails or flat plates |
| Thermostat Control | Fan turns on automatically when temperature exceeds 45°C |
| Environmental | |
| Operating Temperature Management | Thermostatically controlled ventilation fan (activates above 45°C) |
| Compatibility | |
| Remote Monitoring | Tycon TPDIN-Monitor-WEB3, TP-SC-WIFI adapter |
| Solar Mount Expansion | TPSM-350x6-AdapterKit (expandable to 6 panels) |
| In the Box | |
| Included Cabling | All cabling to connect batteries to controller; 20' outdoor rated cable for solar panel connection |
| Mounting Hardware | Concrete anchors for ground mount installation; solar mount with tilt adjustment range 10-65 degrees |
