Tycon RPAL24/48M-720-1440 1440W Outdoor Power System 720Ah AGM Battery
- EhubAmerica SKU
- RPAL24/48M-720-1440
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

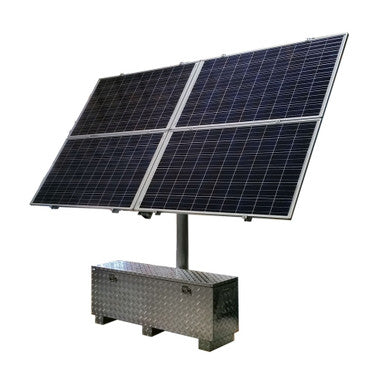

The RemotePro 1440W outdoor power systems are designed for applications that require a primary off-grid power source. The vented weatherproof enclosures have generous space available inside for mounting customer equipment . Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.
PRODUCT TYPE
Batteries
KEY FEATURES
• Complete 1.4KW Remote Power Solution for Off-Grid Operation.
• Supports up to 180W continuous power with 6hrs peak sun.
• Weatherproof Outdoor Enclosures with 1440Ah Battery
• Expandable Ground Mounted Solar Mount
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation
• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Remote Cabins
• 65 x 28 x 18” (1651 x 711 x 457mm)
• 491 lb (223kg) 4 Panel System
• 588 lb (267 kg) 6 Panel System
• 127 lb (57.6 kg) (Each 180Ah Battery)
• Battery Type Maintenance Free, Non-Spillable, Valve Regulated Sealed Lead Acid, AGM Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: RPAL24/48M-720-1440
• Product Type: Batteries
• Complete 1.4KW Remote Power Solution for Off-Grid Operation.
• Supports up to 180W continuous power with 6hrs peak sun.
• Weatherproof Outdoor Enclosures with 1440Ah Battery
• Expandable Ground Mounted Solar Mount
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation
• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Remote Cabins
• 65 x 28 x 18” (1651 x 711 x 457mm)
• 491 lb (223kg) 4 Panel System
• 588 lb (267 kg) 6 Panel System
• 127 lb (57.6 kg) (Each 180Ah Battery)
• Battery Type Maintenance Free, Non-Spillable, Valve Regulated Sealed Lead Acid, AGM Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM
• Battery Life 5+ years
• Controller Type 24/48V MPPT with display and RS485 Interface
• Controller Outputs 30A Wire Terminal
• Bulk Charge 28.8V @ 24V Battery ; 57.6V @ 48V Battery
• Float Charge 27.6V @ 24V Battery ; 55.2V @ 48V Battery
• Over-discharge protection 22.2V @ 24V Battery ; 44.4V @ 48V Battery
• Over-discharge recovery volts 25.2V @ 24V Battery ; 50.4V @ 48V Battery
• Controller Self Consumption <1W
• Enclosure Type ENC-AL-65x28x18 Ground Mount, Diamond Plate Aluminum
• Internal Mount Features DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
• Solar Panel Dims (L x W x T) 1440W Solar Array 78 x 154 x 1.6” (1980 x 3912 x 40mm) ; 2160W Solar Array 117 x 154 x 1.6” (2970 x 3912 x 40mm)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | RPAL24/48M-720-1440 |
| Brand | Tycon |
| Product Type | Outdoor Power System |
| System Power Output | 1440W |
| Battery Capacity | 720Ah |
| Physical | |
| Enclosure Type | Diamond plate aluminum, ground mounted, hinged, gasket sealed |
| Enclosure Features | Locking closures, four cable gland ports for CAT5/6, antenna cables, or other cabling |
| Ventilation | Thermostatically controlled fan assembly (activates above 45°C) |
| Solar Mount | Ground mounted with tilt adjustment range 10–65°, expandable to 6 panels |
| Power & Electrical | |
| Continuous Power Output | 180W (with 6 hours peak sun) |
| Battery Type | Valve Regulated, Sealed Pure Lead Carbon Advance Glass Matt (AGM), maintenance free, non-spillable |
| Expected Battery Life | Exceeds 5 years |
| Solar Charge Controller | MPPT with temperature compensation and RS485 interface |
| Load Control | Automatic shutoff at low battery voltage; automatic restart when battery voltage recovers |
| Cabling Included | All cabling for battery-to-controller connection, 20' outdoor rated cable for solar panel-to-controller connection |
| Compatibility | |
| Remote Monitoring | Compatible with Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter |
| Solar Panel Expansion | Compatible with TPSM-350x6-AdapterKit for expansion to 6 panels |
| General | |
| Included Accessories | Concrete anchors for solar mount installation |
