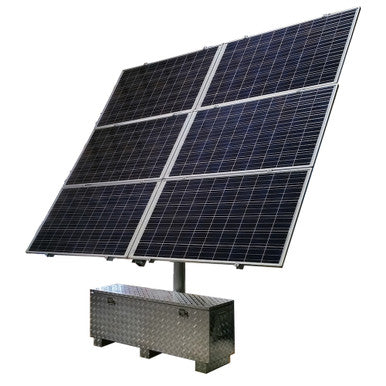

Tycon RPAL48M-14-2160 1440W RemotePro Solar Power System 48V AGM Battery
- EhubAmerica SKU
- RPAL48M-14-2160
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The RemotePro 1440W outdoor power systems are designed for applications that require a primary off-grid power source. The vented weatherproof enclosures have generous space available inside for mounting customer equipment . Multiple mounting brackets are welded inside the enclosure for mounting DIN rails or flat plates.
PRODUCT TYPE
Batteries
KEY FEATURES
• Complete 2.2KW Remote Power Solutions for Off-Grid Operation.
• Supports up to 360W continuous power with 6hrs peak sun.
• Weatherproof Outdoor Enclosures with up to 1440Ah Battery
• Expandable Ground Mounted Solar Mount
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation
• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Remote Cabins
• 65 x 28 x 18” (1651 x 711 x 457mm)
• 491 lb (223kg) 4 Panel System
• 588 lb (267 kg) 6 Panel System
• 127 lb (57.6 kg) (Each 180Ah Battery)
• Battery Type Maintenance Free, Non-Spillable, Valve Regulated Sealed Lead Acid, AGM Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: RPAL48M-14-2160
• Product Type: Batteries
• Complete 2.2KW Remote Power Solutions for Off-Grid Operation.
• Supports up to 360W continuous power with 6hrs peak sun.
• Weatherproof Outdoor Enclosures with up to 1440Ah Battery
• Expandable Ground Mounted Solar Mount
• High Performance Sealed Lead Acid AGM Batteries
• MPPT Solar Charge Controllers with RS485 Interface
• Thermostatically Controlled Ventilation
• Wireless Base Stations
• Remote Lighting
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Off-Grid Power
• Remote Cabins
• 65 x 28 x 18” (1651 x 711 x 457mm)
• 491 lb (223kg) 4 Panel System
• 588 lb (267 kg) 6 Panel System
• 127 lb (57.6 kg) (Each 180Ah Battery)
• Battery Type Maintenance Free, Non-Spillable, Valve Regulated Sealed Lead Acid, AGM Maintenance Free, Non-Spillable, Valve Regulated, Sealed, Pure Lead Carbon AGM
• Battery Life 5+ years
• Controller Type 24/48V MPPT with display and RS485 Interface
• Controller Outputs 30A Wire Terminal
• Bulk Charge 28.8V @ 24V Battery ; 57.6V @ 48V Battery
• Float Charge 27.6V @ 24V Battery ; 55.2V @ 48V Battery
• Over-discharge protection 22.2V @ 24V Battery ; 44.4V @ 48V Battery
• Over-discharge recovery volts 25.2V @ 24V Battery ; 50.4V @ 48V Battery
• Controller Self Consumption <1W
• Enclosure Type ENC-AL-65x28x18 Ground Mount, Diamond Plate Aluminum
• Internal Mount Features DIN Rail/Flat Plate Mounting Brackets Welded to Door and Back
• Solar Panel Dims (L x W x T) 1440W Solar Array 78 x 154 x 1.6” (1980 x 3912 x 40mm) ; 2160W Solar Array 117 x 154 x 1.6” (2970 x 3912 x 40mm)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon |
| Model | RPAL48M-14-2160 |
| Product Name | RemotePro 1440W Solar Power System |
| System Type | Off-grid solar power system |
| Power Output | 1440W |
| Continuous Power Capacity | 360W (with 6hrs peak sun) |
| Physical | |
| Enclosure Type | Diamond plate aluminum, hinged, ground-mounted |
| Enclosure Seal | Gasket sealed with locking closures |
| Cable Gland Ports | Four ports for CAT5/6 cable, antenna cables/connectors, or other cabling |
| Internal Mounting | Multiple welded mounting brackets for DIN rails or flat plates |
| Solar Mount Tilt Range | 10–65 degrees (adjustable by one person) |
| Solar Mount Expandability | Can expand to 6 panels (Model: TPSM-350x6-AdapterKit) |
| Power & Electrical | |
| System Voltage | 48V |
| Battery Type | Maintenance-free, Non-Spillable, Valve Regulated, Sealed Pure Lead Carbon Advance Glass Matt (AGM) |
| Battery Capacity | Up to 1440Ah |
| Expected Battery Life | Exceeds 5 years |
| Solar Charge Controller Type | MPPT temperature compensated |
| Charge Controller Interface | RS485 (supports remote monitoring with Tycon TPDIN-Monitor-WEB3 or TP-SC-WIFI adapter) |
| Load Control | Automatic shutoff at low battery voltage; automatic turn-on upon voltage recovery |
| Environmental | |
| Weatherproofing | Vented weatherproof enclosures |
| Thermostat Fan | Automatically activates when temperature exceeds 45°C |
| In the Box | |
| Included Cabling | All cabling to connect batteries to controller |
| Included Solar Cable | 20' outdoor rated cable (solar panels to controller) |
| Included Mounting Hardware | Concrete anchors for solar mount installation |
