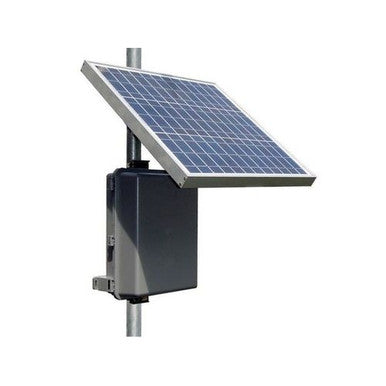

Tycon RPPL12-36-35 RemotePro 36Ah AGM Battery 35W Solar PoE
- EhubAmerica SKU
- RPPL12-36-35
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The RemotePro PL series (RPPL) outdoor power systems are designed for applications that require a primary off-grid power source to run various electronics . The sealed and weatherproof Polycarbonate enclosures hold up to four 12V 8.5AH batteries . The enclosures are hinged and gasket sealed. They can accept a padlock of tamper seal.
PRODUCT TYPE
Batteries
KEY FEATURES
• Complete Remote Power Solution for Off-Grid operation
• Weatherproof, UV resistant, outdoor enclosures
• Enclosures can be Wall or Pole Mounted
• High Performance Valve Regulated Sealed Lead Acid Batteries
• Advanced battery charge controller protects against overcharge and over discharge
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Remote Lighting
• Backup Power Systems
• 17.5 x 12.5 x 6” (445x318x152mm)
• 14 x 10 x 5” (356x254x127mm)
• 22lb (10kg)
• Rated Power Generation: 8W
• Reserve Time @ Rated Power: 27hrs
• POE Output Voltage (DC): No POE Out
• Secondary Volts Out (DC): 12V 20A
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: RPPL12-36-35
• Product Type: Batteries
• Complete Remote Power Solution for Off-Grid operation
• Weatherproof, UV resistant, outdoor enclosures
• Enclosures can be Wall or Pole Mounted
• High Performance Valve Regulated Sealed Lead Acid Batteries
• Advanced battery charge controller protects against overcharge and over discharge
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Remote Lighting
• Backup Power Systems
• 17.5 x 12.5 x 6” (445x318x152mm)
• 14 x 10 x 5” (356x254x127mm)
• 22lb (10kg)
• Rated Power Generation: 8W
• Reserve Time @ Rated Power: 27hrs
• POE Output Voltage (DC): No POE Out
• Secondary Volts Out (DC): 12V 20A
• Battery Capacity (Amp Hrs): 36Ah
• Battery Voltage (DC): 12V
• Battery Type: Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM)
• Battery Life: 5 Years
• Controller Type: PWM
• Overcharge Protection: 14.4V
• Over-discharge protection: 11.0V
• Over-discharge recovery volts: 12.5V
• Controller Self Consumption: < 0.5W
• Enclosure Type: Polycarbonate
• Solar Panel Dims: 26” X 16” (654 x 401mm)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | RPPL12-36-35 |
| Brand | Tycon |
| Product Type | Outdoor Power System with Solar Panel and Battery |
| Applications | Wireless Base Stations, Surveillance Cameras, Wireless Bridges and Repeaters, Remote Sensors, Remote Lighting, Backup Power Systems |
| Physical | |
| Enclosure External Dimensions | 17.5 × 12.5 × 6" (445 × 318 × 152 mm) |
| Enclosure Internal Dimensions | 14 × 10 × 5" (356 × 254 × 127 mm) |
| System Weight (without batteries) | 22 lb (10 kg) |
| Battery Weight | 22 lb (10 kg) |
| Enclosure Material | Polycarbonate, weatherproof, UV resistant, hinged and gasket sealed |
| Mounting | Wall or pole mount with included bracket system |
| Battery Capacity | Holds up to four 12V 8.5Ah batteries |
| Power & Electrical | |
| Solar Panel Output | 35W |
| Rated Power Generation | 8W |
| Battery Capacity | 36Ah |
| Battery Voltage | 12V |
| Battery Type | Valve Regulated Sealed Lead Acid (AGM) |
| Battery Life | 5 Years |
| Secondary Output Voltage | 12V at 20A |
| Charge Controller Type | PWM |
| Overcharge Protection | 14.4V |
| Over-discharge Protection | 11.0V |
| Over-discharge Recovery Voltage | 12.5V |
| Reserve Time at Rated Power | 27 hrs |
| POE Output | No POE Out |
| Networking & Connectivity | |
| Enclosure Ports | Multiple ports for CAT5/6 cable, antenna cables/connectors, and other cabling |
| Environmental | |
| Temperature Performance | AGM batteries with good all-temperature performance |
| Ventilation | Vented to prevent hydrogen gas buildup |
