Tycon RPPL12-9-15 RemotePro 15W Solar 9Ah 12V Battery Off-Grid Power
- EhubAmerica SKU
- RPPL12-9-15
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

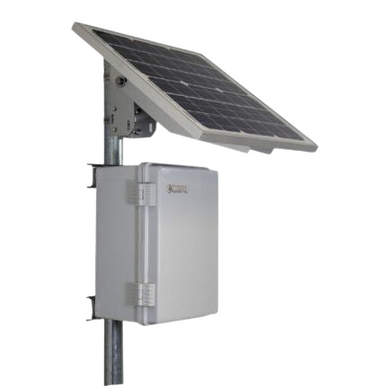

RPPL12-9-15 - RemotePro® 15W, 9Ah Battery, Solar Power System
PRODUCT TYPE
Batteries
KEY FEATURES
• Complete Remote Power Solution : Designed for off-grid or backup power applications.
• Weatherproof Enclosure : UV-resistant, outdoor-rated polycarbonate enclosure with gasket-sealed design for protection from the elements.
• High Performance : Equipped with a 12V 9Ah VRLA AGM battery offering reliable power storage and extended battery life.
• Solar Power : Includes a 15W solar panel with a 25-year power output guarantee.
• Advanced Battery Charge Controller : PWM controller provides protection against overcharging and over-discharging.
• Multiple Mounting Options : Can be easily mounted to walls or poles using the included mounting bracket system.
• Passive PoE : Optional PoE inserter for delivering power over Ethernet to remote devices.
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Remote Lighting
• Backup Power Systems
• Battery : Capacity: 9Ah
• Voltage: 12V
• Type: Valve Regulated Sealed Lead Acid (VRLA) / Absorbed Glass Mat (AGM)
• Battery Life: 5 years
• Controller : Type: PWM
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: RPPL12-9-15
• Product Type: Batteries
• Complete Remote Power Solution : Designed for off-grid or backup power applications.
• Weatherproof Enclosure : UV-resistant, outdoor-rated polycarbonate enclosure with gasket-sealed design for protection from the elements.
• High Performance : Equipped with a 12V 9Ah VRLA AGM battery offering reliable power storage and extended battery life.
• Solar Power : Includes a 15W solar panel with a 25-year power output guarantee.
• Advanced Battery Charge Controller : PWM controller provides protection against overcharging and over-discharging.
• Multiple Mounting Options : Can be easily mounted to walls or poles using the included mounting bracket system.
• Passive PoE : Optional PoE inserter for delivering power over Ethernet to remote devices.
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Remote Lighting
• Backup Power Systems
• Battery : Capacity: 9Ah
• Voltage: 12V
• Type: Valve Regulated Sealed Lead Acid (VRLA) / Absorbed Glass Mat (AGM)
• Battery Life: 5 years
• Controller : Type: PWM
• Overcharge Protection: 14.4V
• Over-discharge Protection: 11.0V
• Over-discharge Recovery: 12.5V
• Self Consumption: < 0.5W
• Enclosure : Type: UV-protected Polycarbonate
• External Dimensions: 12 x 8.5 x 7 inches (305 x 216 x 178 mm)
• Internal Dimensions: 11 x 7 x 6 inches (279 x 178 x 152 mm)
• Solar Panel : Size: 14.6 x 14 inches (371 x 356 mm)
• Power: 15W
• 25-year power output guarantee
• Power Output : Secondary Volts Out: 12V DC (20A)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | RPPL12-9-15 |
| Product Name | RemotePro® 15W, 9Ah Battery, Solar Power System |
| Type | Off-grid solar power system with battery backup |
| Power & Electrical | |
| Battery Capacity | 9Ah |
| Battery Voltage | 12V |
| Battery Type | Valve Regulated Sealed Lead Acid (VRLA) / Absorbed Glass Mat (AGM) |
| Battery Life | 5 years |
| Solar Panel Power | 15W |
| Solar Panel Dimensions | 14.6 x 14 inches (371 x 356 mm) |
| Charge Controller Type | PWM |
| Overcharge Protection Threshold | 14.4V |
| Over-discharge Protection Threshold | 11.0V |
| Over-discharge Recovery Voltage | 12.5V |
| Controller Self-Consumption | < 0.5W |
| Physical | |
| Enclosure Material | UV-protected Polycarbonate |
| Enclosure Type | Weatherproof, gasket-sealed |
| External Dimensions | 12 x 8.5 x 7 inches (305 x 216 x 178 mm) |
| Internal Dimensions | 11 x 7 x 6 inches (279 x 178 x 152 mm) |
| Mounting Options | Wall- or pole-mounted with included bracket system |
| Networking & Connectivity | |
| Optional Feature | Passive PoE inserter available for power delivery over Ethernet |
