Tycon RPPL24-36-30 RemotePro 30W Solar 36Ah AGM Battery Power System
- EhubAmerica SKU
- RPPL24-36-30
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

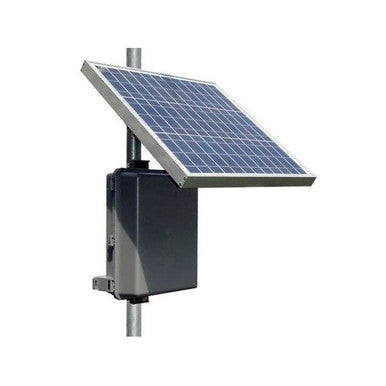

Tycon RPPL24-36-30 RemotePro is an off-grid outdoor power system with a 30W solar panel, 24VDC 36Ah AGM battery system, 8W rated continuous power generation, PWM controller, and weatherproof polycarbonate enclosure.
PRODUCT TYPE
Batteries
KEY FEATURES
• Complete remote power solution for off-grid operation
• 30W solar panel
• 24VDC battery system
• 36Ah battery capacity
• Valve-regulated sealed lead acid AGM batteries
• 8W rated continuous power generation
• 27-hour reserve time at rated power
• PWM battery charge controller
• Advanced overcharge and over-discharge protection
• Weatherproof, UV-resistant polycarbonate outdoor enclosure
• Hinged and gasket-sealed enclosure
• Enclosure accepts a padlock or tamper seal
• Wall or pole mounting with included mounting bracket system
• Solar panel supports pole or wall mounting with included bracket kit
• Multiple enclosure ports accommodate CAT5/6, antenna cables/connectors, and other cabling
• Vented enclosure design helps prevent residual hydrogen gas buildup
• 110 MPH wind speed rating
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Product Series: RemotePro PL
• Model: RPPL24-36-30
• Rated Power Generation: 8W
• Reserve Time at Rated Power: 27 hours
• Solar Panel Size: 30W
• Battery Voltage: 24VDC
• Battery Capacity: 36Ah
• Battery Type: Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM)
• Battery Life: 5 years
• PoE Output: No PoE output
• Secondary DC Output: 24V, 20A
• Controller Type: PWM
• Overcharge Protection: 28.6V
• Over-Discharge Protection: 22.0V
• Over-Discharge Recovery Voltage: 24.5V
• Controller Self Consumption: Less than 0.5W
• Enclosure Type: Polycarbonate
• Enclosure External Dimensions: 17.5 x 12.5 x 6 in. (445 x 318 x 152mm)
• Enclosure Internal Dimensions: 14 x 10 x 5 in. (356 x 254 x 127mm)
• Solar Panel Dimensions: 26 x 16 in. (654 x 401mm)
• Solar Panel Pole Compatibility: 51-101mm (2-4 in.) diameter
• Operating Temperature: -30°C to +60°C (-22°F to 140°F)
• System Weight Without Batteries: 22 lb. (10kg)
• Battery Weight: 22 lb. (10kg)
• Wind Speed Rating: 110 MPH (49m/s)
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Wireless base stations and clients
• Wireless bridges and repeaters
• Surveillance cameras
• Remote sensors
• Remote lighting
• Backup power systems
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon |
| Model | RPPL24-36-30 |
| Product Name | RemotePro 30W Solar 36Ah AGM Battery Power System |
| Type | Off-grid outdoor power system |
| Solar Panel Power | 30W |
| Battery Capacity | 36Ah |
| Battery Voltage | 24V |
| Physical | |
| Enclosure Material | Polycarbonate |
| Enclosure External Dimensions | 17.5 x 12.5 x 6" (445 x 318 x 152mm) |
| Enclosure Internal Dimensions | 14 x 10 x 5" (356 x 254 x 127mm) |
| System Weight (no batteries) | 22 lb (10 kg) |
| Battery Weight | 22 lb (10 kg) |
| Enclosure Features | Hinged, gasket sealed, padlock/tamper seal capable, vented for hydrogen gas prevention |
| Mounting | Wall or pole mount capable (51mm to 101mm / 2" to 4" diameter pole) |
| Power & Electrical | |
| Rated Power Generation | 8W |
| Battery Type | Valve Regulated Sealed Lead Acid (VRLA) / Absorbed Glass Mat (AGM) |
| Battery Life | 5 Years |
| Secondary Output Voltage (DC) | 24V 20A |
| Reserve Time @ Rated Power | 27 hrs |
| Controller Type | PWM |
| Overcharge Protection Voltage | 28.6V |
| Over-discharge Protection Voltage | 22V |
| Over-discharge Recovery Voltage | 24.5V |
| Networking & Connectivity | |
| Enclosure Ports | Multiple ports for CAT5/6 cable, antenna cables/connectors, or other cabling |
| Environmental | |
| Operating Temperature Performance | All temperature performance |
| Enclosure Weather Resistance | Weatherproof, UV resistant |
