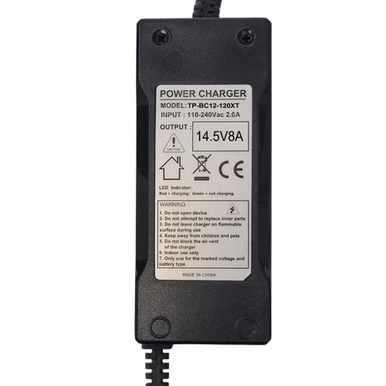

Tycon TP-BC12-120XT 12VDC 120W Smart Battery Charger AGM/GEL
- EhubAmerica SKU
- TP-BC12-120XT
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon TP-BC12-120XT provides up to 120W charging power for compatible 12V GEL/AGM sealed lead-acid and lithium batteries with a BMS that accepts lead-acid charging voltages. Provides 14.5V at up to 8A with XT30 quick disconnect.
PRODUCT TYPE
Batteries
KEY FEATURES
• Maximum total charging power of 120W
• Designed for nominal 12VDC battery systems
• Compatible with GEL and AGM sealed lead-acid batteries
• Supports lithium batteries equipped with a BMS that accepts lead-acid charging voltages
• 14.5V battery charging voltage
• Maximum battery charging current of 8A
• Auto-ranging 100VAC / 240VAC input
• XT30 30A quick-disconnect connector
• 500 mm / 20 in. two-wire tinned output cable
• Short-circuit protection
• Over-load protection
• Over-voltage protection
• Over-current protection
• Over-temperature protection
• LED charging status indicator
• Red LED indicates charging
• Green LED indicates battery full
• Attached AC cord with North American 2-prong plug
• Wide operating temperature range
• CE and FCC certifications
TECHNICAL SPECIFICATIONS
• Model: TP-BC12-120XT
• Product Type: Battery Charger
• Nominal Battery Voltage: 12VDC
• Total Power Available for Load and Battery Charging: 120W
• Battery Charger Voltage: 14.5V
• Maximum Battery Charge Current: 8A
• AC Power Input: 100VAC / 240VAC, 47/63Hz
• Maximum AC Input Current: 2A
• Minimum Efficiency: 85%
• Load Regulation: 5%
• Line Regulation: 3%
• Output: Two tinned wires with XT30 disconnect connector
• Output Cable Length: 500 mm / 20 in.
• XT30 Connector Rating: 30A
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2, TUV EN60950
• HiPot Test: 3000VAC
• Insulation Resistance: 50 MOhm at 500VDC
• Operating Temperature: -10°C to +50°C / +14°F to +122°F
• Operating Humidity: Up to 90% RH, non-condensing
• Storage Temperature: -40°C to +85°C / -40°F to +185°F
• Storage Humidity: Up to 90%, non-condensing
• MTBF: Greater than 50,000 hours
• Dimensions: 135 x 56 x 45 mm / 5.3 x 2.2 x 1.8 in.
• Weight: 283 g / 10 oz.
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Wireless base stations
• Cellular base stations
• Surveillance systems
• Battery backup systems
Specifications
Technical specifications
| Tycon TP-BC12-120XT - 12V 120W Smart Battery Charger | |
|---|---|
| General | |
| Model | TP-BC12-120XT |
| Brand | Tycon Power Systems |
| Total Power Output | 120W |
| Nominal Battery Voltage | 12VDC |
| Battery Charge Maximum Current | 8A |
| Battery Charger Voltage | 14.5V |
| Load Regulation | 5% |
| Line Regulation | 3% |
| Efficiency | 85% Minimum |
| MTBF | >50,000 hrs |
| Physical | |
| Dimensions | 135 x 56 x 45mm (5.3 x 2.2 x 1.8") |
| Weight | 283g (10oz) |
| Output Connector | XT30 disconnect connector with 500mm (20") tinned wire cable |
| AC Cord | North American 2-Prong Plug with attached cord |
| Power & Electrical | |
| AC Power Input | 100VAC to 240VAC, 47/63Hz (auto-ranging) |
| AC Input Current | 2A Max |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MOhm at 500VDC |
| Environmental | |
| Operating Temperature | -10 to +50°C (14 to +122°F) |
| Operating Humidity | Up to 90% RH (non-condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| Compatibility | |
| Compatible Battery Types | AGM and GEL Lead Acid batteries, Lithium batteries with BMS that accept Lead Acid charging voltages |
| In the Box | |
| Protection Features | Over-voltage, over-current, over-temperature, over-load, short-circuit protections |
| LED Indicator | Red (charging), Green (battery full) |
| Certifications | FCC Class B, CE, CSA 22.2, TUV EN60950, NE55022 Class B |
