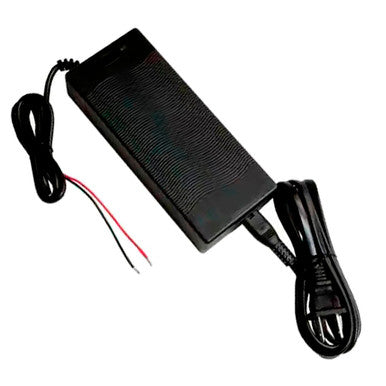

Tycon TP-BC24-120 24V 120W Battery Charger AGM/GEL SLA
- EhubAmerica SKU
- TP-BC24-120
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon TP-BC24-120 is a 120W charger for 24V GEL/AGM sealed lead-acid batteries, providing 28.8V charging voltage at up to 4.35A from auto-ranging 120/240VAC input.
PRODUCT TYPE
Batteries
KEY FEATURES
• 120W battery charger for 24VDC battery systems
• Compatible with GEL and AGM sealed lead-acid batteries
• 28.8V battery charging voltage
• Maximum battery charging current of 4.35A
• Auto-ranging 120VAC / 240VAC, 50/60Hz input
• Minimum efficiency of 85%
• Short-circuit protection
• Over-load protection
• Over-voltage protection
• Over-current protection
• Over-temperature protection
• LED status indicator
• Red LED indicates charging
• Green LED indicates battery full
• Removable AC power cord with North American plug
• 914 mm / 36 in. two-wire output cable
• Wide operating temperature range
TECHNICAL SPECIFICATIONS
• Model: TP-BC24-120
• Product Type: Battery Charger
• Nominal Battery Voltage: 24VDC
• Total Power Available for Load and Battery Charging: 120W
• Battery Charger Voltage: 28.8V
• Maximum Battery Charge Current: 4.35A
• AC Power Input: 120VAC / 240VAC ±10%, 50/60Hz
• Maximum AC Input Current: 2.5A
• Minimum Efficiency: 85%
• Load Regulation: 5%
• Line Regulation: 3%
• Output Connector: Two-wire cable
• Output Cable Length: 914 mm / 36 in.
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: UL60950-1, CSA 22.2, TUV EN60950
• HiPot Test: 3000VAC
• Insulation Resistance: 50 MOhm at 500VDC
• Operating Temperature: -30°C to +55°C / -22°F to +131°F
• Operating Humidity: Up to 90%, non-condensing
• Storage Temperature: -40°C to +85°C / -40°F to +185°F
• Storage Humidity: Up to 90%, non-condensing
• MTBF: Greater than 50,000 hours
• Dimensions: 172 x 72.5 x 34.5 mm / 6.8 x 2.9 x 1.4 in.
• Weight: 439 g / 15.5 oz.
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Wireless base stations
• Cellular base stations
• Surveillance systems
• Battery backup systems
• Charging compatible 24V GEL/AGM sealed lead-acid battery systems
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon Power Systems |
| Model | TP-BC24-120 |
| Product Type | 24VDC Battery Charger |
| Total Power Output | 120W |
| Compatible Battery Type | GEL/AGM sealed lead acid |
| Physical | |
| Dimensions (L x W x H) | 172 x 72.5 x 34.5 mm (6.8 x 2.9 x 1.4") |
| Weight | 439 g (15.5 oz) |
| Output Connector | 2 Wire, 914 mm (36") cable |
| Power & Electrical | |
| Nominal Battery Voltage | 24VDC |
| Battery Charger Voltage | 28.8V |
| Battery Charge Max Current | 4.35A |
| AC Power Input | 120VAC / 240VAC (±10%), 50/60Hz, auto-ranging 100VAC to 240VAC |
| AC Input Current | 2.5A Max |
| Load Regulation | 5% |
| Line Regulation | 3% |
| Efficiency | 85% Minimum |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MOhm, 500VDC |
| Environmental | |
| Operating Temperature | -30 to +55°C (-22 to +131°F) |
| Operating Humidity | Up to 90% (non-condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| MTBF | >50,000 hrs |
| Compatibility | |
| Protections | Over-voltage, over-current, over-temperature, overload, short-circuit |
| LED Indicator | Red (Charging), Green (Battery Full) |
| Safety Standards | UL60950-1, CSA 22.2, TUV EN60950 |
| EMC Standards | FCC Class B, NE55022 Class B |
| Certifications | CE, UL, FCC |
