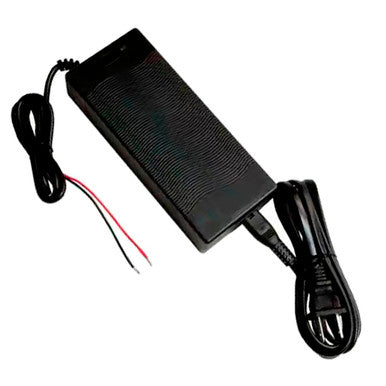

Tycon TP-BC48-120 48V 120W Battery Charger GEL/AGM SLA
- EhubAmerica SKU
- TP-BC48-120
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon 120W battery charger for 48VDC GEL/AGM sealed lead-acid batteries. Provides 57.6V charging voltage up to 2.15A with 120/240VAC input, 2-wire output, protection circuitry, and charge-status LED.
PRODUCT TYPE
Batteries
KEY FEATURES
• 120W total available power
• Designed for 48VDC nominal battery systems
• Compatible with GEL/AGM sealed lead-acid batteries
• 57.6V battery charging voltage
• Maximum battery charge current of 2.15A
• Auto-ranging 120/240VAC, 50/60Hz input
• 2-wire output with 36-inch (914mm) cable
• LED status indicator: Red for charging, Green for battery full
• Short-circuit protection
• Over-load protection
• Over-voltage protection
• Over-current protection
• Over-temperature protection
• Wide operating temperature range
• CE, UL, and FCC certifications stated by manufacturer
• Removable AC cord with North American plug
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: TP-BC48-120
• Product Type: Battery Charger
• Nominal Battery Voltage: 48VDC
• Compatible Battery Type: GEL/AGM Sealed Lead Acid
• Total Power Available: 120W
• Battery Charger Voltage: 57.6V
• Maximum Battery Charge Current: 2.15A
• AC Power Input: 120VAC / 240VAC ±10%, 50/60Hz
• Maximum AC Input Current: 2.5A
• Output Connector: 2 Wire
• Output Cable Length: 914mm (36 in)
• Minimum Efficiency: 85%
• Load Regulation: 5%
• Line Regulation: 3%
• HiPot Test: 3000VAC
• Insulation Resistance: 50 MOhm at 500VDC
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: UL60950-1, CSA 22.2, TUV EN60950
• Operating Temperature: -30°C to +55°C (-22°F to +131°F)
• Operating Humidity: Up to 90% RH, non-condensing
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Storage Humidity: Up to 90%, non-condensing
• MTBF: >50,000 Hours
• Dimensions: 172 x 72.5 x 34.5mm (6.8 x 2.9 x 1.4 in)
• Weight: 439g (15.5 oz)
• Warranty: 3 Years
INTENDED USE / APPLICATIONS
• Wireless base stations
• Cellular base stations
• Surveillance systems
• Battery backup systems
Specifications
Technical specifications
| General | |
|---|---|
| Model | TP-BC48-120 |
| Brand | Tycon |
| Product Type | 48VDC Battery Charger |
| Power & Electrical | |
| Output Power | 120W |
| Nominal Battery Voltage | 48VDC |
| Battery Charger Voltage | 57.6V |
| Battery Charge Max Current | 2.15A |
| AC Power Input | 120VAC / 240VAC, 50/60Hz (±10%) |
| AC Input Current | 2.5A Max |
| Input Range | 100VAC to 240VAC (auto-ranging) |
| Load Regulation | 5% |
| Line Regulation | 3% |
| Efficiency | 85% Minimum |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MOhm, 500VDC |
| Physical | |
| Dimensions | 172 x 72.5 x 34.5mm (6.8 x 2.9 x 1.4") |
| Weight | 439g (15.5oz) |
| Output Connector | 2 Wire, 914mm (36") long cable |
| Environmental | |
| Operating Temperature | -30 to +55°C (-22 to +131°F) |
| Operating Humidity | Up to 90% (non-condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| MTBF | >50,000 hrs |
| Compatibility | |
| Battery Type | GEL/AGM sealed lead acid batteries |
