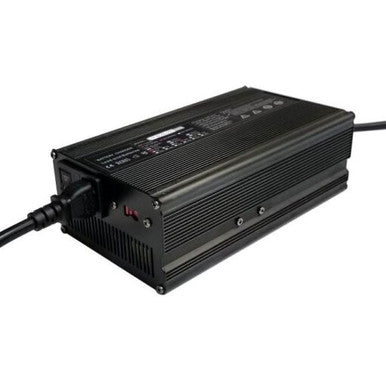

Tycon TP-BC63-900XT 900W 63V Battery Charger MPPT Solar Controller XT60
- EhubAmerica SKU
- TP-BC63-900XT
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon TP-BC63-900XT is a 900W, 63V power source designed for compatible solar MPPT charge controllers. It supports charging 12–48V battery banks through the MPPT controller and provides up to 14A output with an XT60 connection.
PRODUCT TYPE
Batteries
KEY FEATURES
• 900W total charging power
• 63V charger output
• Maximum output current of 14A
• Designed as a power source for compatible solar MPPT charge controllers
• 63V output connects to the PV / solar input of the MPPT charge controller
• Supports charging compatible 12VDC, 24VDC, 36VDC, and 48VDC battery banks through an appropriate MPPT controller
• MPPT controller must support at least 65V PV input
• XT60 60A quick-disconnect connection
• Attached 24 in. output cable with XT60 connector
• Separate 18 in. pigtail with mating XT60 connector and bare-wire connections
• Auto-ranging 100VAC / 240VAC input
• Attached 34 in. AC cord with North American 3-prong plug
• Short-circuit protection
• Over-load protection
• Over-voltage protection
• Over-current protection
• Over-temperature protection
• Thermostatic fan cooling
• LED charging status indicator
• Red LED indicates charging
• Green LED indicates battery full
• CE and FCC certifications
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model / MFR Part Number: TP-BC63-900XT
• Product Type: 63V Battery Charger / MPPT Controller Power Source
• Total Power: 900W
• Charger Output Voltage: 63V
• Maximum Charger Output Current: 14A
• Supported Battery Bank Voltages Through Compatible MPPT Controller: 12VDC to 48VDC
• Minimum MPPT PV Input Capability: 65V
• Minimum MPPT Current Rating for 12V Battery Bank: 75A
• Minimum MPPT Current Rating for 24V Battery Bank: 38A
• Minimum MPPT Current Rating for 36V Battery Bank: 25A
• Minimum MPPT Current Rating for 48V Battery Bank: 19A
• Load Regulation: 5%
• Line Regulation: 3%
• Minimum Efficiency: 87%
• Output Connector: XT60 quick disconnect
• Output Cable: Attached 610 mm / 24 in. cable with XT60 connector
• Pigtail Cable: 457 mm / 18 in. with mating XT60 connector and bare-wire connections
• AC Power Input: 100VAC / 240VAC, 47–63Hz
• AC Power Cord: Attached North American 3-prong, 34 in. long
• Maximum AC Input Current: 2A
• HiPot Test: 3000VAC
• Insulation Resistance: 50 MOhm at 500VDC
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2, TUV EN60950
• Operating Temperature: -10°C to +50°C / +14°F to +122°F
• Operating Humidity: Up to 90% RH, non-condensing
• Storage Temperature: -40°C to +85°C / -40°F to +185°F
• Storage Humidity: Up to 90%, non-condensing
• MTBF: Greater than 50,000 hours
• Dimensions: 280 x 125 x 55 mm
• Weight: 1.6 kg / 3.5 lb.
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Wireless base stations
• Cellular base stations
• Surveillance systems
• Battery backup systems
• Providing AC-derived 63V power to the PV / solar input of compatible MPPT charge controllers
• Charging compatible 12VDC to 48VDC battery banks through an appropriately rated MPPT solar charge controller
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon Power Systems |
| Model | TP-BC63-900XT |
| Product Type | 900W 63V Battery Charger MPPT Solar Controller |
| Power & Electrical | |
| Total Power Available | 900W |
| Charger Output Voltage | 63V |
| Charger Output Max Current | 14A |
| Load Regulation | 5% |
| Line Regulation | 3% |
| Efficiency | 87% Minimum |
| AC Power Input | 100VAC / 240VAC, 47/63Hz |
| AC Input Current | 2A Max |
| AC Input Connector | Attached 3-prong US Power Cord, 34" Long |
| Output Connector | Attached 610mm (24") long cable with XT60 disconnect connector |
| HiPot Test | 3000VAC |
| Insulation Resistance | 50 MΩ, 500VDC |
| Environmental | |
| Operating Temperature | -10 to +50°C (14 to +122°F) |
| Operating Humidity | Up to 90% (non-condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Storage Humidity | Up to 90% (non-condensing) |
| Physical | |
| Dimensions (LxWxH) | 280 x 125 x 55mm (11 x 4.9 x 2.2") |
| Weight | 1.6kg (3.5lb) |
| Compatibility | |
| Battery Compatibility | 12VDC to 48VDC battery banks |
| Controller Type | Solar MPPT charge controllers |
| General (Certifications & Standards) | |
| EMC Standards | FCC Class B, NE55022 Class B |
| Safety Standards | CSA 22.2, TUV EN60950 |
| MTBF | >50,000 hrs |
| LED Indicators | Red (Charging), Green (Battery Full) |
| Protections | Over-Voltage, Over-Current, Over-Temp, Over-Load, Short-Circuit |
