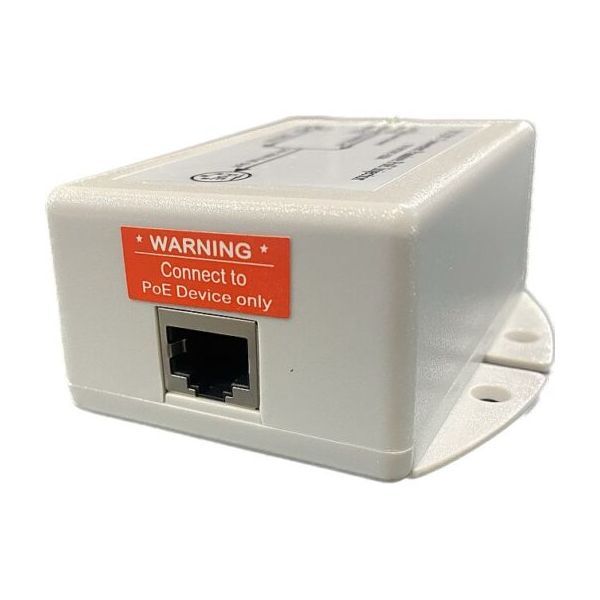

Tycon TP-DCDC-1224 DC-DC Converter 9-36VDC Input 24W PoE Injector
- EhubAmerica SKU
- TP-DCDC-1224
In stock
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon TP-DCDC-1224 converts 9–36VDC input to regulated 24VDC passive PoE output at up to 19W. Features an integrated 10/100Mb PoE injector, dual power inputs, shielded RJ45 connections, and electrical protection.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• DC-to-DC converter with integrated 10/100Mb passive PoE injector
• 9VDC to 36VDC input voltage range
• Regulated 24VDC passive PoE output
• Maximum output power of 19W
• Maximum output current of 0.8A
• Dual isolated inputs for connecting two power sources
• Shielded RJ45 data input and shielded RJ45 data/PoE output
• PoE power supplied on Ethernet pins 4,5 (V+) and 7,8 (V-)
• Short-circuit, over-current, reverse-voltage, and over-voltage protection
• Removable screw-type compression wire terminal
• Maximum input wire size of 12 AWG
• DIN rail mountable using Tycon DIN-ClipKit-UNI adapters
TECHNICAL SPECIFICATIONS
• Model: TP-DCDC-1224
• Product Type: DC-DC Converter with Passive PoE Injector
• DC Input Voltage: 9VDC to 36VDC
• DC Output Voltage: 24VDC passive, ±2.5%
• Maximum Output Current: 0.8A
• Maximum Output Power: 19W
• Data Speed: 10/100Mb
• Data Input / Data-PoE Output Connector: Shielded RJ45
• PoE Pinout: Pins 4,5 (V+); pins 7,8 (V-)
• DC Input Connector: Removable screw-type compression wire terminal
• Maximum Input Wire Size: 12 AWG
• Self-Consumption Power: 1W
• Minimum Efficiency: 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2 and TUV EN60950
• Operating Temperature: -30°C to +60°C / -22°F to +140°F
• Operating Humidity: 5% to 90% RH
• Storage Temperature: -40°C to +80°C / -40°F to +176°F
• MTBF: 166,000 hours
• Dimensions: 85 x 76 x 36 mm / 3.4 x 3 x 1.4 in.
• Weight: 134 g / 4.7 oz.
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• 12V / 24V battery systems
• Wireless access points and client devices
• IP phone systems
• Security camera systems
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon |
| Model | TP-DCDC-1224 |
| Product Type | DC-DC Converter with Integrated PoE Injector |
| Output Power (max) | 19W |
| Self Consumption Power | 1W |
| Power & Electrical | |
| Input Voltage Range | 9–36 VDC |
| Output Voltage | 24V (Passive) |
| Output Voltage Tolerance | ±2.5% |
| Output Current (max) | 0.8A |
| Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| Efficiency (min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| Protections | Short Circuit, Over Current, Reverse Voltage, Over Voltage |
| Networking & Connectivity | |
| PoE Standard | IEEE 802.3af compliant model available |
| Data Connector (Input) | RJ45 (Shielded) |
| Data Connector (Output) | RJ45 (Shielded) |
| Ethernet Speed | 10/100 Mbps |
| PoE Delivery Method | Pins 4, 5 (V+) and 7, 8 (V-) |
| Environmental | |
| Operating Temperature Range | -30 to +60°C |
| EMC Standards | FCC Class B, NE55022 Class B |
| Safety Standards | CSA 22.2, TUV EN60950 |
| Compatibility | |
| DIN Rail Mounting | Supported via DIN-ClipKit-UNI (sold separately) |
