Tycon TP-DCDC-1224G Gigabit PoE Injector 24W 12-48VDC Input
- EhubAmerica SKU
- TP-DCDC-1224G
- 10/100/1000 Mbps Gigabit
In stock
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

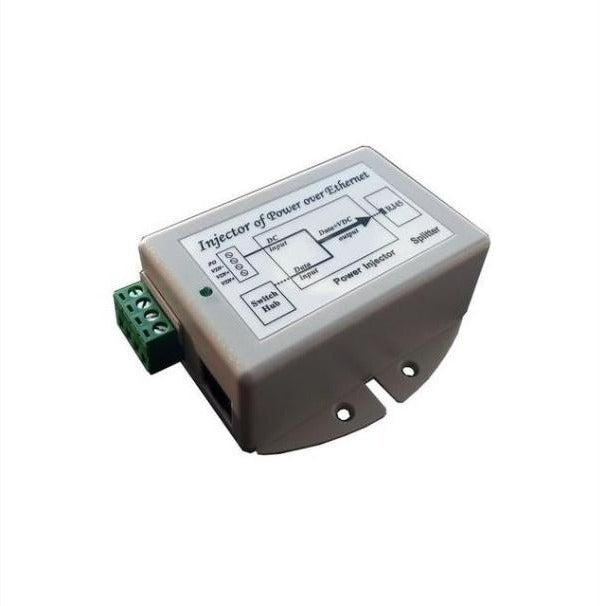

Tycon Gigabit DC-to-DC converter with integrated PoE inserter. Accepts 9–36VDC input and provides regulated 24V passive PoE output up to 19W through a shielded RJ45 connection.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• Integrated 10/100/1000MB Gigabit PoE inserter
• 9–36VDC input voltage range
• Regulated 24V passive PoE output
• Maximum output power of 19W
• Maximum output current of 0.8A
• Dual isolated inputs for connecting two power sources
• Shielded RJ45 data input and data/PoE output
• PoE power supplied on Ethernet pins 4,5 (+) and 7,8 (-)
• Short-circuit, over-current, reverse/over-voltage, surge, and overload protection
• Low self-consumption power
• Compact design
• Designed for high-temperature operation
TECHNICAL SPECIFICATIONS
• Brand: Tycon Power
• Model: TP-DCDC-1224G
• Product Type: Gigabit DC-to-DC Converter / PoE Inserter
• DC Input Voltage: 9–36VDC
• DC Input Connector: Removable screw-type compression wire terminal, 12 AWG maximum
• DC Output Voltage: 24V Passive PoE
• Maximum Output Current: 0.8A
• Maximum Output Power: 19W
• Data Input Connector: Shielded RJ45
• Data/PoE Output Connector: Shielded RJ45
• Ethernet: 10/100/1000MB Gigabit
• PoE Pinout: Pins 4,5 (+); Pins 7,8 (-)
• Self-Consumption Power: 1W
• Minimum Efficiency: 75%
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: UL1950, CSA 22.2, TUV EN60950
• Operating Temperature: -30°C to +60°C (-22°F to +140°F)
• Operating Humidity: 5%–90%
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• MTBF: 166,000 hours
• Dimensions: 85 x 76 x 36mm (3.4 x 3 x 1.4 in)
• Weight: 134g (4.7 oz)
• Warranty: 3 Years
INTENDED USE / APPLICATIONS
• 12V and 24V battery systems
• Vehicle applications
• Wireless access points and client devices
• IP phone systems
• Security camera systems
Specifications
Technical specifications
| General | |
|---|---|
| Model | TP-DCDC-1224G |
| Brand | Tycon |
| Product Type | Gigabit DC to DC Converter with Integrated PoE Injector |
| Physical | |
| Dimensions | 85 x 76 x 36 mm (3.4 x 3 x 1.4 in) |
| Weight | 134 g (4.7 oz) |
| Power & Electrical | |
| DC Input Voltage | 9 VDC – 36 VDC |
| DC Input Current | 2.86 A @ 9V, 0.67 A @ 36V |
| DC Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| DC Output Voltage | 24 V (Passive) |
| Output Current (max) | 0.8 A |
| Output Power (max) | 20 W |
| Self Consumption Power | 1 W |
| Efficiency (min) | 75% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| Networking & Connectivity | |
| Data Input/Output Connector | RJ45 (Shielded) |
| Data Rate | 10/100/1000 Mbps Gigabit |
| PoE Standard | IEEE 802.3af Compliant or Passive PoE |
| PoE Power Pins | Pins 4, 5 (V+) and 7, 8 (V-) |
| Dual Inputs | Two isolated power inputs for primary and backup sources |
| Environmental | |
| Protection | Short Circuit, Over Current, Reverse/Over Voltage Protection |
| EMC Standards | FCC Class B, EN55022 Class B |
| Safety Standards | CSA 22.2, TÜV EN60950 |
