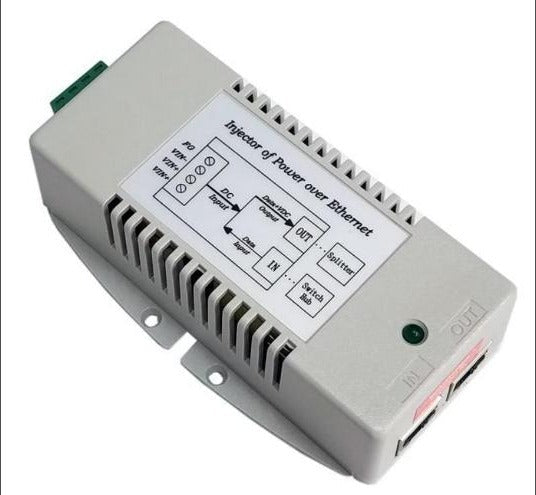

Tycon TP-DCDC-1224G-4P 24V 24W Gigabit Passive PoE Injector
- EhubAmerica SKU
- TP-DCDC-1224G-4P
In stock
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon Power TP-DCDC-1224G-4P accepts 9-36VDC input and provides regulated 24VDC 4-pair Passive PoE output up to 24W, with Gigabit data support, dual isolated power inputs, and integrated PoE insertion.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• 9-36VDC input voltage range
• Regulated 24VDC Passive PoE output
• 4-pair PoE power delivery
• Maximum output power: 24W
• Maximum output current: 1A
• Integrated 10/100/1000MB Gigabit PoE inserter
• Dual isolated inputs for connecting two power sources
• Isolated input and output
• Shielded RJ45 data input and data/PoE output
• Short-circuit, over-current, reverse-voltage, and over-voltage protection
• Built-in low-voltage disconnect
• Surge and overload protection
• High-temperature operation up to +70°C
• All eight Ethernet conductors carry data and PoE power
TECHNICAL SPECIFICATIONS
• Manufacturer: Tycon Power
• Model / Part Number: TP-DCDC-1224G-4P
• DC Input Voltage: 9-36VDC
• Input / Output: Isolated
• DC Input Connector: Removable screw-type compression wire terminal
• Maximum Input Wire Size: 12 AWG
• DC Output Voltage: 24VDC Passive PoE
• PoE Configuration: 4-pair
• Output Current: 1A maximum
• Output Power: 24W maximum
• Ethernet: 10/100/1000MB Gigabit
• Data Input Connector: Shielded RJ45
• Data / PoE Output Connector: Shielded RJ45
• PoE Positive: Ethernet pins 1, 2, 4, and 5
• PoE Negative: Ethernet pins 3, 6, 7, and 8
• Low-Voltage Disconnect: 8.9V
• Low-Voltage Reconnect: 9.02V
• Efficiency: 80% minimum
• Line Regulation: 1%
• Load Regulation: 5%
• Ripple: 1%
• Noise: 1%
• LED Operation: Red = input power on; Green = output connected
• Surge Protection: IEC 61000-4, 15kV air, 8kV contact, 20A 8/20µs lightning
• EMC Standards: FCC Class B, EN55022 Class B
• Safety Standards: CSA 22.2 and TUV EN60950
• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Operating Humidity: 5% to 90%
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• Dimensions: 125 x 75 x 38 mm (4.9 x 3 x 1.5 in.)
• Weight: 300 g (10.6 oz)
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• 12V / 24V battery systems
• Vehicle applications
• UBNT AirFiber-X
• Wireless access points
• Wireless client devices
Specifications
Technical specifications
| General | |
|---|---|
| Model | TP-DCDC-1224G-4P |
| Brand | Tycon |
| Description | 24V 24W Gigabit Passive PoE Injector |
| Physical | |
| Dimensions | 125 x 75 x 38 mm (4.9 x 3 x 1.5") |
| Weight | 300 g (10.6 oz) |
| Power & Electrical | |
| Input Voltage | 9–36 VDC |
| Input Connector | Removable Screw Type Compression Wire Terminal (12 AWG Max) |
| Output Voltage | 24V (Passive) 4 pair |
| Output Current (max) | 1A |
| Output Power (max) | 24W |
| Low Voltage Disconnect | 8.9V |
| Low Voltage Reconnect | 9.02V |
| Efficiency (min) | 80% |
| Line Regulation | 1% |
| Load Regulation | 5% |
| Ripple | 1% |
| Noise | 1% |
| Surge Protection | 15kV (Air), 8kV (Contact), 20A (8/20μs) Lightning per IEC 61000-4 |
| Protections | Short Circuit, Over Current, Reverse/Over Voltage, Built-in Low Battery Disconnect |
| Networking & Connectivity | |
| Data Interface | Gigabit 10/100/1000 Mbps |
| Data Connector (In/Out) | RJ45 (Shielded) |
| PoE Type | 4 Pair Passive |
| PoE Power Pins | Pins 1, 2, 4, 5 (V+); Pins 3, 6, 7, 8 (V−) |
| Environmental | |
| Operating Temperature | −40 to +70°C |
| Operating Humidity | 5%–90% |
| Storage Temperature | −40 to +80°C |
| Compatibility | |
| Input/Output | Isolated (±ground OK) |
| Dual Inputs | Supports 2 power sources (primary with backup) |
