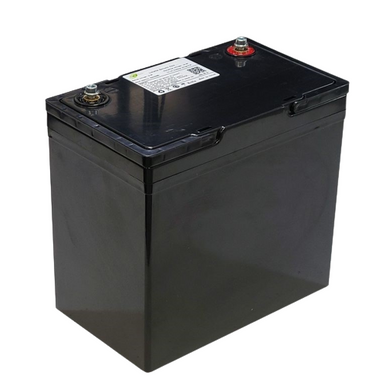

Tycon TPBAT12-50-L LiFePO4 12V 50Ah Lithium Battery
- EhubAmerica SKU
- TPBAT12-50-L
- Lithium Iron Phosphate (LiFePO4)
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
The TPBAT12-50-L LiFePO4 battery is a high reliability drop-in replacement for comparable Lead Acid batteries . It provides >4000 discharge cycles @ 80% discharge, about 20x what a Sealed Lead Acid battery typically provides . It also provides almost 2x usable energy storage over lead acid batteries with the same Ah rating .
PRODUCT TYPE
Batteries
KEY FEATURES
• Longer Cycle Life: Up to 20x over Lead Acid
• Less weight: ~40% less than Lead Acid
• Higher Power: 2x more Watt Hours than Lead Acid
• Stable and Safe Lithium Iron Phosphate (LiFePO4)
• On Board Battery Management (BMS)
• Size is same as comparable Lead Acid Battery
• Drop in Replacement for Lead Acid Battery
• Integrated Carrying Handles
• Remote Power Systems
• Off-Grid Systems
• Lighting
• Backup Power Systems
• Wheel Chairs, Golf Carts, Scooters
• RV and Boat
• 9.5 x 5.4 x 8.2”
• (229 x 138 x 208mm)
• 13.5lb
• (6kg)
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Model: TPBAT12-50-L
• Product Type: Batteries
• Longer Cycle Life: Up to 20x over Lead Acid
• Less weight: ~40% less than Lead Acid
• Higher Power: 2x more Watt Hours than Lead Acid
• Stable and Safe Lithium Iron Phosphate (LiFePO4)
• On Board Battery Management (BMS)
• Size is same as comparable Lead Acid Battery
• Drop in Replacement for Lead Acid Battery
• Integrated Carrying Handles
• Remote Power Systems
• Off-Grid Systems
• Lighting
• Backup Power Systems
• Wheel Chairs, Golf Carts, Scooters
• RV and Boat
• 9.5 x 5.4 x 8.2”
• (229 x 138 x 208mm)
• 13.5lb
• (6kg)
• Nominal Voltage: 12.8V
• Nominal Capacity: 50Ah 640Wh
• Internal Resistance: <30mOhms
• Cycle Life: >4000 Cycles @ 80% DOD
• Self Discharge: <3% per month
• Charge Voltage: 14.6 +/-0.2V
• Charge Current: 10A Recommended, 25A Max
• BMS Charge Cutoff Voltage: 14.6 +/- 0.2V
• Typical Discharge Current: 50A Max
• Peak Discharge Current: 100A for < 3 seconds
• BMS Discharge Cutoff Voltage: 10V
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Product | Tycon 12V 50AH Non-Spillable LiFePO4 Sealed Lithium Battery |
| Brand | Tycon |
| SKU | TPBAT12-50-L |
| Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 50Ah |
| Energy Storage | 640Wh |
| Cycle Life | >4000 cycles @ 80% depth of discharge |
| Self Discharge | <3% per month |
| Physical | |
| Dimensions (L×W×H) | 9.5 × 5.4 × 8.2" (229 × 138 × 208mm) |
| Weight | 13.5 lb (6 kg) |
| Terminals | Two F2 spade terminals |
| Features | Integrated carrying handles |
| Power & Electrical | |
| Internal Resistance | <30 mOhms |
| Charge Voltage | 14.6 ± 0.2V |
| Charge Current (Recommended) | 10A |
| Charge Current (Max) | 25A |
| BMS Charge Cutoff Voltage | 14.6 ± 0.2V |
| Typical Discharge Current (Max) | 50A |
| Peak Discharge Current | 100A for <3 seconds |
| BMS Discharge Cutoff Voltage | 10V |
| Charge Temperature Range | 0–55°C (32–131°F) |
| Discharge Temperature Range | -20–60°C (-4–140°F) |
| Compatibility | |
| Battery Management System (BMS) | Compatible with solar chargers and grid-connect chargers designed for Lead Acid batteries |
| Series/Parallel Configuration | Up to 4 batteries can be connected in series or parallel |
