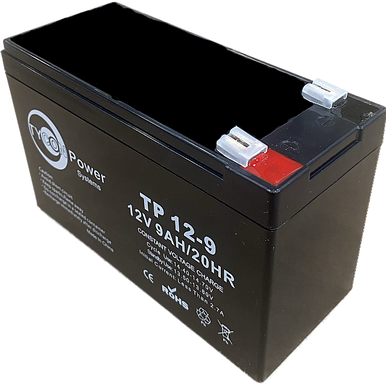

Tycon TPBAT12-9 12V 9Ah Sealed Lead Acid AGM Battery F2
- EhubAmerica SKU
- TPBAT12-9
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon TPBAT12-9 is a 12V valve-regulated sealed lead-acid AGM battery rated at 8.5Ah to 10.5V and 9Ah to 10.0V at the 20-hour rate, with F2 0.25-inch spade terminals and maintenance-free construction.
PRODUCT TYPE
Batteries
KEY FEATURES
• 12V valve-regulated sealed lead-acid rechargeable battery
• Absorbent Glass Mat (AGM) technology
• Sealed and maintenance-free construction
• F2-type 0.25-inch spade terminals
• Safety valve designed to prevent overpressure
• Good deep-discharge recovery performance
• Low self-discharge characteristics
• Highly resistant to vibration and shock
• Designed for long-term operation in harsh environments
• Can be installed in any position without affecting performance or reliability
• ABS housing rated UL94HB
• 5-year specified float life
TECHNICAL SPECIFICATIONS
• Model: TPBAT12-9
• Voltage: 12V
• Capacity, 20-Hour Rate: 8.5Ah to 10.5V; 9Ah to 10.0V
• Battery Type: Valve-Regulated Sealed Lead Acid / VRLA
• Technology: Absorbent Glass Mat / AGM
• Terminals: F2-type 0.25-inch spade connectors
• Float Life: 5 years
• Capacity at 40°C: 102%
• Capacity at 0°C: 85%
• Capacity at -15°C: 65%
• Self-Discharge at 25°C: Less than 3% per month
• Charge Voltage: 14.4V to 15V
• Maximum Charge Current: 2.7A
• Charge Voltage Temperature Compensation: -30mV/°C
• Float Voltage: 13.6V to 13.8V
• Float Voltage Temperature Compensation: -20mV/°C
• Operating Temperature: -40°C to +60°C / -40°F to +140°F
• Housing: ABS, UL94HB
• Dimensions: 151 x 65 x 95 mm / 5.9 x 2.6 x 3.7 in.
• Weight: 2.5 kg / 5.5 lb.
• Manufacturer Warranty: 2 years
INTENDED USE / APPLICATIONS
• Remote equipment power
• Wireless base stations
• Remote sensors
• Surveillance cameras
• Medical equipment
• Backup power systems
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Tycon Power Systems |
| Model | TPBAT12-9 |
| Type/Technology | Valve Regulated Sealed Lead Acid (VRLA) / Absorbent Glass Mat (AGM) |
| Sealed and Maintenance Free | Yes |
| Physical | |
| Dimensions (L×W×H) | 151 × 65 × 95 mm (5.9 × 2.6 × 3.7") |
| Weight | 2.5 kg (5.5 lb) |
| Housing Material | ABS (UL94HB) |
| Terminal Type | F2 type 0.25" spade connectors |
| Power & Electrical | |
| Voltage | 12V |
| Capacity (20hr Rate) | 8.5 Ah to 10.5V; 9 Ah to 10.0V |
| Float Life | 5 years |
| Charge Voltage | 14.4–15V (-30mV/°C); Max Current 2.7A |
| Float Voltage | 13.6–13.8V (-20mV/°C) |
| Self Discharge | <3% per month (at 25°C) |
| Capacity vs Temperature | 40°C = 102%; 0°C = 85%; -15°C = 65% |
| Environmental | |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Vibration & Shock Resistant | Yes |
| Safety Valve | Yes, prevents overpressure |
