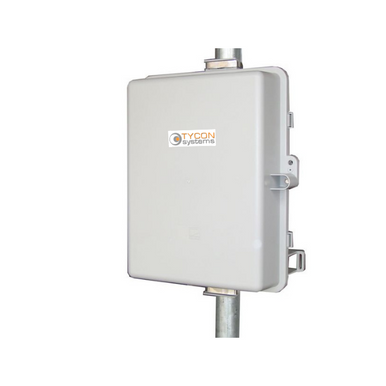

Tycon UPS-PL12-36-120 12VDC 36Ah AGM Battery Backup Power System
- EhubAmerica SKU
- UPS-PL12-36-120
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Tycon UPS-PL12-36-120 outdoor UPS system provides 12VDC battery backup with 36Ah capacity, 432Wh storage, 120W maximum output, AGM batteries, AC/solar power capability, and a weatherproof polycarbonate enclosure.
PRODUCT TYPE
Batteries
KEY FEATURES
• 12VDC outdoor battery backup power system
• 36Ah battery capacity with 432Wh total storage capacity
• 120W maximum output power
• 100W suggested maximum load
• High-quality valve-regulated sealed lead acid AGM batteries
• Weatherproof, UV-resistant polycarbonate outdoor enclosure
• Powered from 120/240VAC mains power and/or solar
• Solar-ready design supports up to a 240W solar panel for the 12V system
• 20A PWM solar controller with status display and load on/off switch
• Advanced charge controller provides overcharge and over-discharge protection
• Controller displays battery voltage, charging current, load current, and temperature
• Interior space provided for customer electronics
• Supports wall or pole mounting
• Battery-powered operation isolates connected equipment from power line surges
• Multiple enclosure ports accommodate CAT5, antenna cables/connectors, and other cabling
• Vented enclosure design helps prevent residual hydrogen gas buildup
TECHNICAL SPECIFICATIONS
• Brand: Tycon
• Product Series: UPSPro 120W
• Model: UPS-PL12-36-120
• Battery Voltage: 12VDC
• Battery Capacity: 36Ah
• Battery Configuration: 4 batteries
• Storage Capacity: 432Wh
• Battery Type: Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM)
• Battery Life: 5 years
• AC Input Voltage: 120/240VAC, 50/60Hz
• Maximum AC Input Current: 2.5A
• Maximum Output Power: 120W
• Suggested Maximum Load: 100W
• Maximum Instantaneous Load: 20A for 500ms
• Controller: 20A PWM solar controller with status display and load on/off switch
• Maximum Solar Panel Size: 240W for 12V system
• Overcharge Protection: 14.4V
• Over-Discharge Protection: 11V
• Over-Discharge Recovery Voltage: 12.3V
• Controller Self Consumption: Less than 0.3W
• Enclosure Type: Polycarbonate
• External Dimensions: 17.5 x 12.5 x 6 in. (445 x 318 x 152mm)
• Internal Dimensions: 14 x 10 x 5 in. (356 x 254 x 127mm)
• Operating Temperature: -30°C to +60°C (-22°F to 140°F)
• System Weight Without Batteries: 6 lb. (1.8kg)
• Battery Weight: 5.5 lb. (2.5kg) each
• Certifications: Individual components have CE certifications; batteries have CE and UL
• Manufacturer Warranty: 3 years
INTENDED USE / APPLICATIONS
• Wireless base stations and clients
• Wireless bridges and repeaters
• Surveillance cameras
• Remote sensors
• Mission-critical outdoor power
• Backup power systems
Specifications
Technical specifications
| General | |
|---|---|
| Product Line | UPSPro 120W series |
| System Voltage | 12VDC |
| Battery Type | Valve Regulated Sealed Lead Acid / Absorbed Glass Mat (AGM) |
| Battery Capacity | 36Ah |
| Storage Capacity | 432Wh |
| Battery Life | 5 Years |
| Physical | |
| Enclosure External Dimensions | 17.5 x 12.5 x 6" (445 x 318 x 152mm) |
| Enclosure Internal Dimensions | 14 x 10 x 5" (356 x 254 x 127mm) |
| System Weight (without batteries) | 6 lb (1.8 kg) |
| Battery Weight (each) | 5.5 lb (2.5 kg) |
| Mounting Options | Wall or Pole Mount |
| Enclosure Rating | Weatherproof, UV resistant, outdoor |
| Power & Electrical | |
| Input Voltage (AC) | 120/240VAC, 50/60Hz, 2.5A Max |
| Max Output Power | 120W |
| Suggested Maximum Load | 100W |
| Maximum Instantaneous Load | 20A at 500msec |
| Controller Type | 20A PWM Solar Controller with Status Display and Load on/off switch |
| Solar Ready | Yes |
