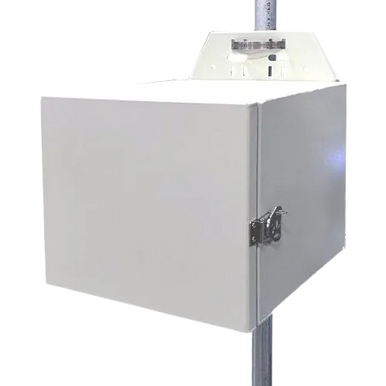

Tycon UPS12-50L-120 120W Lithium UPS System 12V LFP Solar Ready

PRODUCT OVERVIEW

The UPSPro® 120W Lithium series outdoor enclosures are designed for applications that require a backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready so a solar panel can be added as an alternate power source or to extend backup time. Features include an advanced solar battery charge controller with LCD display to provide system information, LVD load control and solar charging capability. The LFP (LiFePO4) Lithium batteries have an embedded BMS (Battery Management System) to maintain proper charging of the Lithium batteries to achieve 4000+ cycle life at 80% discharge. Expected battery life is 10+ years. Enclosures have multiple ports for CAT5 cable, antenna cables/connectors or other cabling.

PRODUCT TYPE

Power Adapters & Chargers

KEY FEATURES

• Solar Ready™
• Weatherproof, UV resistant, outdoor enclosures
• Powered from AC mains power and/or Solar
• LFP (LiFePO4) Lithium Batteries
• Isolates Customer Equipment from Power Line Surges
• Interior space for customer electronics
• Wall or Pole Mounting
• Applications
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Mission critical outdoor power
• Backup Power Systems
• Technical Specification
• Battery Voltage (DC): 12V or 24V
• Input Voltage (AC): 100/240VAC, 47-63Hz, 2A Max.
• Max Output Power: 120W

TECHNICAL SPECIFICATIONS

• Brand: Tycon
• Model: UPS12-50L-120
• Product Type: Batteries
• Solar Ready™
• Weatherproof, UV resistant, outdoor enclosures
• Powered from AC mains power and/or Solar
• LFP (LiFePO4) Lithium Batteries
• Isolates Customer Equipment from Power Line Surges
• Interior space for customer electronics
• Wall or Pole Mounting
• Wireless Base Stations and Clients
• Surveillance Cameras
• Wireless Bridge and Repeaters
• Remote Sensors
• Mission critical outdoor power
• Backup Power Systems
• Battery Voltage (DC): 12V or 24V
• Input Voltage (AC): 100/240VAC, 47-63Hz, 2A Max.
• Max Output Power: 120W
• Suggested Maximum Load: 100W
• Maximum Instantaneous Load: 20A 500msec
• Battery Type LFP (LiFePO4): Lithium without heater
• Battery Life: 10+ Years
• Controller Type: 20A PWM Solar Controller with Status Display and Load on/off switch
• Max Solar Panel Size:12V 240W , 24V 480W
• Controller Display Status: Battery Voltage, Charging Current, Load Current, Temperature
• Overcharge Protection: 14.4V / 28.8V
• Over-discharge protection: 11V / 22V
• Over-discharge recovery voltage: 12.3V / 24.6V
• Controller Self Consumption: <0.3W
• Enclosure Type: SM Aluminum
• Enclosure Size: 12 x 14 x 15' (305 x 356 x 381mm)

INTENDED USE / APPLICATIONS

• Backup, off-grid, or distributed power systems
• Telecommunications and network equipment
• Professional installations requiring compatible power specifications
