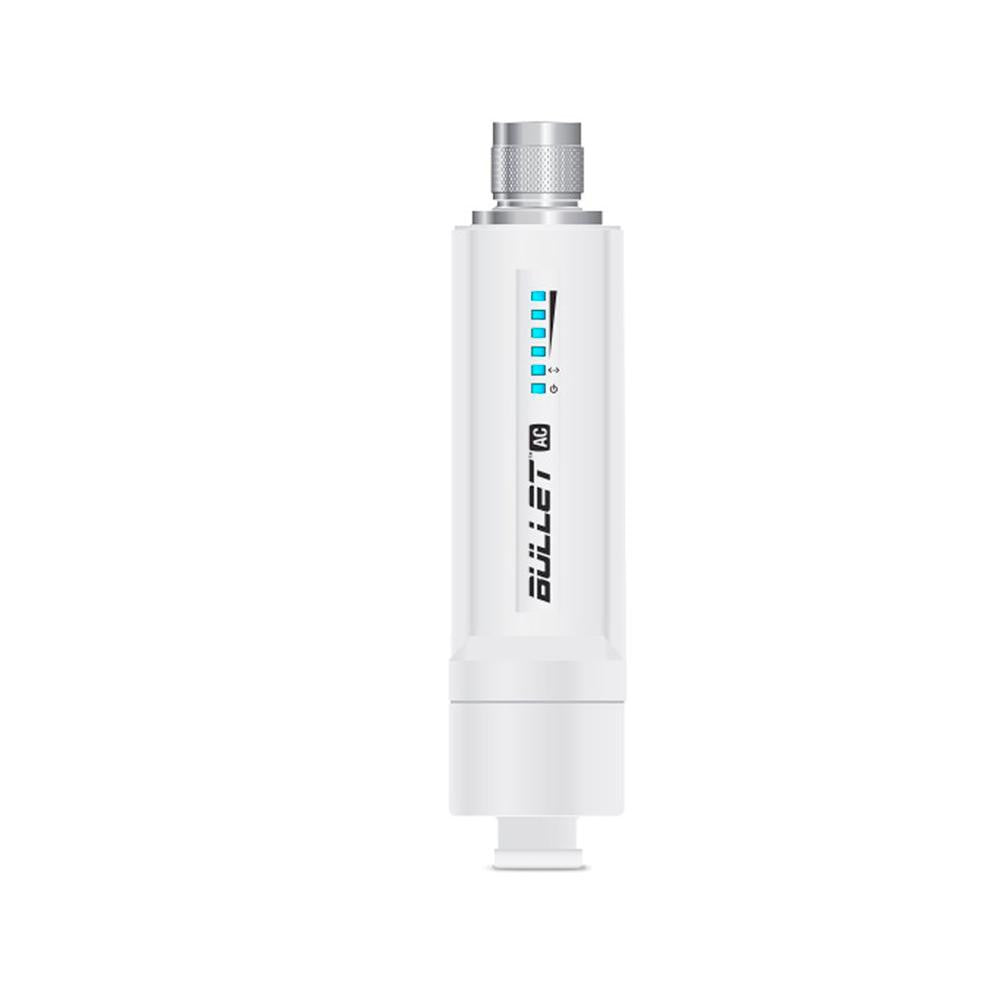

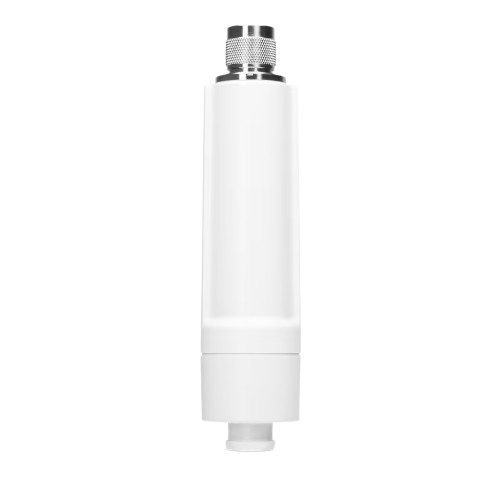

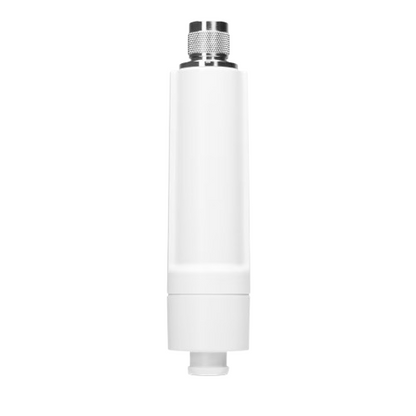

Ubiquiti B-DB-AC airMAX Bullet AC Dual-Band PoE Radio
- EhubAmerica SKU
- B-DB-AC
- 24V passive PoE (pairs 4, 5+; 7, 8 return)
In stock
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti airMAX AC dual-band radio with Gigabit Ethernet, 24V passive PoE, dedicated Wi-Fi for UISP app setup, and an N-type antenna connector. Supports 2.4 GHz and 5 GHz operation.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• Dual-band airMAX AC processor
• Dedicated Wi-Fi for setup with the UISP application
• Gigabit Ethernet connectivity
• Powered by 24V passive PoE
• N-type antenna connector
• 2.4 GHz throughput: 160+ Mbps
• 5 GHz throughput: 300+ Mbps
• US version compatibility: B-DB-AC-US
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Manufacturer Part Number: B-DB-AC
• Networking Interface: (1) 10/100/1000 MbE RJ45 port
• Power Method: 24V passive PoE, pairs 4, 5+; 7, 8 return
• Power Supply Requirement: 24V DC, 0.3A minimum
• Maximum Power Consumption: 7W
• Output Power: 22 dBm
• 2.4 GHz Throughput: 160+ Mbps
• 5 GHz Throughput: 300+ Mbps
• ESD/EMP Protection: Air/contact ±24 kV
• Antenna Connector: N-type
• Shock and Vibration: ETSI300-019-1.4
• Certifications: CE, FCC, IC
• US/CA Frequency Range: 2400–2483.5 MHz
• U-NII-1 Frequency Range: 5150–5250 MHz
• U-NII-2A Frequency Range: 5250–5350 MHz
• U-NII-2C Frequency Range: 5470–5725 MHz
• U-NII-3 Frequency Range: 5725–5850 MHz
• US Version Compatibility: B-DB-AC-US
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | B-DB-AC |
| Product Name | UISP airMAX Bullet AC Dual-Band Radio (International Version) |
| Description | Portable dual-band WiFi radio with Gigabit PoE, compatible with UISP application |
| Networking & Connectivity | |
| Ethernet Port | (1) 10/100/1000 Mbps RJ45 |
| Antenna Connector | N-type |
| Operating Frequency (2.4 GHz) | 2400 - 2483.5 MHz |
| Operating Frequency (5 GHz U-NII-1) | 5150 - 5250 MHz |
| Operating Frequency (5 GHz U-NII-2A) | 5250 - 5350 MHz |
| Operating Frequency (5 GHz U-NII-2C) | 5470 - 5725 MHz |
| Operating Frequency (5 GHz U-NII-3) | 5725 - 5850 MHz |
| Throughput (2.4 GHz) | 160+ Mbps |
| Throughput (5 GHz) | 300+ Mbps |
| Output Power | 22 dBm |
| Power & Electrical | |
| Power Method | 24V passive PoE (pairs 4, 5+; 7, 8 return) |
| Power Supply | 24V DC, 0.3A (minimum) |
| Max. Power Consumption | 7W |
| Environmental | |
| ESD/EMP Protection | Air/contact ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| Compatibility | |
| US Version Model | B-DB-AC-US |
