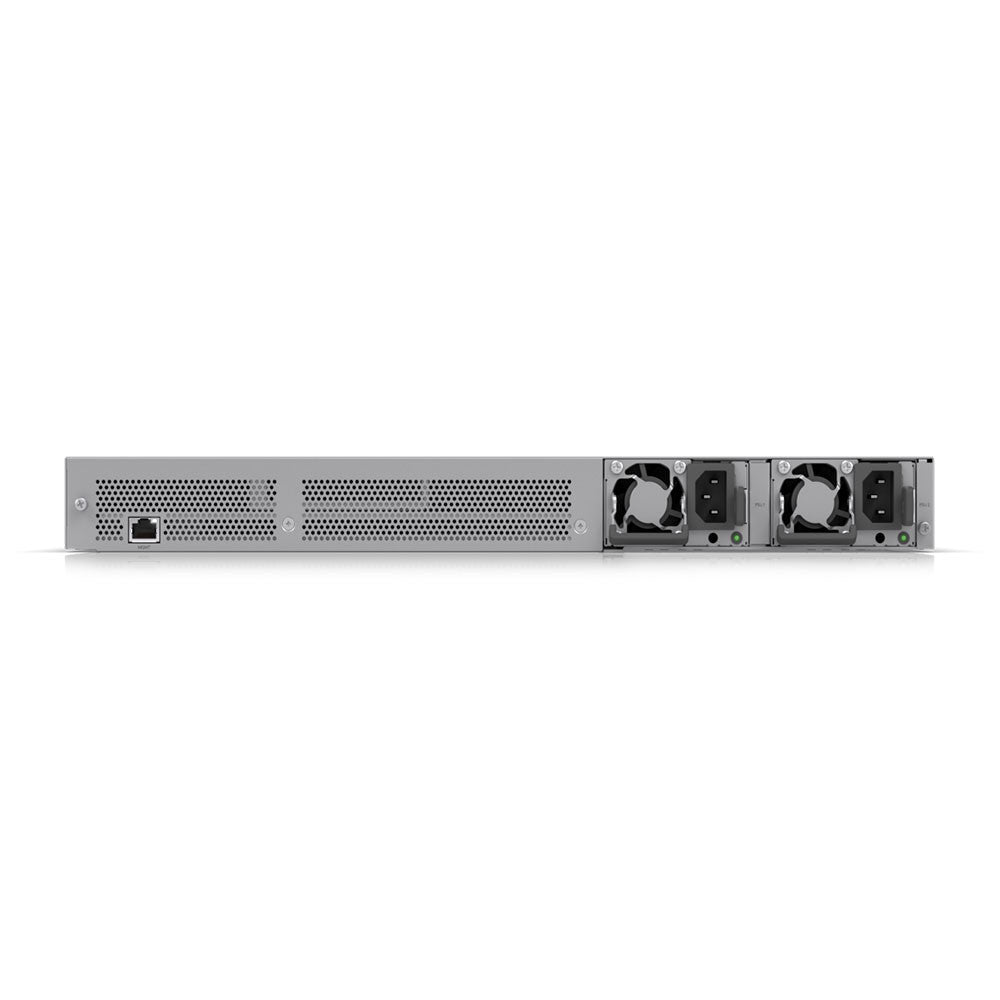

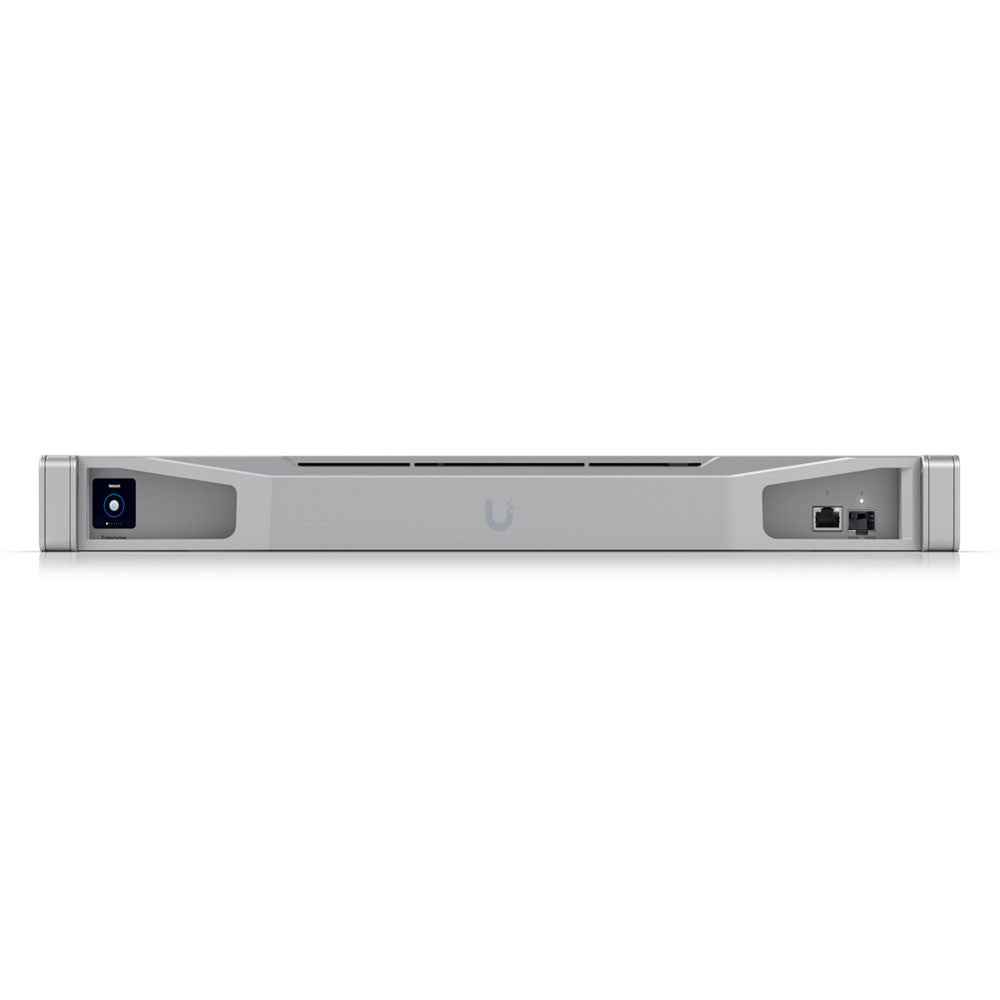

Ubiquiti CK-ENTERPRISE UniFi Network Console 16-core Xeon 1000+ Devices

PRODUCT OVERVIEW

A robust UniFi Network Console designed for managing large-scale networks, supporting over 1000 UniFi devices and more than 10,000 clients. With a powerful 16-core Intel® Xeon® processor, dual redundant power supplies, and a sleek full 1U form factor, this console is built for demanding environments and massive scale deployments.

PRODUCT TYPE

Networking Accessories

KEY FEATURES

• Massive Scale: Capable of managing 1000+ UniFi Network devices and 10,000+ clients.
• High Performance: Powered by a 16-core Intel® Xeon®-SP Gold 5218 processor running at 2.3 GHz.
• Redundant Power Supply: Includes (2) 550W hot-swappable power supplies for maximum reliability.
• Advanced Networking: Equipped with (1) 10G SFP+ and (1) GbE RJ45 LAN port for high-speed connectivity.
• Integrated Management: Bluetooth for instant setup and managed via the UniFi Network application version 7.3.83 and later.
• Full 1U Form Factor: A sleek, rack-mountable design for seamless integration into data centers.
• Mechanical: Dimensions: 787 x 43.7 x 481.4 mm (31 x 1.7 x 19 inches).
• Weight: 13.1 kg (28.9 lb).
• Enclosure Materials: Front panel: Aluminium.
• Chassis: SGCC steel.
• Mount material: SGCC steel.
• Hardware: Dimensions: 787 x 43.7 x 481.4 mm (31 x 1.7 x 19')
• Weight: 13.1 kg (28.9 lb)
• Enclosure Materials: Front Panel: Aluminum
• Chassis: SGCC Steel
• Processor: 16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz
• Memory: (2) 16 GB DDR4 ECC RDIMM
• Storage: (1) 256 GB, M.2 2280 SATA

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: CK-ENTERPRISE
• Product Type: Networking Accessories
• Massive Scale: Capable of managing 1000+ UniFi Network devices and 10,000+ clients.
• High Performance: Powered by a 16-core Intel® Xeon®-SP Gold 5218 processor running at 2.3 GHz.
• Redundant Power Supply: Includes (2) 550W hot-swappable power supplies for maximum reliability.
• Advanced Networking: Equipped with (1) 10G SFP+ and (1) GbE RJ45 LAN port for high-speed connectivity.
• Integrated Management: Bluetooth for instant setup and managed via the UniFi Network application version 7.3.83 and later.
• Full 1U Form Factor: A sleek, rack-mountable design for seamless integration into data centers.
• Mechanical: Dimensions: 787 x 43.7 x 481.4 mm (31 x 1.7 x 19 inches).
• Weight: 13.1 kg (28.9 lb).
• Enclosure Materials: Front panel: Aluminium.
• Chassis: SGCC steel.
• Mount material: SGCC steel.
• Hardware: Dimensions: 787 x 43.7 x 481.4 mm (31 x 1.7 x 19')
• Weight: 13.1 kg (28.9 lb)
• Enclosure Materials: Front Panel: Aluminum
• Chassis: SGCC Steel
• Processor: 16-core Intel® Xeon®-SP Gold 5218 at 2.3 GHz
• Memory: (2) 16 GB DDR4 ECC RDIMM
• Storage: (1) 256 GB, M.2 2280 SATA
• Networking Interface: (1) LAN: GbE RJ45 port
• (1) MGMT LAN: GbE RJ45 port
• (1) SFP+ Interface: 10G SFP+ port
• Power Supply: Universal AC input, 100—240V AC, 7A max, 50/60 Hz
• (2) Hot-swappable AC/DC PSU, 550W
• Operating Temperature: 0 to 35° C (32 to 95° F)
• Operating Humidity: 8 to 90% non-condensing
• Certifications: CE, FCC, IC
• LED Indicators:
• Ethernet and SFP+ Ports: White LED for link/activity
• Power Supply: Off: No AC power present

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
