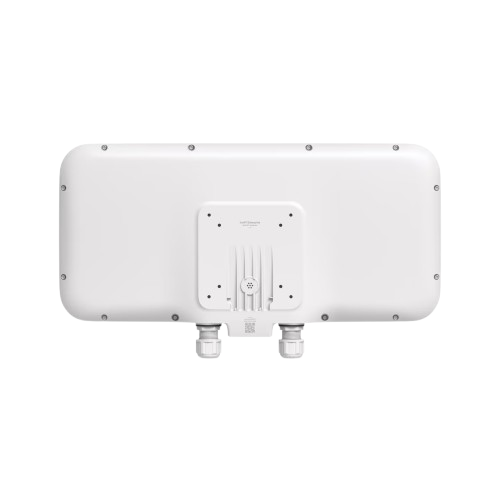

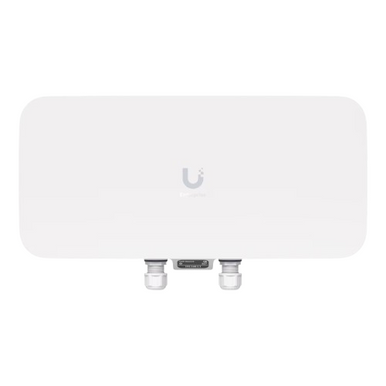

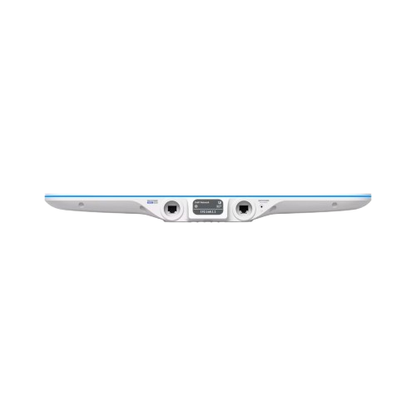

Ubiquiti E7-Audience WiFi 7 AP Tri-Radio 5 6 GHz 10GbE 1500+ Clients IP68 Outdoor

Ubiquiti · Wireless Access Points

Ubiquiti E7-AUDIENCE-US WiFi 7 12-Stream Access Point 10GbE PoE++

EhubAmerica SKU
E7-AUDIENCE-US
  • PoE++
$2,324.99

In stock

Warranty
Manufacturer warranty

Need project or contract pricing?

Request project pricing

Not sure it fits your system? Check compatibility

Overview

What it is and who it is for

PRODUCT OVERVIEW

Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

PRODUCT TYPE

Wireless Access Points

KEY FEATURES

  • 12-stream WiFi 7 access point
  • Tri-radio 5/6 GHz
  • 10GbE uplink
  • 1,500+ connected devices
  • 465+m (5000+ft) open space coverage
  • Technical Specification
  • Overview: Dimensions: Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7')
  • Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9')
  • WiFi Standard: WiFi 7
  • Spatial Streams: 12
  • Coverage Area: 465 m² (5,000 ft²)
  • Max. Client Count: 1500+
  • Uplink: 10 GbE
  • 1 GbE
  • Mounting: Wall, Pole (Mounts Included), VESA (Optional)
  • Weatherproofing: IP68
  • Power Method: PoE++
  • Performance: MIMO: 6 GHz: Low / High band: 4 x 4 (DL/UL MU-MIMO)

TECHNICAL SPECIFICATIONS

  • Brand: Ubiquiti
  • Model: E7-AUDIENCE-US
  • Product Type: Wireless Access Points
  • 12-stream WiFi 7 access point
  • Tri-radio 5/6 GHz
  • 10GbE uplink
  • 1,500+ connected devices
  • 465+m (5000+ft) open space coverage
  • Overview: Dimensions: Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7')
  • Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9')
  • WiFi Standard: WiFi 7
  • Spatial Streams: 12
  • Coverage Area: 465 m² (5,000 ft²)
  • Max. Client Count: 1500+
  • Uplink: 10 GbE
  • 1 GbE
  • Mounting: Wall, Pole (Mounts Included), VESA (Optional)
  • Weatherproofing: IP68
  • Power Method: PoE++
  • Performance: MIMO: 6 GHz: Low / High band: 4 x 4 (DL/UL MU-MIMO)
  • 5 GHz: 4 x 4 (DL/UL MU-MIMO)
  • Max. Data Rate: 6 GHz: Low / High band: 11.5 Gbps (BW320)
  • 5 GHz: 8.6 Gbps (BW240)
  • Antenna Gain: 6 GHz: Directional internal: 15 dBi, 50° x 50°
  • Directional internal: 11 dBi, 90° x 90°
  • 5 GHz: Directional internal: 15 dBi, 50° x 50°
  • Max. TX Power 6 GHz: Low / High band: 30 dBm
  • (36 dBm EIRP)
  • 5 GHz: 30 dBm
  • Max. BSSIDs: 8 per Radio
  • Supported Data Rates: 802.11be (WiFi 7): 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
  • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

INTENDED USE / APPLICATIONS

  • Outdoor or indoor wireless networking, as specified
  • Point-to-point or point-to-multipoint deployments where compatible
  • Professional network installations

Specifications

Technical specifications

Ubiquiti E7-AUDIENCE-US WiFi 7 12-Stream Access Point 10GbE PoE++
General
WiFi Standard WiFi 7
Spatial Streams 12
Max. Client Count 1,500+
Coverage Area 465 m² (5,000 ft²)
Max. BSSIDs per Radio 8
Physical
Device Dimensions 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7 in)
Bracket Dimensions 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9 in)
Mounting Wall, Pole (Mounts Included), VESA (Optional)
Weatherproofing IP68
Power & Electrical
Power Method PoE++
Uplink 10 GbE, 1 GbE
Wireless / RF
6 GHz MIMO 4 x 4 (DL/UL MU-MIMO) – Low / High band
5 GHz MIMO 4 x 4 (DL/UL MU-MIMO)
Max. Data Rate – 6 GHz 11.5 Gbps (BW320) – Low / High band
Max. Data Rate – 5 GHz 8.6 Gbps (BW240)
Max. TX Power – 6 GHz 30 dBm (36 dBm EIRP) – Low / High band
Max. TX Power – 5 GHz 30 dBm
Antenna Gain – 6 GHz 15 dBi (50° x 50°), 11 dBi (90° x 90°) – Directional Internal
Antenna Gain – 5 GHz 15 dBi (50° x 50°), 11 dBi (90° x 90°) – Directional Internal
Supported Data Rates – 802.11be (WiFi 7) 7.3 Mbps to 11.5 Gbps (MCS0–MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
Supported Data Rates – 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0+)
