Ubiquiti · Routers and Switches
Ubiquiti ECS-24-PoE 24-Port PoE+++ Layer 3 Switch 10GbE 25G SFP28
- EhubAmerica SKU
- ECS-24-PoE
- Rack Mount (1U, Full-Depth)
$2,905.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti ECS-24-PoE enterprise Layer 3 switch with 24 PoE+++ RJ45 ports, including 16 multi-gigabit 10GbE ports, two 25G SFP28 ports, 460 Gbps switching capacity, hot-swappable power supplies, and redundant fans.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
TECHNICAL SPECIFICATIONS
Specifications
Technical specifications
| General | |
|---|---|
| Model | ECS-24-PoE |
| Brand | Ubiquiti |
| Product Name | Enterprise Campus 24 PoE |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Layer 3 Switching | Yes |
| Etherlighting™ | Yes |
| Physical | |
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5 in) |

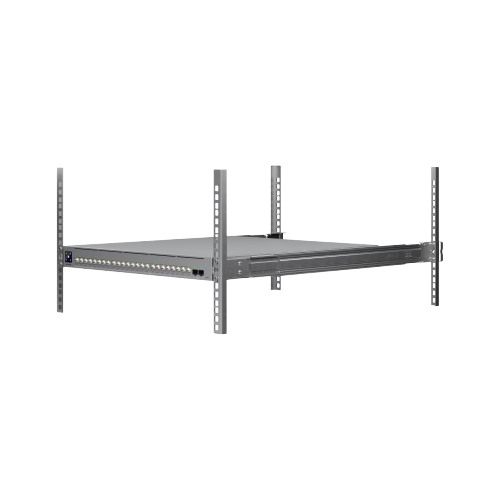

| Mounting | 4-post rack, or center-mount bracket/cantilever shelf on 2-post racks recommended |
| Hot-Swappable Fan Modules | 4 |
| Hot-Swappable Power Modules | 2 |
| Power & Electrical | |
| Power Module Options | 600W or 1,200W (sold separately) |
| Total PoE Availability (100-240V AC, Shared Mode) | 1,050W with (2) 600W modules |
| Total PoE Availability (100-240V AC, Redundant Mode) | 450W with (2) 600W modules |
| Total PoE Availability (200-240V AC, Shared Mode) | 2,250W with (2) 1,200W modules |
| Total PoE Availability (100-120V AC, Shared Mode) | 1,850W with (2) 1,200W modules |
| Total PoE Availability (200-240V AC, Redundant Mode) | 1,050W with (2) 1,200W modules |
| Total PoE Availability (100-120V AC, Redundant Mode) | 850W with (2) 1,200W modules |
| Max PoE Output | PoE+++ |
| Networking & Connectivity | |
| 2.5 GbE RJ45 Ports | 8 (all PoE+++, multi-speed: 2.5G/1G/100M/10M) |
| 10 GbE RJ45 Ports | 16 (all PoE+++, multi-speed: 10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 Ports | 2 (multi-speed: 25G/10G/1G) |
| Management | 1.3 in touchscreen with AR switch management |
| Reset Button | Yes |
