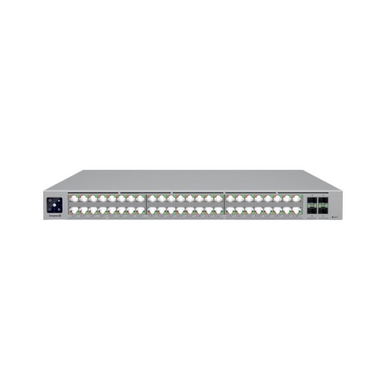

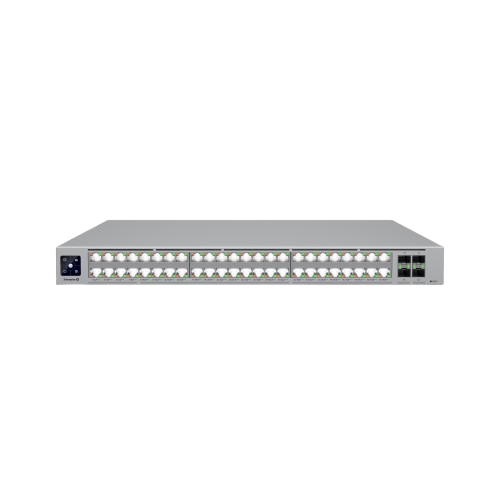

Ubiquiti ECS-48-POE 48-Port PoE+++ 10GbE Layer 3 Enterprise Switch
- EhubAmerica SKU
- ECS-48-POE
- Rack mount (1U, Full-Depth)
$4,068.99
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design
PRODUCT TYPE
Routers and Switches
KEY FEATURES
- 1.3' touchscreen with AR switch management
- (16) Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
- (32) Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5G/1G/100M/10M)
- 1.150W total PoE supply
- (4)25G SFP28 ports
- Reset button
- (4) Hot-swappable fan modules
- Layer 3 switching features
- (2) Hot-swappable 1.200W power modules
- Technical Specification
- Overview: Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5')
- Port Layout: 2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M)
- 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28: 4 (25G/10G/1G)
- 100G QSFP28: 2 (100G)
- Max. PoE Output: Up to PoE+++
- Total PoE Availability: 200-240V AC Shared Mode: 2,150W
- 100-120V AC Shared Mode: 1,750W
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: ECS-48-POE
- Product Type: Fiber
- 1.3' touchscreen with AR switch management
- (16) Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
- (32) Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5G/1G/100M/10M)
- 1.150W total PoE supply
- (4)25G SFP28 ports
- Reset button
- (4) Hot-swappable fan modules
- Layer 3 switching features
- (2) Hot-swappable 1.200W power modules
- Overview: Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5')
- Port Layout: 2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M)
- 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
- 25G SFP28: 4 (25G/10G/1G)
- 100G QSFP28: 2 (100G)
- Max. PoE Output: Up to PoE+++
- Total PoE Availability: 200-240V AC Shared Mode: 2,150W
- 100-120V AC Shared Mode: 1,750W
- 200-240V AC Redundant Mode: 950W
- 100-120V AC Redundant Mode: 750W
- Redundancy: (2) Hot-Swappable PSUs
- (4) Hot-Swappable Fans
- Layer 3: ✓
- Form Factor: Rack mount (1U, Full-Depth)
- Etherlighting™: ✓
- Performance: Switching Capacity: 920 Gbps
- Total Non-Blocking Throughput: 460 Gbps
- Forwarding Rate: 684 Mpps
- Supported VLANs: 1,000
- MAC Address Table Size: 128,000
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| Ubiquiti ECS-48-POE Technical Specifications | |
|---|---|
| General | |
| Model | ECS-48-POE |
| Product Name | Enterprise Campus 48 PoE |
| Form Factor | Rack mount (1U, Full-Depth) |
| Layer 3 Switching | Yes |
| Etherlighting™ | Yes |
| Physical | |
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |

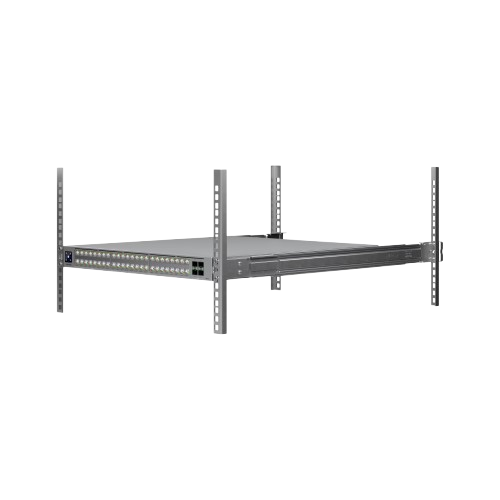

| Mounting | 4-post rack, center-mount bracket, or cantilever shelf on 2-post racks |
| Power & Electrical | |
| Power Modules | 2 Hot-swappable 1,200W modules |
| Total PoE Availability (200-240V AC, Shared Mode) | 2,150W |
| Total PoE Availability (100-120V AC, Shared Mode) | 1,750W |
| Total PoE Availability (200-240V AC, Redundant Mode) | 950W |
| Total PoE Availability (100-120V AC, Redundant Mode) | 750W |
| Max. PoE Output | PoE+++ |
| Networking & Connectivity | |
| 2.5 GbE RJ45 Ports | 16 (PoE+++, Multi-speed: 2.5G/1G/100M/10M) |
| 10 GbE RJ45 Ports | 32 (PoE+++, Multi-speed: 10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 Ports | 4 (25G/10G/1G) |
| 100G QSFP28 Ports | 2 (100G) |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| ARP Entries | 128,000 |

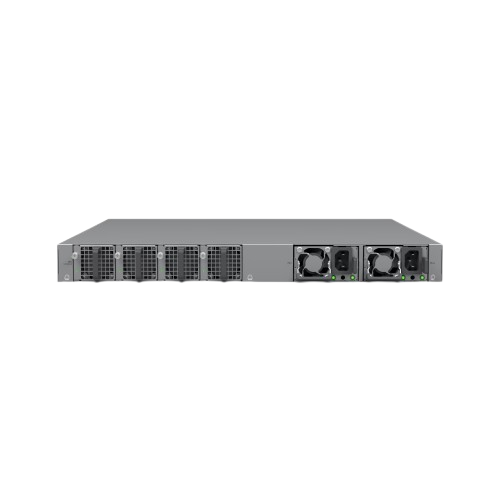

| Redundancy | 2 Hot-swappable PSUs, 4 Hot-swappable fan modules |
| Compatibility | |
| Management Interface | 1.3" touchscreen with AR switch management |
| Recommended Pairing | Enterprise Campus Aggregation |
