Ubiquiti ES-5XP 5-Port Gigabit PoE Switch 24V/48V
- EhubAmerica SKU
- ES-5XP
- Wall-mountable
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

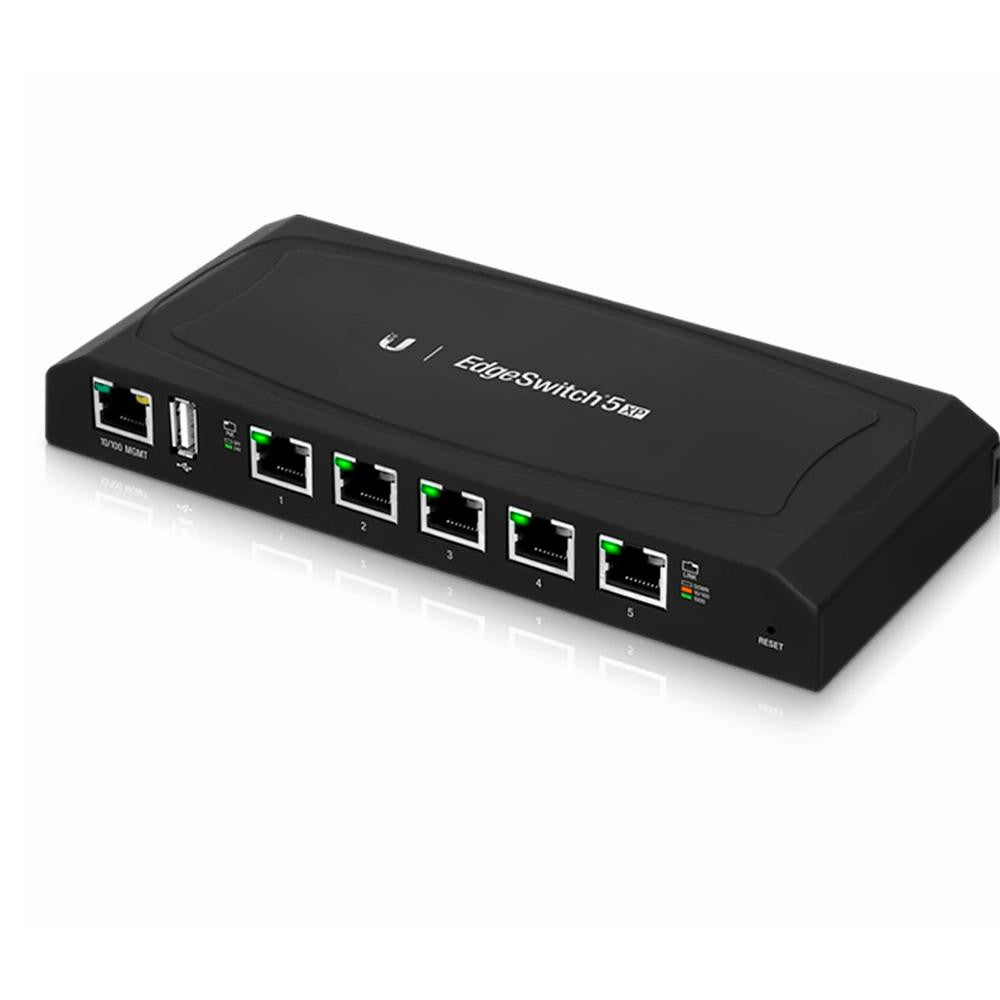

Ubiquiti EdgeSwitch 5XP managed switch with five 10/100/1000 Ethernet data ports, configurable 24V passive PoE, dedicated 10/100 management port, and wall-mount capability.
PRODUCT TYPE
Routers and Switches
KEY FEATURES
• (5) 10/100/1000 Ethernet data ports
• (1) 10/100 Ethernet management port
• Configurable 24V passive PoE per data port
• Maximum PoE wattage per data port: 11.5 W
• EdgeSwitch XP Configuration Interface
• VLAN configuration
• STP and RSTP support
• Jumbo Frame support
• Port monitoring
• Ping Watchdog
• Configurable alerts
• Wall-mountable
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model: EdgeSwitch 5XP
• Part Number: ES-5XP
• Data Ports: (5) 10/100/1000 Ethernet
• Management Port: (1) 10/100 Ethernet
• PoE Method: Passive
• PoE Configuration: Off / 24V per data port
• PoE Output Voltage Range: 22–24VDC
• Maximum PoE Wattage Per Data Port: 11.5 W
• Power Input: 24VDC, 2.5A power adapter
• Maximum Power Consumption: 60 W
• Processor: MIPS 24K, 400 MHz
• System Memory: 64 MB
• Code Storage: 8 MB
• USB Port: USB 2.0 Type A, reserved for future use
• ESD Rating: 24 kV Air / 24 kV Contact
• Dimensions: 197 x 87.5 x 27.3 mm
• Weight: 250 g
• Wall-Mount: Yes
• Operating Temperature: -25 to 55°C (-13 to 131°F)
• Operating Humidity: 90% non-condensing
• Certifications: CE, FCC, IC
INTENDED USE / APPLICATIONS
• Providing Gigabit Ethernet connectivity and configurable passive PoE to attached Ubiquiti devices and other devices that support passive PoE
• Connecting both PoE and non-PoE devices through individually configurable data ports
Specifications
Technical specifications

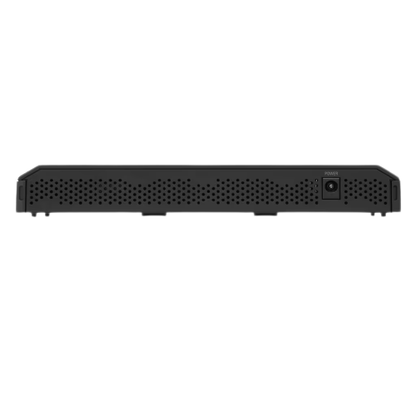

| Ubiquiti UISP EdgeSwitch Gigabit PoE 5 Ports | |
|---|---|
| General | |
| SKU | ES-5XP |
| Processor | MIPS 24K, 400 MHz |
| System Memory | 64 MB |
| Code Storage | 8 MB |
| Physical | |
| Dimensions | 197 x 87.5 x 27.3 mm (7.76 x 7.28 x 1.61") |
| Weight | 250 g (8.82 oz) |
| Form Factor | Wall-mountable |
| Power & Electrical | |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Max. Power Consumption | 60W |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 11.5W |
| PoE Method | Passive |
| ESD Rating | ±24 kV Air/Contact |
| Networking & Connectivity | |
| Management Interface | (1) 10/100 Ethernet Port |
| Data Ports | (5) 10/100/1000 Gigabit Ethernet Ports |
| PoE Configuration | Configurable per port (Off/24V) |
| USB Port | 2.0 Type A (Reserved for Future Use) |
| Environmental | |
| Operating Humidity | 90% Noncondensing |
