Ubiquiti LBE-5AC-XR-US 5GHz 22dBi Wireless Client PoE Injector
- EhubAmerica SKU
- LBE-5AC-XR-US
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW

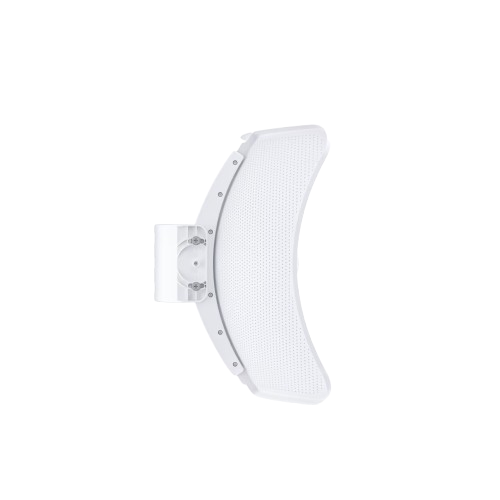

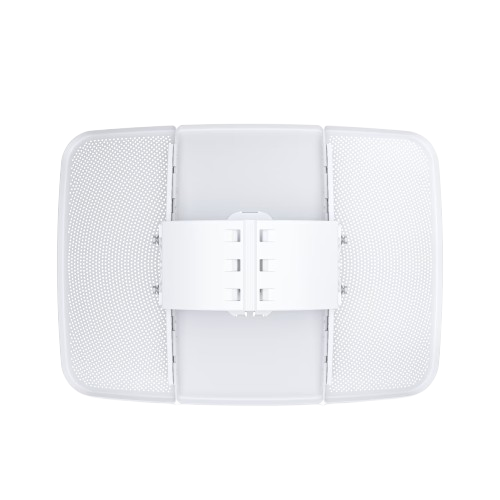

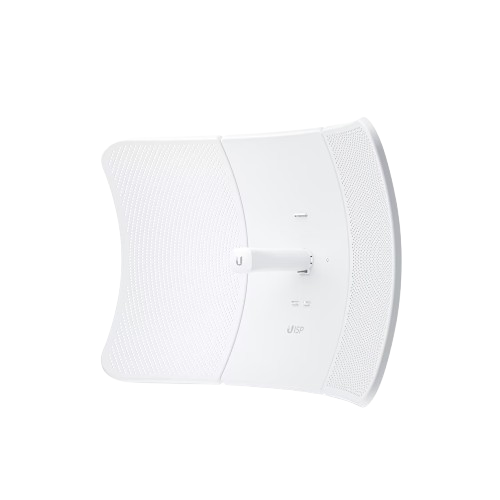

Ubiquiti LBE-5AC-XR-US LiteBeam 5AC XR is an outdoor 5 GHz airMAX wireless CPE with a 29 dBi antenna, 450+ Mbps throughput, Gigabit Ethernet, PtP/PtMP operation, IPX6 weatherproofing, and passive PoE power.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• 5 GHz airMAX LiteBeam AC Extreme-Range wireless CPE
• Designed for extremely long-distance outdoor wireless links
• 29 dBi integrated high-gain antenna
• 450+ Mbps maximum throughput
• Supports Point-to-Point and Point-to-MultiPoint operating modes
• (1) Gigabit Ethernet RJ45 interface
• 10/20/30/40/50/60/80 MHz channel bandwidth
• 25 dBm maximum conducted TX power
• 20 dB antenna isolation
• Dedicated 2.4 GHz management radio
• UISP Mobile app support for device setup
• WPA2-PSK AES encryption
• airView spectrum analysis utility
• Antenna alignment, discovery, speed test, ping, and traceroute utilities
• Integrated pole mount
• IPX6 weatherproofing
• Passive PoE power
• 24V DC, 0.5A Gigabit PoE adapter included
• NDAA compliant
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model: LBE-5AC-XR
• US Part Number: LBE-5AC-XR-US
• Product Family: airMAX LiteBeam 5AC Extreme-Range
• Operating Modes: PtP, PtMP
• Supported Frequency Range: 5.15-5.85 GHz, subject to regulatory region
• Maximum Conducted TX Power: 25 dBm
• Antenna Gain: 29 dBi
• Antenna Isolation: 20 dB
• Management Radio: 2400-2483.5 MHz
• Channel Bandwidth: 10/20/30/40/50/60/80 MHz
• Maximum Throughput: 450+ Mbps
• Encryption: WPA2-PSK (AES)
• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE, 2-pair (4, 5+; 7, 8- return)
• Power Supply: 24V DC, 0.5A Gigabit PoE adapter
• PoE Adapter Included: Yes
• Supported Voltage Range: 22-27V DC
• Maximum Power Consumption: 7W
• Dimensions: 747 x 525 x 347 mm (29.4 x 20.7 x 13.7 in)
• Weight: 3.2 kg (7.1 lb)
• Enclosure Materials: Aluminum alloy and UV-stabilized polycarbonate
• Mount Material: UV-stabilized polycarbonate
• Mounting: Integrated pole mount
• Compatible Pole Diameter: 35-60 mm (1.38-2.36 in)
• Wind Loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
• Weatherproofing: IPX6
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5% to 95% noncondensing
• Certifications: FCC, IC, CE
• NDAA Compliant: Yes
INTENDED USE / APPLICATIONS
• Extremely long-distance outdoor wireless links
• Point-to-Point wireless links
• Point-to-MultiPoint wireless client deployments
• Outdoor airMAX wireless network installations
• Pole-mounted wireless CPE applications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | LBE-5AC-XR-US |
| SKU | LBE-5AC-XR-US |
| Product Type | 5 GHz Wireless Client |
| Technology | LTU (point-to-multipoint) |
| Throughput | 550 Mbps TCP/IP |
| Physical | |
| Feed Dimensions | 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21 in) |
| Antenna Dimensions | 358 x 271.95 x 288.5 mm (14.09 x 10.71 x 11.36 in) |
| Feed Weight | 215 g (7.58 oz) |
| Antenna Weight | 890 g (1.96 lb) |
| Total Weight with Mount | 1.07 kg (2.36 lb) |
| Enclosure Material | UV-stabilized polycarbonate |
| Wind Loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Wireless / RF | |
| Frequency | 5 GHz |
| Antenna Gain | 22 dBi |
| Antenna Technology | InnerFeed® |
| Channel Bandwidth Support | 10/20/30/40/50 MHz (up to 100 MHz with newer firmware) |
| Operational Modes | Router and Bridge modes |
| Environmental | |
| Weatherproofing | IPX6 |
| Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| Compatible Base Stations | LTU Rocket base stations only |
| Not Compatible | airMAX, airMAX AC networks |
| Networking & Connectivity | |
| Management | UISP web and mobile application |
| Setup Method | Bluetooth-powered |
