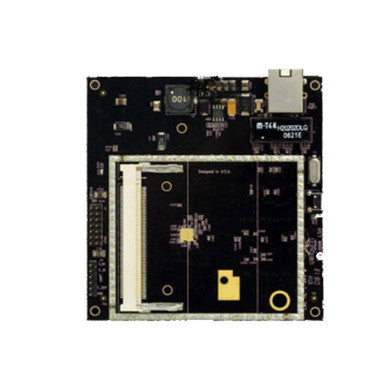

Ubiquiti LS-SR71 LiteStation SR71 300MHz Mini-PCI Router PCB
- EhubAmerica SKU
- LS-SR71
- Passive Power over Ethernet (pairs 4,5+; 7,8 return)
$77.53
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti LiteStation-SR71 PCB 1MiniPCI 2 Ethernet LS-SR71
PRODUCT TYPE
Networking Accessories
KEY FEATURES
- Processor Specs: Atheros AR7131 MIPS 300MHz
- Memory Information: 32MB SDRAM, 8MB Flash
- Serial Interface: On board RS232 with DB9 conenctor
- PCI Support: 32-bit mini-PCI Type IIIA
- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
- Approvals: FCC,CE
- RoHS Compliance: YES
- Dimensions: 4.2 in. length x 3.5 in. height x 0.6 in. width
- Weight: 0.2 lbs
- Max Power Consumption: 4 Watts
- Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
- DC Voltage Rating: 5-24V (18V max recommended)
- ESD/EMP Protection: Transient Voltage Supression at POE port
- Operating Temperature: -40C to 85C (System PCB optimized for hi-temp)
- System LED's: Power, LAN, WAN
- Antenna Align / Sig Strength LED's: Software adjustable to corresponding to custom RSSI levels
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: LS-SR71
- Product Type: Routers/Switches
- Processor Specs: Atheros AR7131 MIPS 300MHz
- Memory Information: 32MB SDRAM, 8MB Flash
- Serial Interface: On board RS232 with DB9 conenctor
- PCI Support: 32-bit mini-PCI Type IIIA
- Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
- Approvals: FCC,CE
- RoHS Compliance: YES
- Dimensions: 4.2 in. length x 3.5 in. height x 0.6 in. width
- Weight: 0.2 lbs
- Max Power Consumption: 4 Watts
- Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
- DC Voltage Rating: 5-24V (18V max recommended)
- ESD/EMP Protection: Transient Voltage Supression at POE port
- Operating Temperature: -40C to 85C (System PCB optimized for hi-temp)
- System LED's: Power, LAN, WAN
- Antenna Align / Sig Strength LED's: Software adjustable to corresponding to custom RSSI levels
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | LiteStation SR71 |
| SKU | LS-SR71 |
| MFR Part Number | LS-SR71 |
| Processor | Atheros AR7131 MIPS 300MHz |
| Memory | 32MB SDRAM, 8MB Flash |
| Approvals | FCC, CE |
| RoHS Compliant | Yes |
| Physical | |
| Dimensions | 4.2 in. length × 3.5 in. height × 0.6 in. width |
| Weight | 0.2 lbs |
| Serial Interface | On-board RS232 with DB9 connector |
| Mini-PCI Support | 32-bit Type IIIA |
| Power & Electrical | |
| Max Power Consumption | 4 Watts |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| DC Voltage Rating | 5–24V (18V max recommended) |
| ESD/EMP Protection | Transient Voltage Suppression at PoE port |
| Networking & Connectivity | |
| Ethernet Interface | 1× 10/100 BASE-TX (Cat. 5, RJ-45) |
| Environmental | |
| Operating Temperature | −40°C to 85°C |
| System LEDs | Power, LAN, WAN |
| Antenna Align/Signal Strength LEDs | Software adjustable to corresponding custom RSSI levels |
