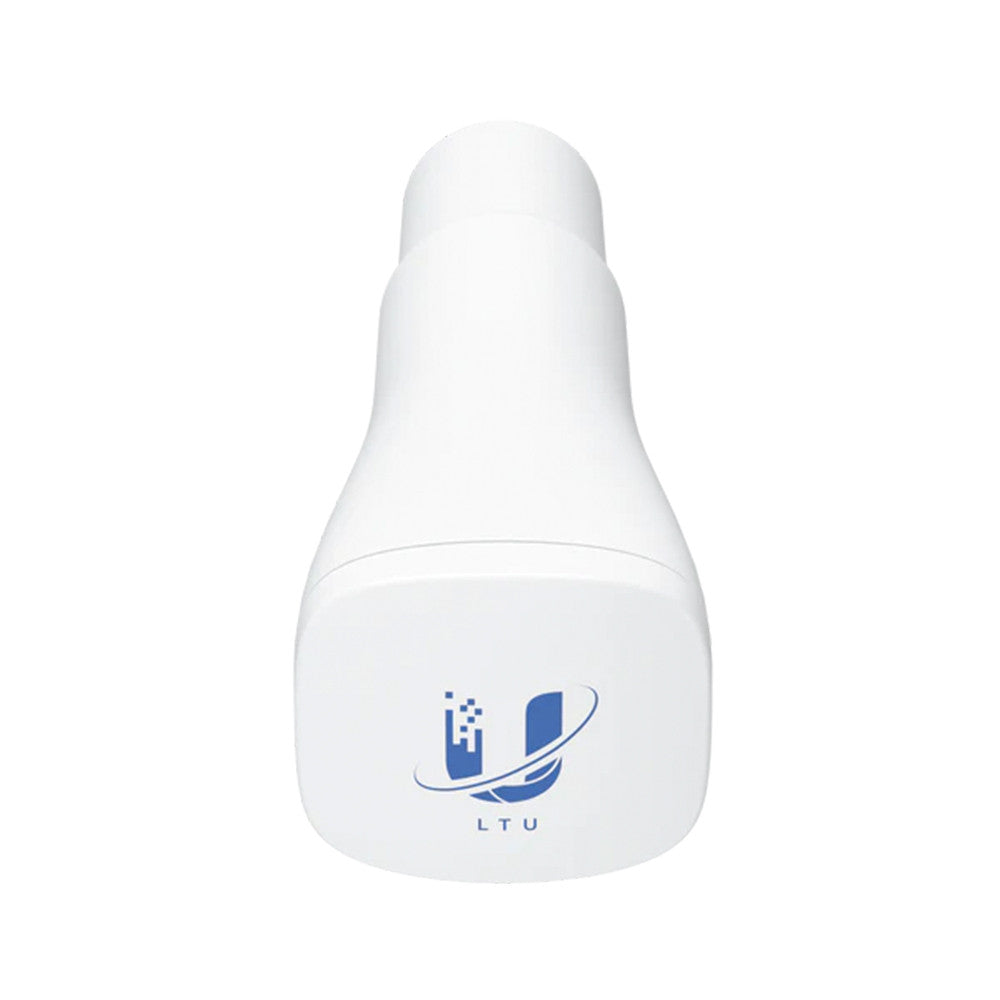

Ubiquiti LTU-Instant-5-US (5-Pack) 5GHz PtMP Client 900Mbps 22dBi
- EhubAmerica SKU
- LTU-Instant-5-US
- 5 GHz
- Passive PoE 2-pair (4, 5+; 7, 8-)
$564.99
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
5 GHz LTU® client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
- Proprietary Ubiquiti LTU core processor
- 22 dBi high-gain antenna with InnerFeed® technology
- Easily integrates with LBE 5AC Gen?2 deployments
- Channel width flexibility (10/20/30/40/50/60/80/100 MHz* bandwidth)
- Configuration management from the AP side
- Router mode support.
- Frequency splitting.
- Quick, Bluetooth-powered setup via the UISP Mobile app
- Includes (5) feeds and (5) PoE adapters

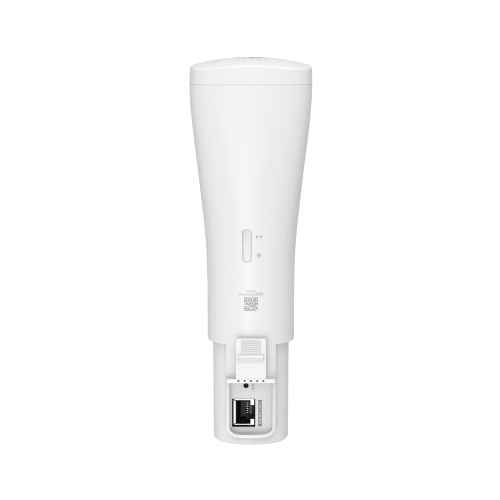

- Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21")
- Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71x 11.36")
- Feed: 215 g (7.58 oz)
- Antenna: 890 g (1.96 lb)
- Antenna with mount: 1.07 kg (2.36 lb)
- International version LTU-Instant-5
- Specifications Enclosure material: UV-stabilized polycarbonate
- Wind loading: 275 N at 200 km/h (61.8 lbf at 125 mph)
- Weatherproofing: IPX6
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: LTU-Instant-5-US
- Product Type: Routers/Switches
- Proprietary Ubiquiti LTU core processor
- 22 dBi high-gain antenna with InnerFeed® technology
- Easily integrates with LBE 5AC Gen?2 deployments
- Channel width flexibility (10/20/30/40/50/60/80/100 MHz* bandwidth)
- Configuration management from the AP side
- Router mode support.
- Frequency splitting.
- Quick, Bluetooth-powered setup via the UISP Mobile app
- Includes (5) feeds and (5) PoE adapters
- Feed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21")
- Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71x 11.36")
- Feed: 215 g (7.58 oz)
- Antenna: 890 g (1.96 lb)
- Antenna with mount: 1.07 kg (2.36 lb)
- International version LTU-Instant-5
- Specifications Enclosure material: UV-stabilized polycarbonate
- Wind loading: 275 N at 200 km/h (61.8 lbf at 125 mph)
- Weatherproofing: IPX6
- Hardware Networking interface: (1) GbE RJ45 port
- Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
- Power supply: 24V, 0.5A Gigabit PoE adapter (included)
- Supported voltage range: 22—26V DC
- Max. power consumption: 8.5W
- RF connections: Internal
- LEDs: Power/Ethernet
- Operating temperature: -40 to 60° C (-40 to 140° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: FCC, IC, CE
- Software Modes: PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware.
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | UISP LTU Instant (5-Pack) (US Version) |
| SKU | LTU-Instant-5-US |
| Quantity in Pack | 5 |
| Enclosure Material | UV-stabilized polycarbonate |
| Certifications | FCC, IC, CE |
| Physical | |
| Feed Dimensions | 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21") |
| Antenna Dimensions | 358 x 271.95 x 288.5 mm (14.09 x 10.71 x 11.36") |
| Feed Weight | 215 g (7.58 oz) |
| Antenna Weight | 890 g (1.96 lb) |
| Antenna with Mount Weight | 1.07 kg (2.36 lb) |
| Wind Loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Power & Electrical | |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (included) |
| Supported Voltage Range | 22–26V DC |
| Max. Power Consumption | 8.5W |
| Wireless / RF | |
| Frequency Band | 5 GHz |
| Antenna Gain | 22 dBi |
| Antenna Technology | InnerFeed® |
| Channel Width Options | 10/20/30/40/50/60/80/100 MHz |
| RF Connections | Internal |
| Throughput | 900+ Mbps TCP/IP (FW version 2.3.0 and later) |
| Networking & Connectivity | |
| Network Interface | 1x Gigabit RJ45 port |
| Operating Modes | PtMP CPE, PtP |
| Router Mode Support | Yes |
| Frequency Splitting | Supported |
| Environmental | |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| Compatible Base Station | LTU Rocket |
| Compatible Deployments | LiteBeam LBE 5AC Gen2 |
| International Version | LTU-Instant-5 |
| Incompatible Networks | airMAX networks; will not connect to airMAX AC |
| In the Box | |
| Included Accessories | 5x feeds, 5x PoE adapters |
