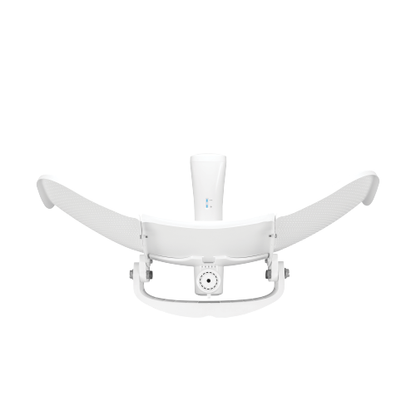

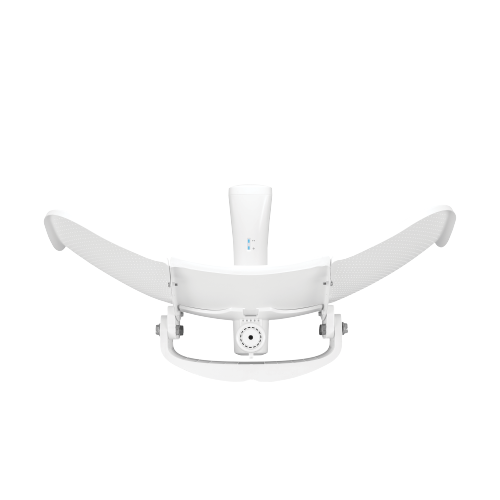

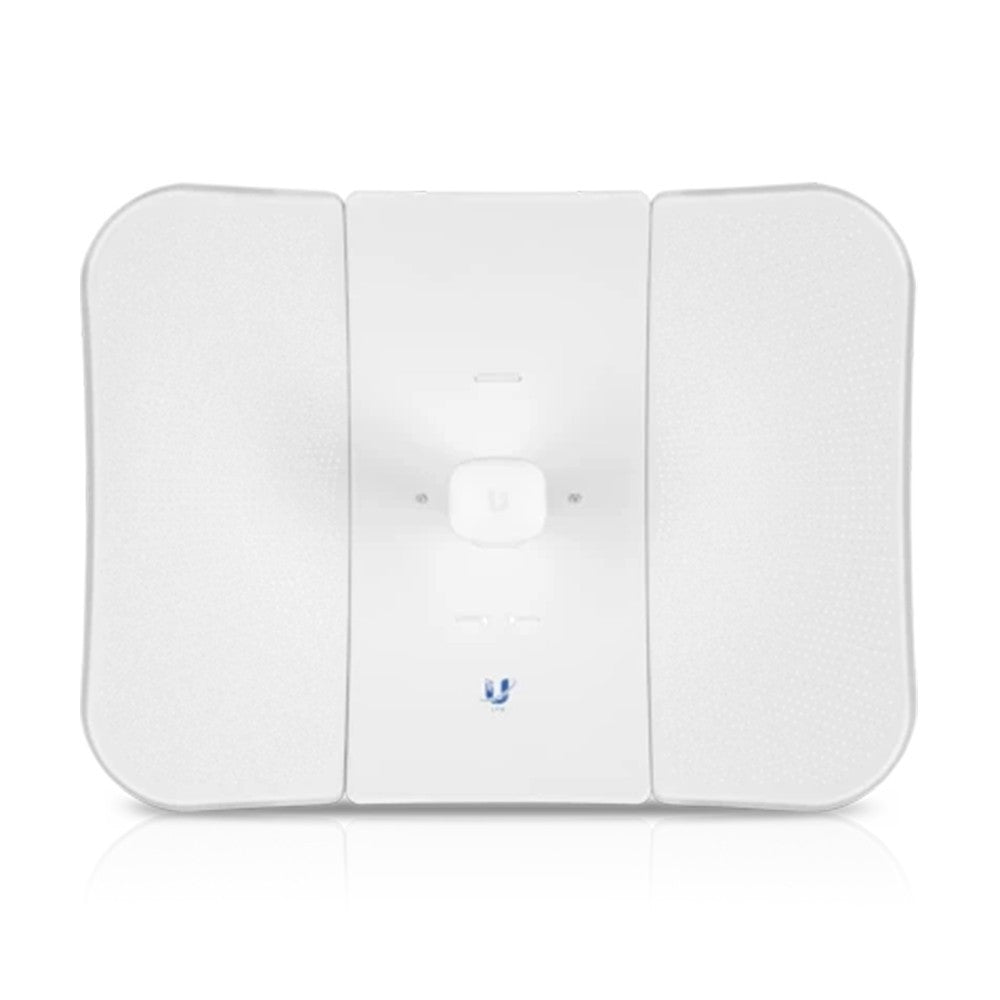

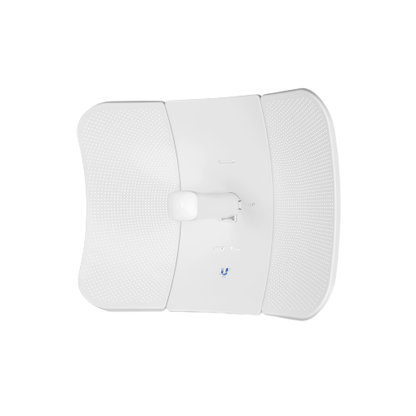

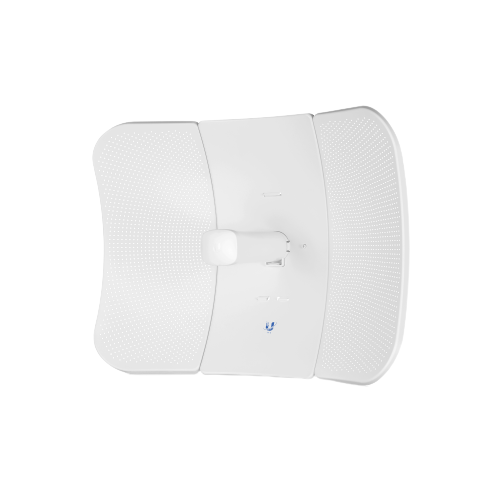

Ubiquiti LTU-LR-US 5GHz PtMP Long-Range Client 26dBi PoE
- EhubAmerica SKU
- LTU-LR-US
- 5 GHz
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• High data and performance rate (1024 QAM)
• 10/20/30/40/50/60/80/100 MHz channel bandwidth
• Central configuration management from AP side
• Frequency split
• Auto power adjustments
• Router mode support
• Range up to 30 km
• International version LTU-LR
• Max. Power Consumption: 8.5W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Voltage Range: 22-26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 26 dBi
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/ EMP Protection: ±24kV Contact/ Air
• Operating Temperature: -40 to 60°C (-40 to 140°F)
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: LTU-LR-US
• Product Type: Networking Accessories
• High data and performance rate (1024 QAM)
• 10/20/30/40/50/60/80/100 MHz channel bandwidth
• Central configuration management from AP side
• Frequency split
• Auto power adjustments
• Router mode support
• Range up to 30 km
• International version LTU-LR
• Max. Power Consumption: 8.5W
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Voltage Range: 22-26V
• Max. Conducted TX Power: 22 dBm (per Chain)
• Gain: 26 dBi
• Mounting: Pole-Mount (Kit Included)
• Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ESD/ EMP Protection: ±24kV Contact/ Air
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5-95% Non-condensing
• Certifications: CE, FCC, IC
• (1) Antenna Feed
• (1) Center Reflector Panel
• (2) Side Reflector Panels
• (1) Mounting Bracket
• (1) Rear Housing
• (2) Pivot Panels
• (8) M4 SEM Screws
• (4) M8 SEM Screws
• (3) Metal Straps
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| Ubiquiti UISP LTU Long-Range (US Version) | |
|---|---|
| General | |
| Model | LTU-LR-US |
| Brand | Ubiquiti |
| Product Type | 5 GHz PtMP LTU Long-Range Client Radio |
| Frequency Band | 5 GHz |
| Modulation | 1024 QAM |
| Channel Bandwidth | 10/20/30/40/50/60/80/100 MHz |
| Range | Up to 30 km |
| Power & Electrical | |
| Max. Power Consumption | 8.5 W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Voltage Range | 22-26 VDC |
| Max. Conducted TX Power | 22 dBm (per Chain) |
| Antenna Gain | 26 dBi |
| Physical | |
| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 550 N @ 200 km/h (123.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ±24 kV Contact/Air |
| Environmental | |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 5-95% Non-condensing |
| Certifications | CE, FCC, IC |
| Compatibility | |
| Compatible BaseStation | LTU-Rocket |
| Compatible Version | LTU-LR (International version) |
| In the Box | |
