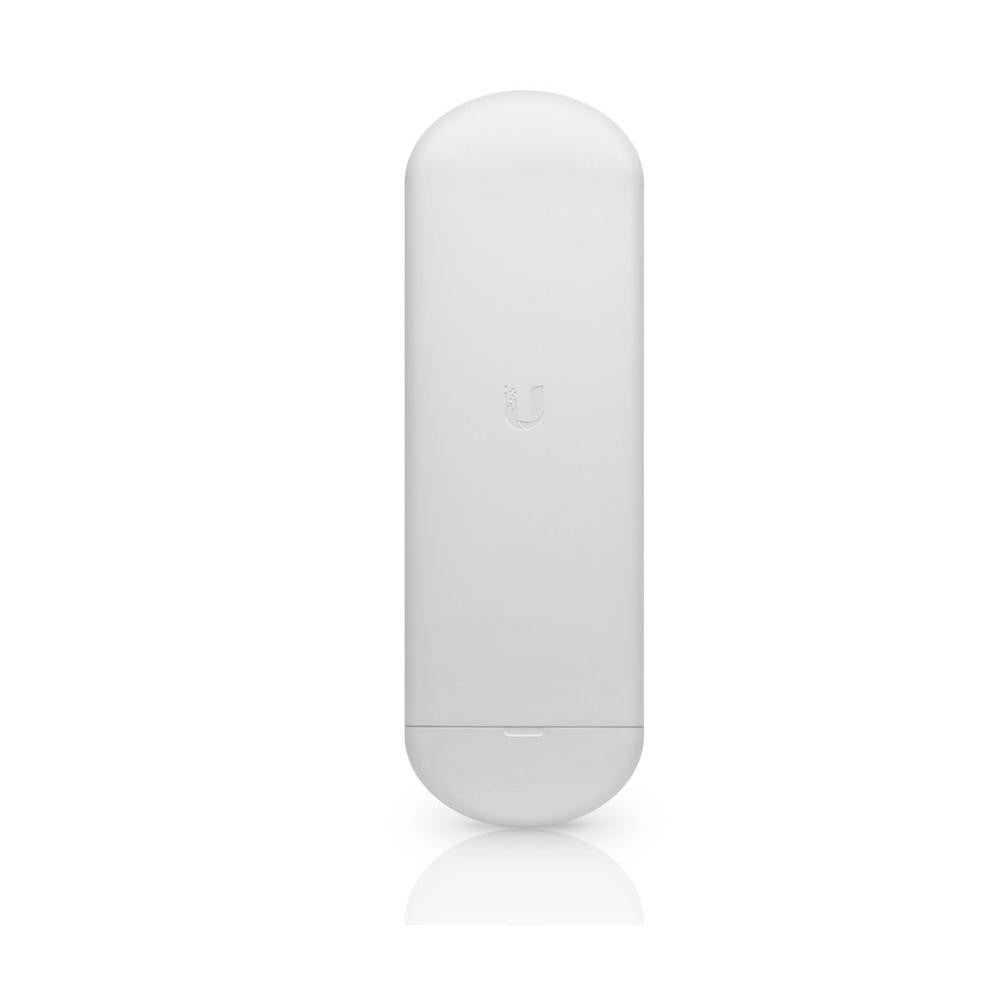

Ubiquiti NS-5AC-US 5GHz 450Mbps NanoStation AC CPE PoE
- EhubAmerica SKU
- NS-5AC-US
- PoE Alternative A (Pairs 1, 2+; 3, 6 Return) and 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
SKU: NS-5AC-US - Ubiquiti UISP airMAX NanoStation AC NS-5AC 5 GHz Radio
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• 5 GHz, 15+ km link range
• 450+ Mbps throughput
• Secondary LAN with PoE out support
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6")
• With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2")
• 233 g (8.2 oz)
• International version NS-5AC
• Mechanical Enclosure material: UV-resistant plastic

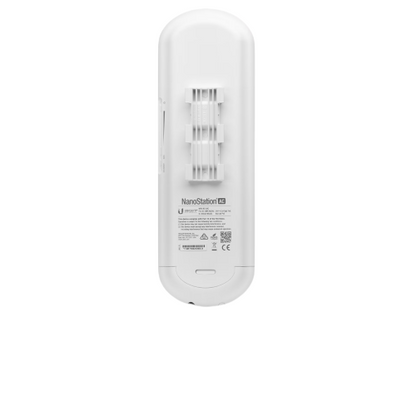

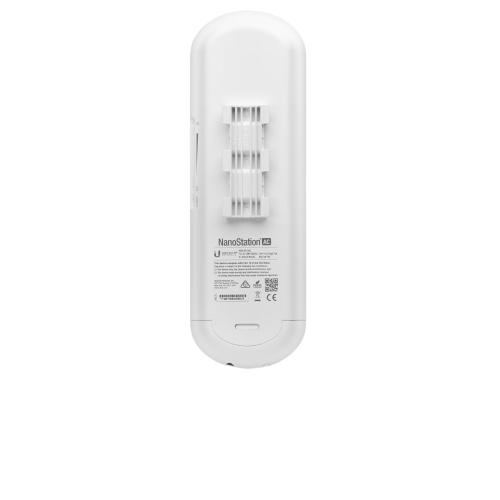

• Mounting: Pole and wall mounting kits (Included)

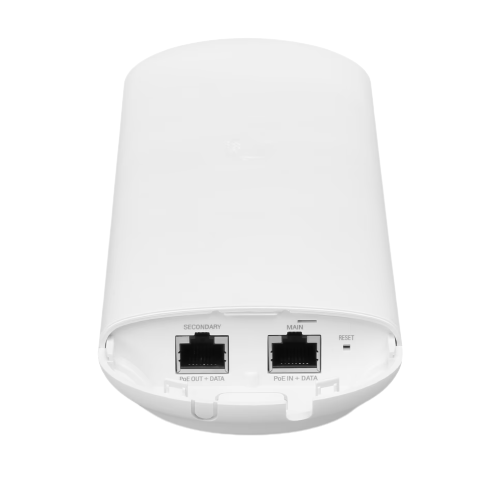

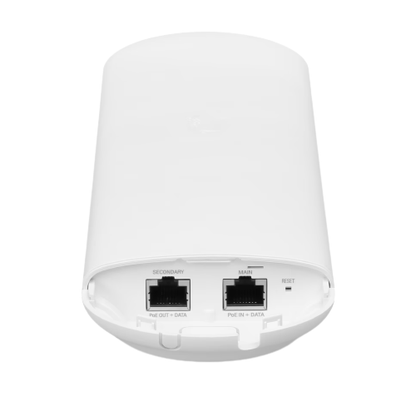

• Hardware Networking interface: (2) 10/100/1000 MbE ports
• Power method: PoE Alternative A (Pairs 1, 2+; 3, 6 Return)
• 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power supply: 24V, 0.5A Gigabit PoE supply (Included)
• Supported voltage range: 24V ±10%
• Max. power consumption: 9W
• ESD/EMP protection: Air/contact: ±24 kV
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: NS-5AC-US
• Product Type: Wireless Access Points
• 5 GHz, 15+ km link range
• 450+ Mbps throughput
• Secondary LAN with PoE out support
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Without mount: 257 x 84 x 41 mm (10.1 x 3.3 x 1.6")
• With mount: 257 x 84 x 30 mm (10.1 x 3.3 x 1.2")
• 233 g (8.2 oz)
• International version NS-5AC
• Mechanical Enclosure material: UV-resistant plastic
• Mounting: Pole and wall mounting kits (Included)
• Hardware Networking interface: (2) 10/100/1000 MbE ports
• Power method: PoE Alternative A (Pairs 1, 2+; 3, 6 Return)
• 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power supply: 24V, 0.5A Gigabit PoE supply (Included)
• Supported voltage range: 24V ±10%
• Max. power consumption: 9W
• ESD/EMP protection: Air/contact: ±24 kV
• LEDs: Power, Ethernet, (4) signal strength
• Operating temperature: -40 to 70° C (-40 to 158° F)
• Operating humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
• System Gain: 16 dBi
• Channel bandwidths: 10/20/30/40/50/60/80 MHz
• Cross-pol isolation: 20 dB min.
• Max. VSWR: 1.6:1
• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Polarization: Dual linear
• Operating Frequency (MHz) Worldwide: 5150-5875 MHz
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | NS-5AC (US Version) |
| SKU | NS-5AC-US |
| Product Type | Indoor/Outdoor CPE with airMAX AC Technology |
| Physical | |
| Dimensions (without mount) | 257 x 84 x 41 mm (10.1 x 3.3 x 1.6") |
| Dimensions (with mount) | 257 x 84 x 30 mm (10.1 x 3.3 x 1.2") |
| Weight | 233 g (8.2 oz) |
| Enclosure Material | UV-resistant plastic |
| Mounting | Pole and wall mounting kits (included) |
| Power & Electrical | |
| Power Supply | 24V, 0.5A Gigabit PoE supply (included) |
| Supported Voltage Range | 24V ±10% |
| Max. Power Consumption | 9W |
| Power Method | PoE Alternative A (Pairs 1, 2+; 3, 6 Return) and 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| ESD/EMP Protection | Air/contact: ±24 kV |
| Wireless / RF | |
| Operating Frequency (Worldwide) | 5150–5875 MHz |
| Operating Frequency (US) | U-NII-1: 5150–5250 MHz; U-NII-2A: 5250–5350 MHz; U-NII-2C: 5240–5725 MHz; U-NII-3: 5725–5850 MHz |
| Management Radio Frequency (Worldwide) | 2412–2472 MHz |
| Management Radio Frequency (US/CA) | 2412–2462 MHz |
| Gain | 16 dBi |
| Channel Bandwidths | 10/20/30/40/50/60/80 MHz |
| Polarization | Dual linear |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Cross-pol Isolation | 20 dB min. |
| Max. VSWR | 1.6:1 |
| Link Range | 15+ km |
| Throughput | 450+ Mbps |
| Networking & Connectivity | |
| Networking Interface | (2) 10/100/1000 MbE ports |
| Secondary LAN | PoE out support |
| Environmental | |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Compatibility | |
| Compatible Models | NS |
