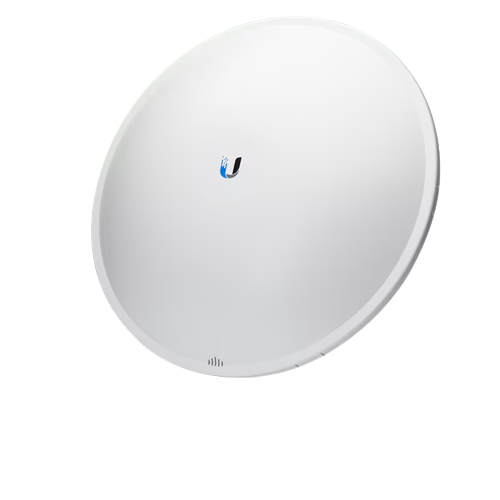

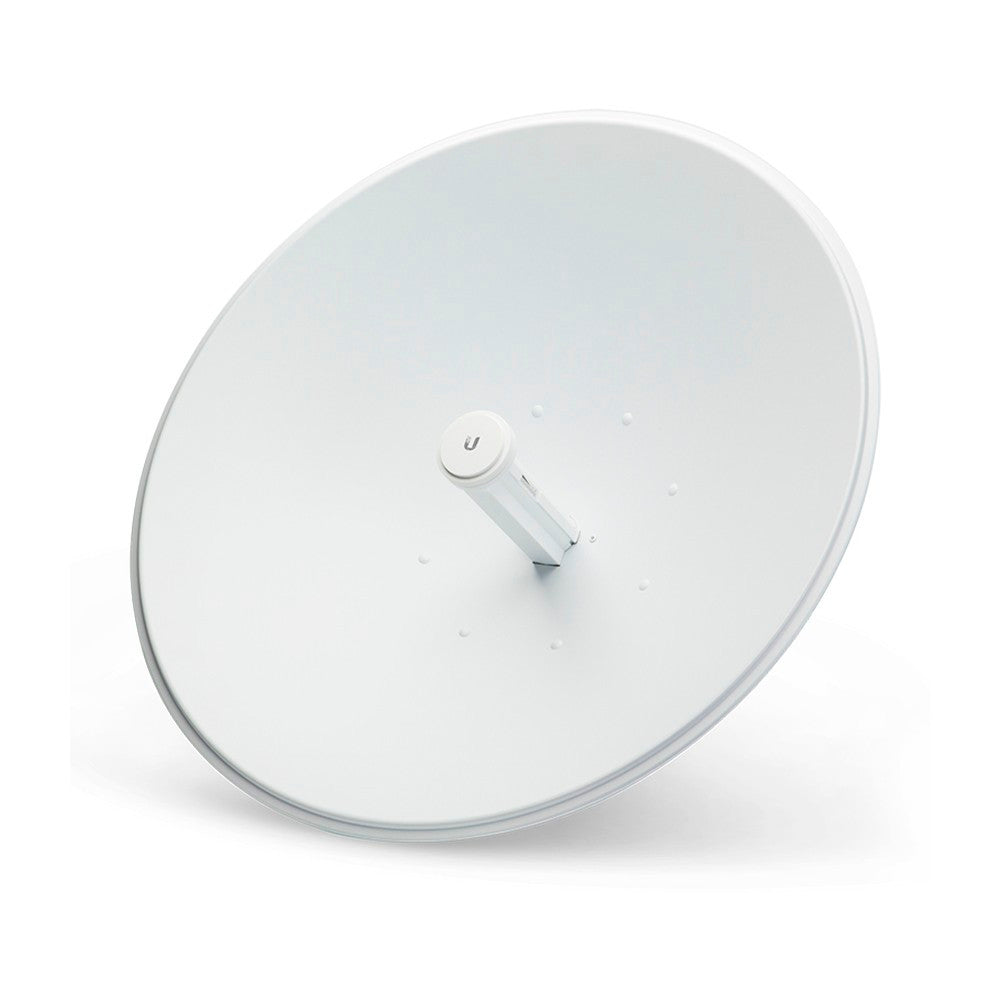

Ubiquiti PBE-5AC-500 5GHz Point-to-Point 450Mbps 25km Range
- EhubAmerica SKU
- PBE-5AC-500
- Passive PoE 2-pair (pins 4, 5+ and 7, 8 return)
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
PRODUCT TYPE
Point-to-Point
KEY FEATURES
• Highly Efficient Antenna Beam Performance
• Custom Ubiquiti® airMAX® ac Processor
• Up to 450+ Mbps Real TCP/IP Throughput
• Innovative Snap and Lock Assembly
• Proprietary InnerFeed™ Technology
• 5 GHz, 25+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Mechanical: Dimensions: Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1')
• With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4'
• Weight: Without radome: 2.35 kg (5.2 lb)
• With radome: 3.2 kg (7 lb)
• Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
• Wind survivability: 96 km/h (60 mph)
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: PBE-5AC-500
• Product Type: Point-to-Point
• Highly Efficient Antenna Beam Performance
• Custom Ubiquiti® airMAX® ac Processor
• Up to 450+ Mbps Real TCP/IP Throughput
• Innovative Snap and Lock Assembly
• Proprietary InnerFeed™ Technology
• 5 GHz, 25+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Mechanical: Dimensions: Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1')
• With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4'
• Weight: Without radome: 2.35 kg (5.2 lb)
• With radome: 3.2 kg (7 lb)
• Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
• Wind survivability: 96 km/h (60 mph)
• Hardware: Networking interface: (1) GbE RJ45 port
• Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported voltage range: 20-27V DC
• Max. power consumption: 8.5W
• ESD/EMP protection: Air/contact: ± 24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal strength LEDs: Software-adjustable to correspond to custom RSSI levels
• Salt fog test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G method 509.5
• Vibration test: IEC 68-2-6
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | PBE-5AC-500 |
| Product Type | 5 GHz Point-to-Point Wireless Bridge |
| Operating Frequency | 5150–5875 MHz (Worldwide); USA: U-NII-1 (5150–5250 MHz), U-NII-2A (5250–5350 MHz), U-NII-2C (5470–5725 MHz), U-NII-3 (5725–5850 MHz) |
| Maximum Throughput | 450+ Mbps Real TCP/IP |
| Maximum Link Range | 25+ km |
| Antenna Gain | 27 dBi |
| Maximum VSWR | 1.5:1 |
| Polarization | Dual linear |
| Channel Sizes (PtP Mode) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP Mode) | 10/20/30/40 MHz |
| Physical | |
| Dimensions (without radome) | 520 × 520 × 308 mm (20.5 × 20.5 × 12.1 in) |
| Dimensions (with radome) | 525 × 525 × 315 mm (20.7 × 20.7 × 12.4 in) |
| Weight (without radome) | 2.35 kg (5.2 lb) |
| Weight (with radome) | 3.2 kg (7 lb) |
| Enclosure Material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind Survivability | 96 km/h (60 mph) |
| Wind Loading | 264.6 N at 96 km/h (60 lbf at 60 mph) |
| Power & Electrical | |
| Power Method | Passive PoE 2-pair (pins 4, 5+ and 7, 8 return) |
| Power Supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Maximum Power Consumption | 8.5W |
| ESD/EMP Protection | Air/contact: ±24 kV |
| Networking & Connectivity | |
| Networking Interface | (1) Gigabit Ethernet RJ45 port |
| Environmental | |
| Ambient Operating Temperature | −40 to 70°C (−40 to 158°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117); Equivalent: MIL-STD-810 G method 509.5 |
| Vibration Test | IEC 68 |
