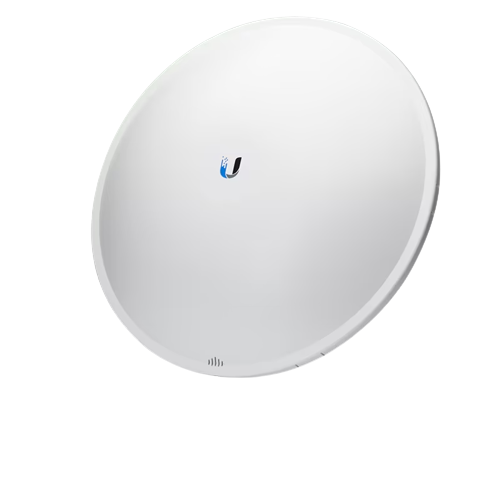

Ubiquiti PBE-5AC-500 airMAX PowerBeam 5GHz 450Mbps PtP Bridge
- EhubAmerica SKU
- PBE-5AC-500 US
- 5 GHz
- Passive PoE (Pairs 4, 5+; 7, 8 Return)
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.
PRODUCT TYPE
Point-to-Point
KEY FEATURES
• Highly Efficient Antenna Beam Performance
• Custom Ubiquiti® airMAX® ac Processor
• Up to 450+ Mbps Real TCP/IP Throughput
• Innovative Snap and Lock Assembly
• Proprietary InnerFeed™ Technology
• 5 GHz, 25+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio

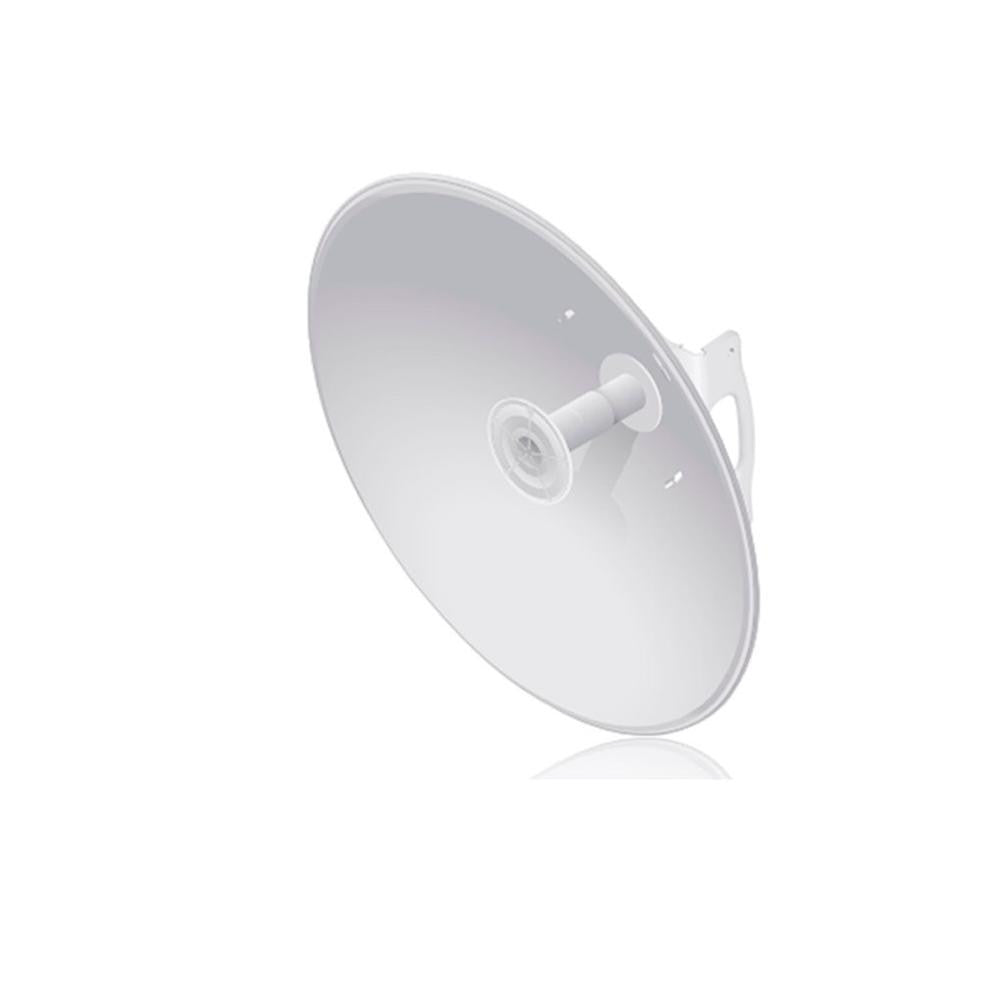

• Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1")
• With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4"
• Without radome: 2.35 kg (5.18 lb)
• With radome: 3.2 kg (7 lb)
• International version PBE-5AC-500
• Mechanical Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: PBE-5AC-500 US
• Product Type: Point-to-Point
• Highly Efficient Antenna Beam Performance
• Custom Ubiquiti® airMAX® ac Processor
• Up to 450+ Mbps Real TCP/IP Throughput
• Innovative Snap and Lock Assembly
• Proprietary InnerFeed™ Technology
• 5 GHz, 25+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1")
• With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4"
• Without radome: 2.35 kg (5.18 lb)
• With radome: 3.2 kg (7 lb)
• International version PBE-5AC-500
• Mechanical Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
• Wind survivability: 96 km/h (60 mph)
• Hardware Networking interface: (1) GbE RJ45 port
• Power method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power supply: 24V, 0.5A Gigabit PoE
• Max. power consumption: 8.5W
• Supported voltage range: 20-26V DC
• ESD/EMP protection: Air/contact: ± 24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal strength LEDs: Software-adjustable to correspond to custom RSSI levels
• RoHS compliance: Yes
• Salt fog test: IEC 68-2-11 (ASTM B117)
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | PBE-5AC-500 US |
| Product Type | 5 GHz WiFi Bridge |
| Throughput | 450+ Mbps Real TCP/IP |
| Link Range | 25+ km |
| Physical | |
| Dimensions (without radome) | 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") |
| Dimensions (with radome) | 525 x 525 x 315 mm (20.7 x 20.7 x 12.4") |
| Weight (without radome) | 2.35 kg (5.18 lb) |
| Weight (with radome) | 3.2 kg (7 lb) |
| Enclosure Material | UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| Wind Survivability | 96 km/h (60 mph) |
| Wind Loading | 264.6 N at 96 km/h (60 lbf at 60 mph) |
| Power & Electrical | |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 20-26V DC |
| ESD/EMP Protection | Air/contact: ± 24 kV |
| Wireless / RF | |
| Frequency Band | 5 GHz |
| U-NII-1 | 5150–5250 MHz |
| U-NII-2A | 5250–5350 MHz |
| U-NII-2C | 5470–5725 MHz |
| U-NII-3 | 5725–5850 MHz |
| Antenna Gain | 27 dBi |
| Polarization | Dual linear |
| Max. VSWR | 1.5:1 |
| Channel Sizes (PtP Mode) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP Mode) | 10/20/30/40 MHz |
| Networking & Connectivity | |
| Networking Interface | (1) Gigabit RJ45 port |
| Environmental | |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
