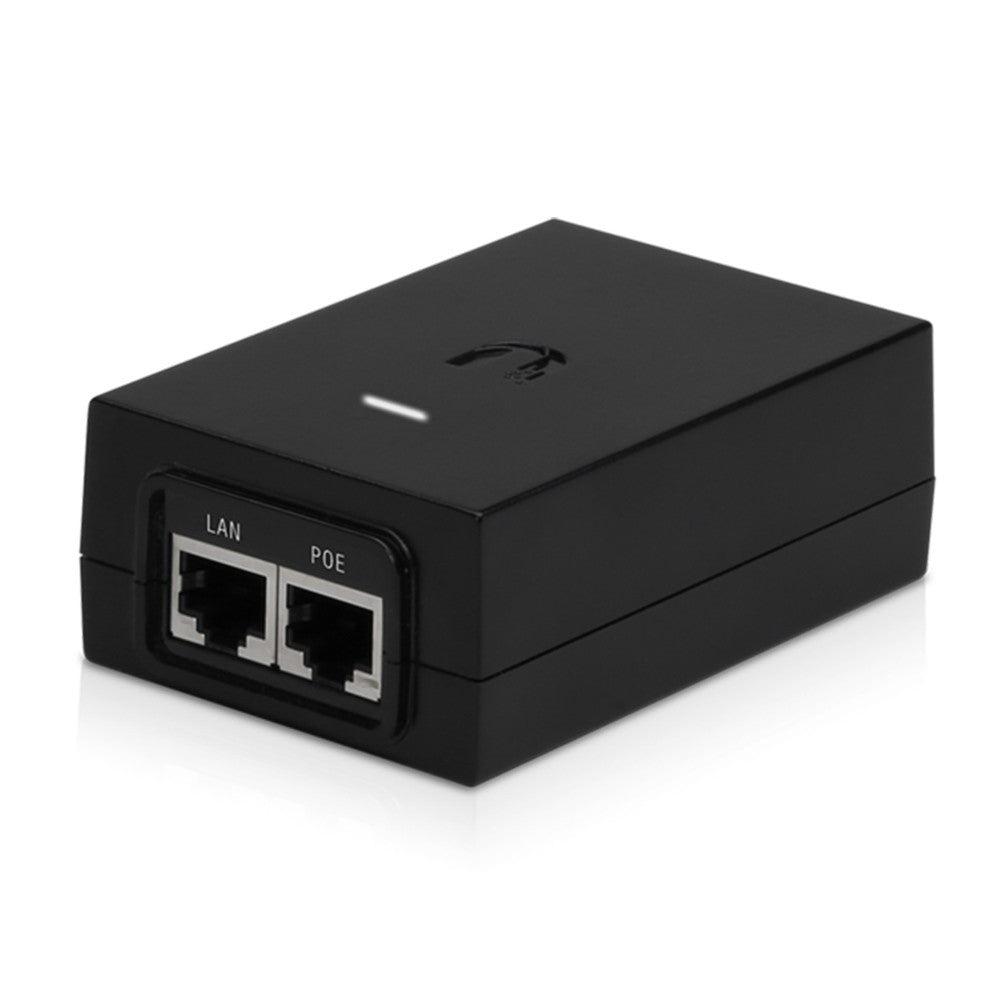

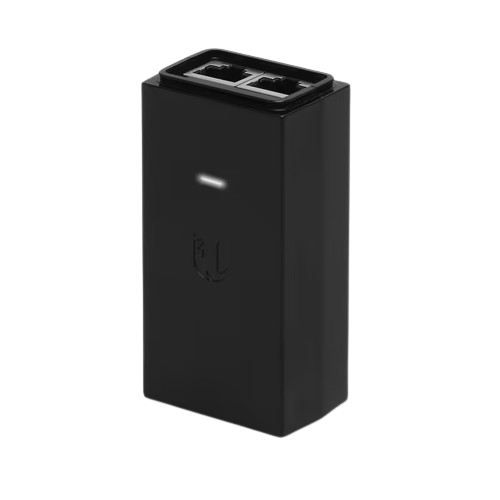

Ubiquiti POE-24 24W PoE Injector 24VDC Surge Protection
- EhubAmerica SKU
- POE-24 24W
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• Surge and clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
• 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
• 135 g (4.76 oz)
• Specifications Model: POE-24-24W
• Output Voltage: 24VDC @ 1.0A
• LAN Activity Indicator: No
• Gigabit LAN Port: No
• Remote Reset Capability: Yes
• Reset Button: Yes
• Rated Voltage: 100-240VAC @ 50/60Hz
• Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
• Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
• Efficiency: 80+%
• Output Ripple: 1% Max.
• Switching Frequency: 65 kHz
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: POE-24 24W
• Product Type: PoE & Power Injectors
• Surge and clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
• 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
• 135 g (4.76 oz)
• Specifications Model: POE-24-24W
• Output Voltage: 24VDC @ 1.0A
• LAN Activity Indicator: No
• Gigabit LAN Port: No
• Remote Reset Capability: Yes
• Reset Button: Yes
• Rated Voltage: 100-240VAC @ 50/60Hz
• Input Current: 0.6A @ 120VAC, 0.4A @ 240VAC
• Inrush Current: <60A Peak @ 120VAC, <120A Peak @ 230VAC
• Efficiency: 80+%
• Output Ripple: 1% Max.
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%
• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
• 4-Pair Powering: –
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Storage Temperature: -30 to 70° C (-22 to 158° F)
• Operating Humidity: 35 to 95% Noncondensing
• AC Connector: IEC-320 C6
• Data IN / PoE: RJ45 Shielded Socket
• Surge Protection: Difference and Common Mode
• Clamping Protection: 11V Data, 60V Power
INTENDED USE / APPLICATIONS
• Backup, off-grid, or distributed power systems
• Telecommunications and network equipment
• Professional installations requiring compatible power specifications
Specifications
Technical specifications
| General | |
|---|---|
| Model | POE-24-24W |
| SKU | POE-24 24W |
| Brand | Ubiquiti |
| Type | PoE Injector |
| Physical | |
| Dimensions | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30") |
| Weight | 135 g (4.76 oz) |
| Power & Electrical | |
| Output Voltage | 24VDC @ 1.0A |
| Rated Input Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC, <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| AC Connector | IEC-320 C6 |
| Networking & Connectivity | |
| Data IN / PoE | RJ45 Shielded Socket |
| Powering Method | 2-Pair Powering (Pins 4, 5 (+) and Pins 7, 8 (-)) |
| LAN Activity Indicator | No |
| Gigabit LAN Port | No |
| Environmental | |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 µs) Power |
| Peak Pulse Current | 36A (10/1000 µs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Compatibility | |
| Reset Button | Yes |
| Remote Reset Capability | Yes |
| Certifications | CE, FCC, IC, UL |
