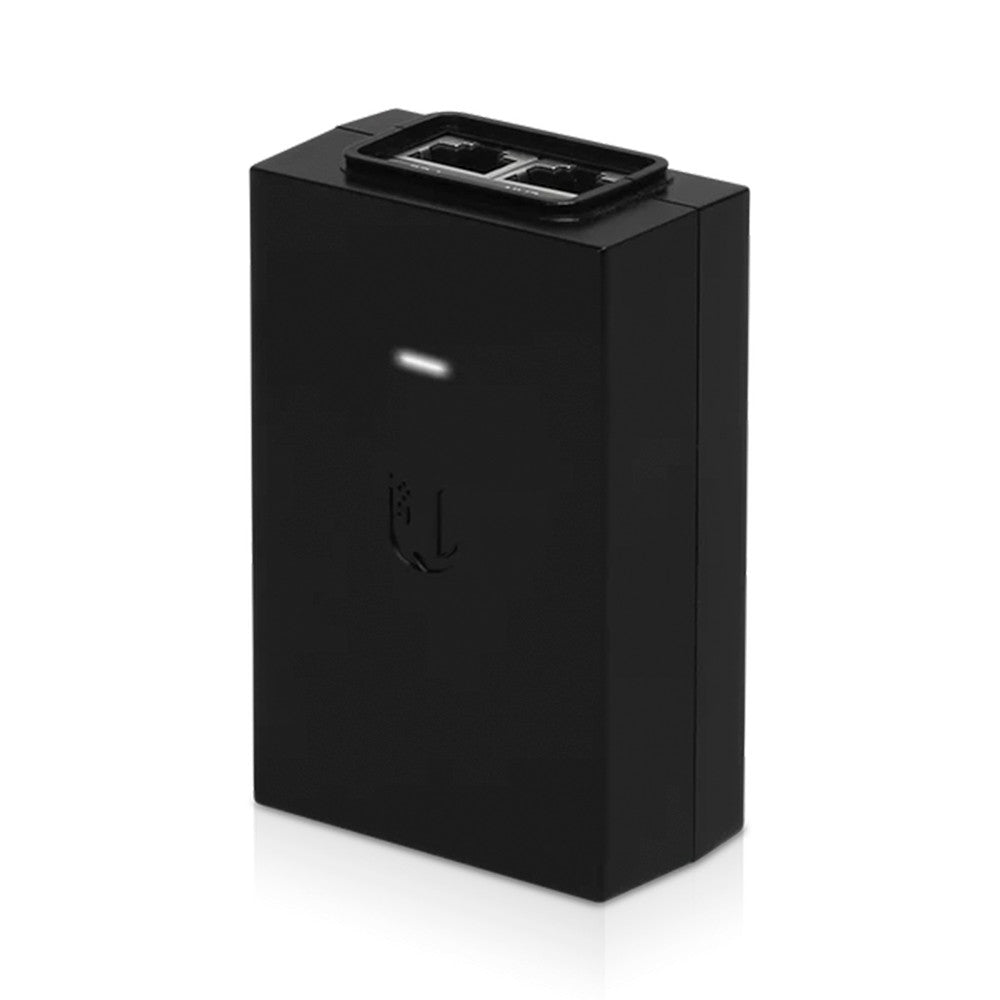

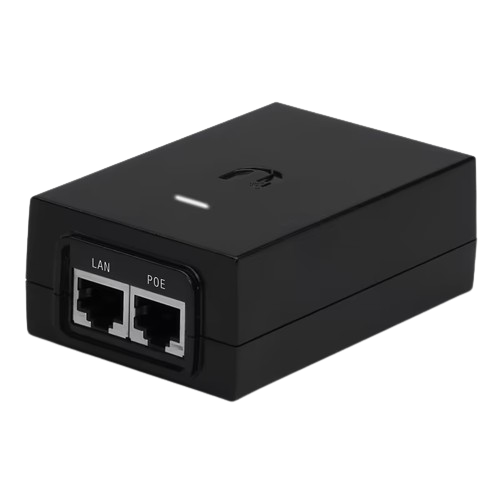

Ubiquiti POE-48-24W 48VDC 24W PoE Injector Surge Protection
- EhubAmerica SKU
- POE-48-24W
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
SKU: POE-48-24W - Provides Earth Grounding and Surge Protection Helps Protect Against ESD Events
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision® * Check product specifications to verify PoE compatibility.
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
• 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
• 135.5 g (4.78 oz)
• POE-48-24W Output Voltage: 48VDC @ 0.5A
• LAN Activity Indicator: No
• Gigabit LAN Port: No
• Remote Reset Capability: No
• Reset Button: No
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: POE-48-24W
• Product Type: PoE & Power Injectors
• airFiber®
• airMAX®
• EdgeMAX®
• mFi®
• UniFi® AP
• UniFi Video / airVision® * Check product specifications to verify PoE compatibility.
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
• 88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
• 135.5 g (4.78 oz)
• POE-48-24W Output Voltage: 48VDC @ 0.5A
• LAN Activity Indicator: No
• Gigabit LAN Port: No
• Remote Reset Capability: No
• Reset Button: No
• Input Voltage: 90-260VAC @ 47-63 Hz
• Input Current: 0.6A @ 120VAC
• 0.4A @ 240VAC
• Inrush Current: <60A Peak @ 120VAC
• <120A Peak @ 230VAC
• Efficiency: 80+%
• Output Ripple: 1% Max.
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 1%
• Load Regulation: ≤ 3%
• 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-)
INTENDED USE / APPLICATIONS
• Backup, off-grid, or distributed power systems
• Telecommunications and network equipment
• Professional installations requiring compatible power specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model/SKU | POE-48-24W |
| Product Type | PoE Injector |
| Physical | |
| Dimensions (L×W×H) | 88 x 57 x 33 mm (3.47 x 2.24 x 1.30") |
| Weight | 135.5 g (4.78 oz) |
| Power & Electrical | |
| Output Voltage | 48VDC @ 0.5A |
| Input Voltage | 90-260VAC @ 47-63 Hz |
| Input Current | 0.6A @ 120VAC; 0.4A @ 240VAC |
| Inrush Current | <60A Peak @ 120VAC; <120A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 1% |
| Load Regulation | ≤ 3% |
| AC Connector | IEC-320 C6 |
| Powering Method | 2-Pair (Pins 4, 5 (+) and Pins 7, 8 (-)) |
| Networking & Connectivity | |
| Data IN / PoE Connector | RJ45 Shielded Socket |
| Gigabit LAN Port | No |
| LAN Activity Indicator | No |
| Environmental | |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Operating Humidity | 35 to 95% Noncondensing |
| Compatibility | |
