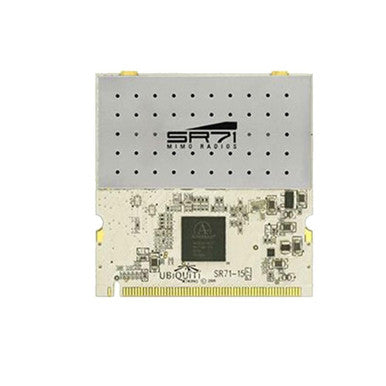

Ubiquiti SR71-15 5GHz 802.11a/n 320mW mini-PCI Radio Module 2x2 MIMO
- EhubAmerica SKU
- SR71-15
- 5 GHz
- up to 300 Mbps
$87.58
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti SR71-15 Hi Performance 320mw 5GHz 802.11n Radio Module mini-PCI
PRODUCT TYPE
Networking Accessories
KEY FEATURES
- Chipset: Atheros AR9160 with DFS SUPPORT
- Radio Operation: IEEE 802.11a/n
- Interface: 32-bit mini-PCI Type IIIA
- Operation Voltage: 3.3VDC
- Antenna Ports: (2) MMCX for 2x2 MIMO Operation
- Temperature Range: -20C to +70C (extended temp version up to +95C)
- Security: 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
- Data Rates: up to 300Mbps
- TX Channel Width Support: 20MHz / 40MHz
- RoHS Compliance: YES
- Hi-Power Frequency Operation: 5475-5725MHz(CE), 5745-5825(FCC)
- Avg. TX Power: 27dBm, +/-2dB
- Max Avg. Current Consumption: 1.25A, +/-100mA
- Indoor Range (Antenna Dependent): over 150m
- Outdoor Range (Antenna Dependent): over 50km
- Operating System Support: Linux
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: SR71-15
- Product Type: Networking Accessories
- Chipset: Atheros AR9160 with DFS SUPPORT
- Radio Operation: IEEE 802.11a/n
- Interface: 32-bit mini-PCI Type IIIA
- Operation Voltage: 3.3VDC
- Antenna Ports: (2) MMCX for 2x2 MIMO Operation
- Temperature Range: -20C to +70C (extended temp version up to +95C)
- Security: 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
- Data Rates: up to 300Mbps
- TX Channel Width Support: 20MHz / 40MHz
- RoHS Compliance: YES
- Hi-Power Frequency Operation: 5475-5725MHz(CE), 5745-5825(FCC)
- Avg. TX Power: 27dBm, +/-2dB
- Max Avg. Current Consumption: 1.25A, +/-100mA
- Indoor Range (Antenna Dependent): over 150m
- Outdoor Range (Antenna Dependent): over 50km
- Operating System Support: Linux
INTENDED USE / APPLICATIONS
- Professional networking and communications deployments
- Commercial, institutional, or industrial installations
- Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model/SKU | SR71-15 |
| Product Name | Mini-PCI 5GHz 802.11n Radio Module |
| Chipset | Atheros AR9160 with DFS support |
| Radio Standard | IEEE 802.11a/n |
| Interface | 32-bit mini-PCI Type IIIA |
| Data Rate | up to 300 Mbps |
| Physical | |
| Antenna Ports | 2x MMCX connectors for 2x2 MIMO operation |
| Power & Electrical | |
| Operating Voltage | 3.3 VDC |
| Max Average Current Consumption | 1.25 A (±100 mA) |
| Average TX Power | 27 dBm (±2 dB) |
| Wireless / RF | |
| Frequency Band | 5 GHz |
| Operating Frequencies | 5475–5725 MHz (CE), 5745–5825 MHz (FCC) |
| TX Channel Width Support | 20 MHz / 40 MHz |
| Security | 802.11i with AES-CCM & TKIP encryption, 802.1x, 64/128/152-bit WEP |
| Indoor Range (antenna dependent) | over 150 m |
| Outdoor Range (antenna dependent) | over 50 km |
| Environmental | |
| Operating Temperature Range | -20°C to +70°C (extended version up to +95°C) |
| RoHS Compliant | Yes |
| Compatibility | |
| Operating System Support | Linux |
