Ubiquiti · Wireless Access Points
Ubiquiti U6-Enterprise-IW WiFi 6E 10.2 Gbps Ceiling Access Point PoE+
- EhubAmerica SKU
- U6-Enterprise-IW
- (1) 2.5GbE RJ45 port (PoE In)
- PoE+
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti WiFi 6E in-wall access point with 2.5GbE input, four GbE outputs, 6 GHz support, up to 4.8 Gbps per 5/6 GHz band, PoE+, and support for 600+ concurrent clients.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• WiFi 6E with 2.4 GHz, 5 GHz, and 6 GHz operation
• (1) 2.5GbE RJ45 data input

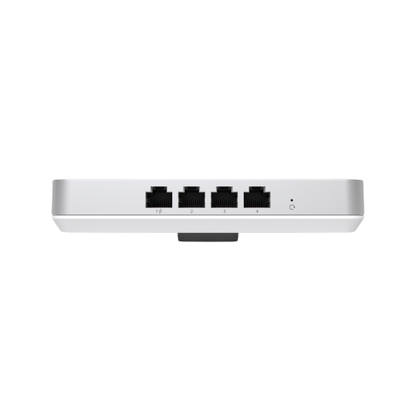

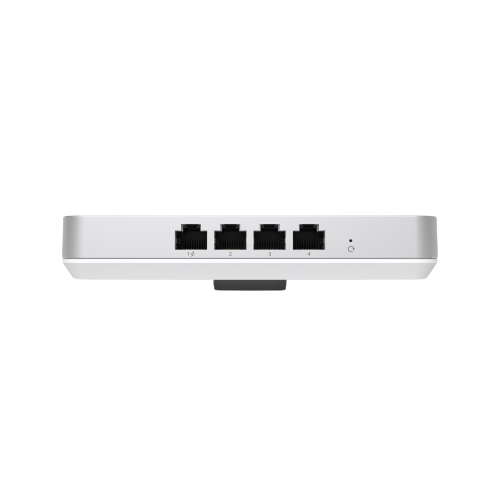

• (4) GbE RJ45 data outputs
• (1) PoE+ input and (1) PoE output
• PoE+ powered
• PoE++ required to enable PoE output
• 4x4 DL/UL MU-MIMO at 5 GHz
• 4x4 DL/UL MU-MIMO at 6 GHz
• Up to 4.8 Gbps throughput at 5 GHz
• Up to 4.8 Gbps throughput at 6 GHz
• Supports 600+ concurrent clients
• Zero-wait DFS supported
• 802.1Q VLAN support
• Guest traffic isolation
• Ethernet and Bluetooth management
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model / Part Number: U6-Enterprise-IW
• Dimensions: 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
• Weight: 884 g (1.9 lb)
• Enclosure Materials: Polycarbonate, Aluminum
• Mount Material: Aluminum
• Data Input: (1) 2.5GbE RJ45 Port
• Data Outputs: (4) GbE RJ45 Ports
• Management Interface: Ethernet, Bluetooth
• PoE Interface: (1) PoE+ In, (1) PoE Out
• Power Method: PoE+
• PoE++: Required for PoE Output
• Power Supply: UniFi PoE Switch
• Maximum Power Consumption: 21 W, Excluding PoE Output
• Maximum PoE Wattage Per Port by PSE: 15.4 W
• Supported Voltage Range: 44–57V DC
• Maximum TX Power at 2.4 GHz: 22 dBm
• Maximum TX Power at 5–7 GHz: 26 dBm
• 2.4 GHz MIMO: 2x2 UL MU-MIMO
• 5 GHz MIMO: 4x4 DL/UL MU-MIMO
• 6 GHz MIMO: 4x4 DL/UL MU-MIMO
• 2.4 GHz Throughput Rate: 573.5 Mbps
• 5 GHz Throughput Rate: 4.8 Gbps
• 6 GHz Throughput Rate: 4.8 Gbps
• 2.4 GHz Antenna Gain: 4 dBi
• 5 GHz Antenna Gain: 5.8 dBi
• 6 GHz Antenna Gain: 5.8 dBi
• WiFi Standards: 802.11a/b/g, WiFi 4, WiFi 5, WiFi 6, WiFi 6E
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 Per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• Concurrent Client Support: 600+
• Zero-Wait DFS: Yes
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
Specifications
Technical specifications
| General | |
|---|---|
| Brand | Ubiquiti |
| Model | U6-Enterprise-IW |
| SKU | U6-Enterprise-IW |
| Product Type | WiFi 6E Ceiling Access Point |
| Aggregate Throughput | 10.2 Gbps |
| Wireless / RF | |
| WiFi Standard | WiFi 6E (802.11ax) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Max. TX Power (2.4 GHz) | 22 dBm |
| Max. TX Power (5-7 GHz) | 26 dBm |
| MIMO (2.4 GHz) | 2 x 2 UL MU-MIMO |
| MIMO (5 GHz) | 4 x 4 DL/UL MU-MIMO |
| MIMO (6 GHz) | 4 x 4 DL/UL MU-MIMO |
| Throughput Rate (2.4 GHz) | 573.5 Mbps |
| Throughput Rate (5 GHz) | 4.8 Gbps |
| Throughput Rate (6 GHz) | 4.8 Gbps |
| Antenna Gain (2.4 GHz) | 3.2 dBi |
| Antenna Gain (5 GHz) | 5.3 dBi |
| Antenna Gain (6 GHz) | 6 dBi |
| Power & Electrical | |
| Power Method | PoE+ |
| Supported Voltage Range | 44 - 57 VDC |
| Max. Power Consumption | 22W |
| Power Supply Options | UniFi PoE switch or 48V, 0.5A PoE adapter (optional) |
| Networking & Connectivity | |
| Ethernet Ports | (1) 2.5GbE RJ45 port (PoE In) |
| Management Interface | Ethernet, Bluetooth |
| Physical | |
| Mounting | Wall/ceiling (included) |
| Controls | Reboot and factory-reset button |
| LED | W/B indicator |
| Compatibility | |
| US Version Model | U6-Enterprise-IW-US |
| Compatible PoE Injector | U-POE-at |
| Management Software | UniFi Network application version 7.1.66 and later (US) / 7.2.91 and later (Elsewhere) |
| Recommended Switches | USW Enterprise switches |
