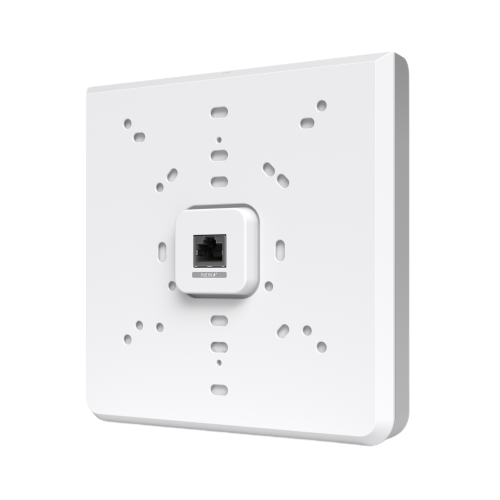

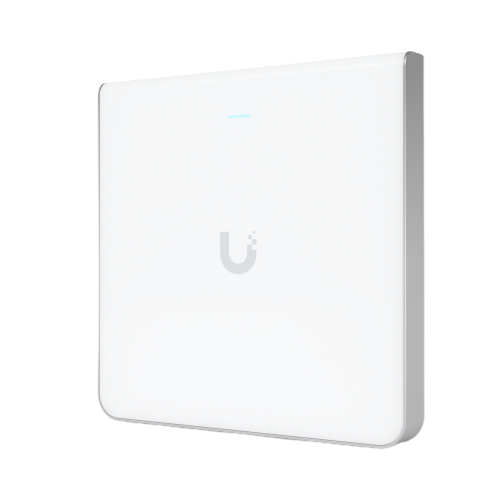

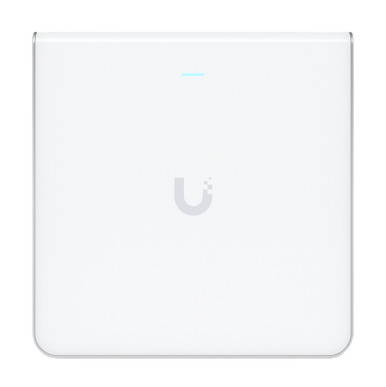

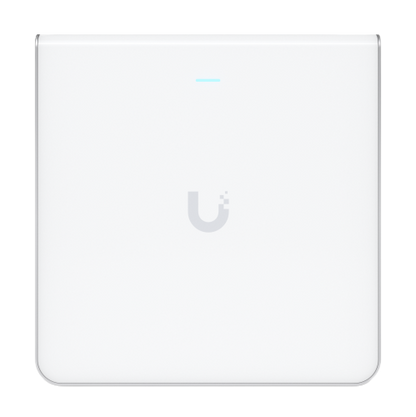

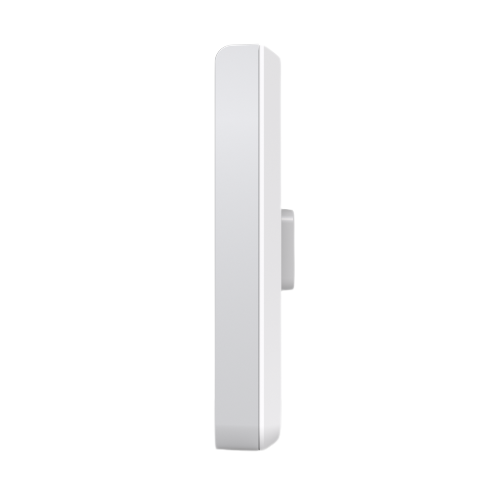

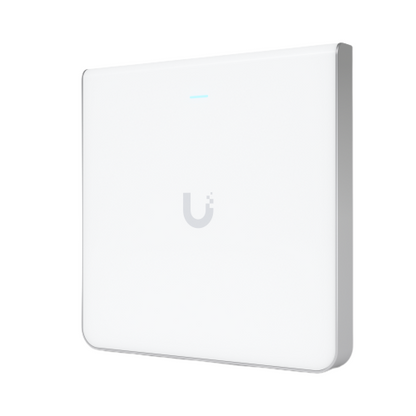

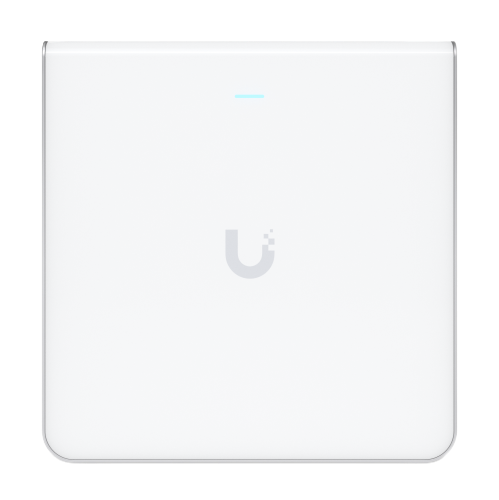

Ubiquiti U6-Enterprise-IW WiFi 6 Access Point 10.2Gbps 2.5GbE PoE+
- EhubAmerica SKU
- U6-Enterprise-IW-US
- WiFi 6 (802.11ax)
- PoE+ (PoE++ required for PoE output)
- Wall-mount
In stock
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Ubiquiti WiFi 6E in-wall access point with simultaneous 2.4/5/6 GHz operation, 10.2 Gbps aggregate throughput, 2.5GbE input, four GbE outputs, PoE+ power, and 600+ client support.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• WiFi 6E with simultaneous 2.4 GHz, 5 GHz, and 6 GHz operation
• 10.2 Gbps aggregate throughput rate
• (1) 2.5GbE RJ45 data input

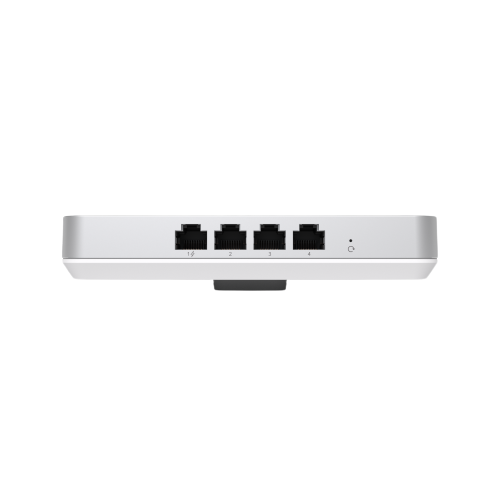

• (4) GbE RJ45 data outputs
• PoE+ powered
• PoE++ required to enable PoE output
• Up to 15.4 W PoE output with a PoE++ power source
• 4x4 DL/UL MU-MIMO at 5 GHz
• 4x4 DL/UL MU-MIMO at 6 GHz
• Up to 4.8 Gbps throughput on 5 GHz
• Up to 4.8 Gbps throughput on 6 GHz
• Supports 600+ concurrent clients
• Zero-wait DFS
• Ethernet and Bluetooth management
• Compact in-wall design
TECHNICAL SPECIFICATIONS
• Manufacturer: Ubiquiti
• Model: U6 Enterprise In-Wall
• Part Number: U6-Enterprise-IW-US
• WiFi Standards: 802.11a/b/g, WiFi 4, WiFi 5, WiFi 6, WiFi 6E
• Aggregate Throughput Rate: 10.2 Gbps

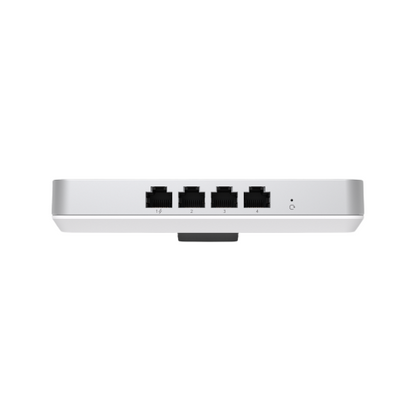

• Networking Interface: (1) 2.5GbE RJ45 Data In, (4) GbE RJ45 Data Out
• Management Interface: Ethernet, Bluetooth
• PoE Interface: (1) PoE+ In, (1) PoE Out
• Power Method: PoE+
• PoE++: Required for PoE Output
• Maximum PoE Wattage Per Port by PSE: 15.4 W with PoE++ Power Source
• Maximum Power Consumption: 21 W, Excluding PoE Output
• Supported Voltage Range: 44–57V DC
• 2.4 GHz MIMO: 2x2 UL MU-MIMO
• 5 GHz MIMO: 4x4 DL/UL MU-MIMO
• 6 GHz MIMO: 4x4 DL/UL MU-MIMO
• 2.4 GHz Throughput Rate: 573.5 Mbps
• 5 GHz Throughput Rate: 4.8 Gbps
• 6 GHz Throughput Rate: 4.8 Gbps
• 2.4 GHz Antenna Gain: 4 dBi
• 5 GHz Antenna Gain: 5.8 dBi
• 6 GHz Antenna Gain: 5.8 dBi
• Maximum TX Power at 2.4 GHz: 22 dBm
• Maximum TX Power at 5–7 GHz: 26 dBm
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 Per Radio
• VLAN: 802.1Q
• Advanced QoS: Per-User Rate Limiting
• Guest Traffic Isolation: Supported
• Concurrent Client Support: 600+
• Zero-Wait DFS: Yes
• Dimensions: 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
• Weight: 884 g (1.9 lb)
• Enclosure Materials: Polycarbonate, Aluminum
• Mount Material: Aluminum
• Operating Temperature: -30 to 60°C (-22 to 140°F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC
• UniFi Network Application: Version 7.1.66 or Later in the US
INTENDED USE / APPLICATIONS
• High-density office environments
• Commercial and industrial wireless deployments
• High-speed wireless coverage integrated with UniFi networks
Specifications
Technical specifications
| U6-Enterprise-IW WiFi 6 Access Point | |
|---|---|
| General | |
| Model | U6-Enterprise-IW |
| SKU | U6-Enterprise-IW-US |
| Product Type | Wall-mount WiFi 6 Access Point |
| Wireless Standard | WiFi 6 (802.11ax) |
| Physical | |
| Dimensions | 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3 inches) |
| Weight | 884 g (1.9 lb) |
| Form Factor | Wall-mount |
| Power & Electrical | |
| Power Method | PoE+ (PoE++ required for PoE output) |
| Max. Power Consumption | 21W (excluding PoE output) |
| Wireless / RF | |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz (simultaneous) |
| Aggregate Throughput | 10.2 Gbps |
| Max. Throughput - 2.4 GHz | 573.5 Mbps |
| Max. Throughput - 5 GHz | 4.8 Gbps |
| Max. Throughput - 6 GHz | 4.8 Gbps |
| Networking & Connectivity | |
| Data Input Port | (1) 2.5GbE RJ45 port (PoE+ powered) |
| Data Output Ports | (4) GbE RJ45 ports (supports PoE passthrough with PoE++) |
| Management Interface | Ethernet, Bluetooth |
| Management Platform | UniFi Network Application (Version 7.1.66 or later in US; 7.2.91 or later globally) |
| Environmental | |
| Operating Temperature | -30 to 60°C (-22 to 140°F) |
| Compatibility | |
| Compatible PoE Injector | U-POE-at |
| Version | International version |
