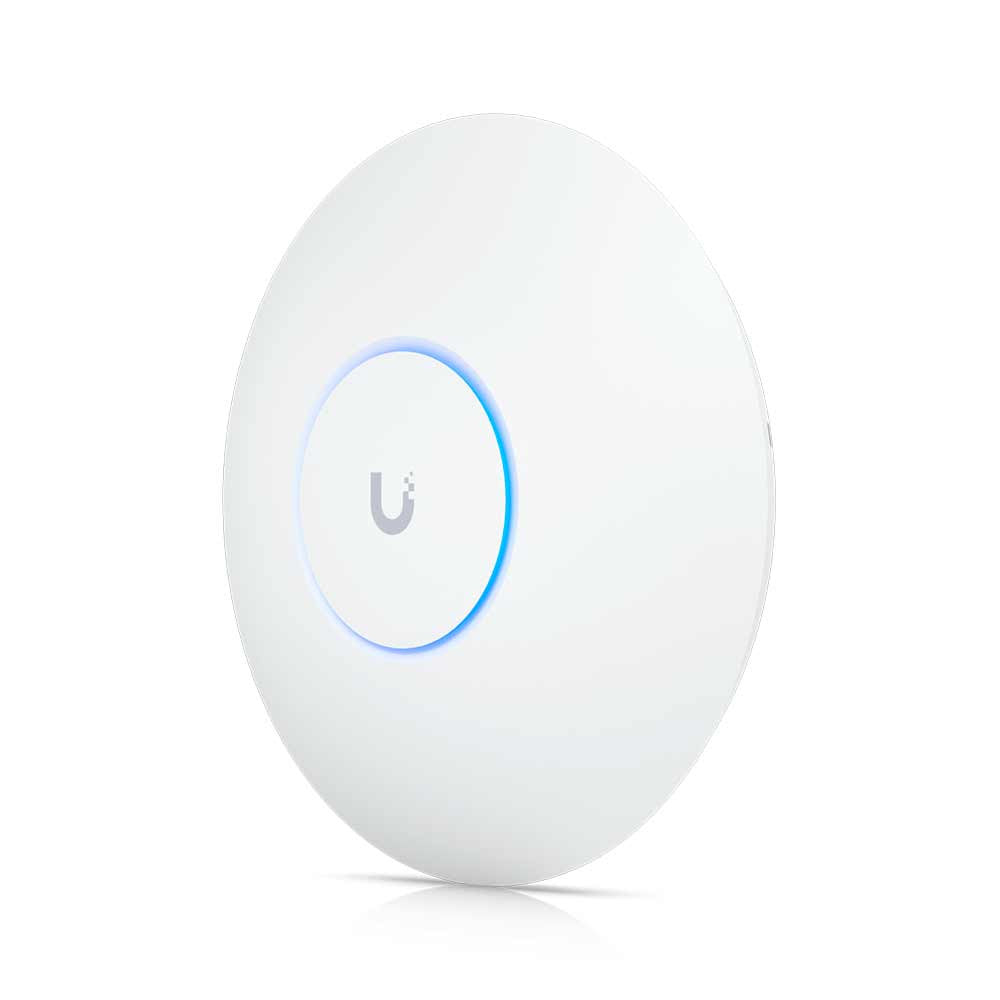

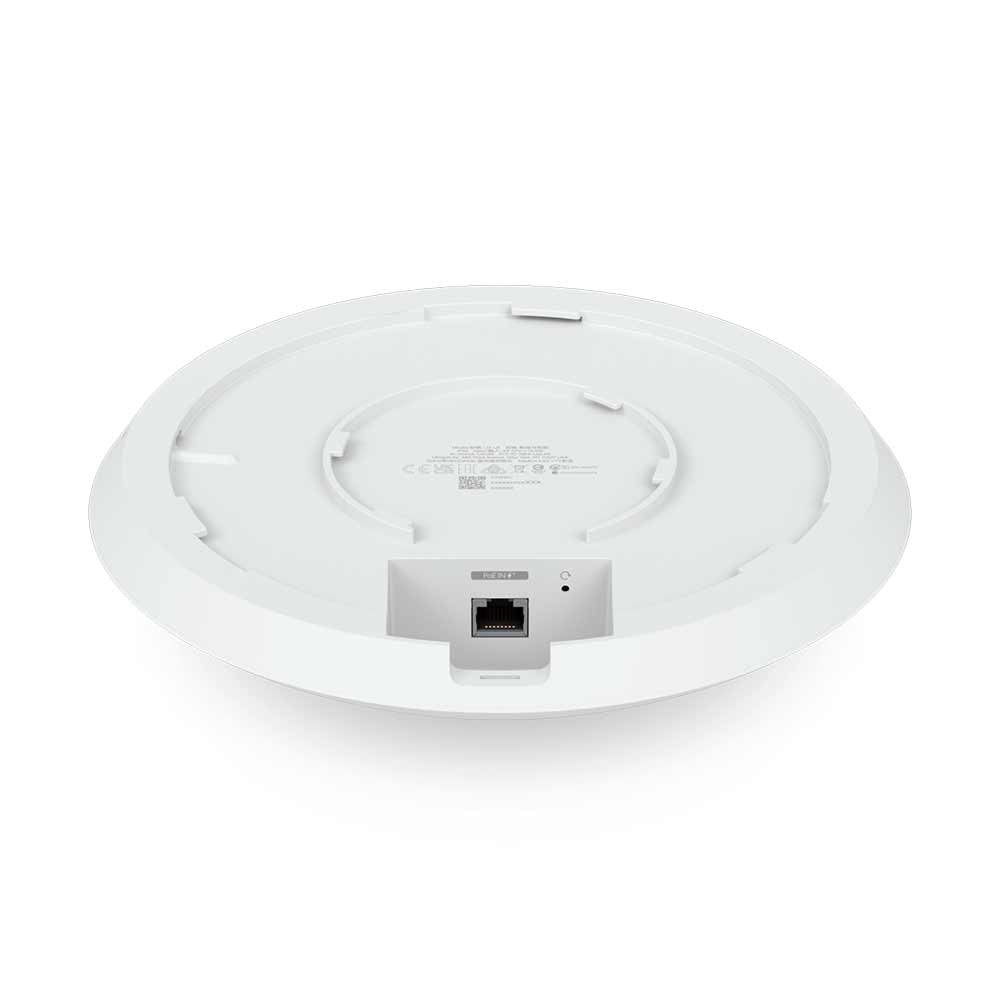

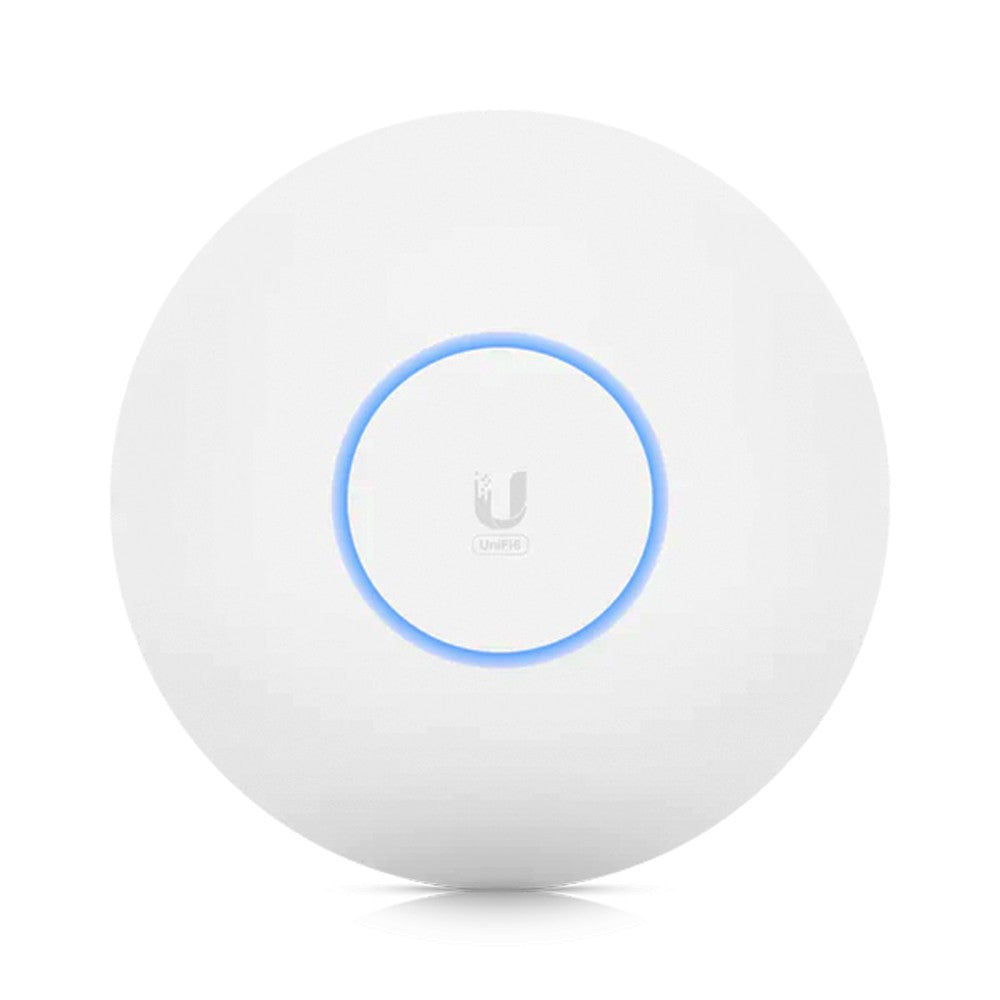

Ubiquiti U6-LR-US UniFi 6 Long-Range Wi-Fi 6 Access Point 4x4 MU-MIMO PoE+

PRODUCT OVERVIEW

Unleash Next-Gen Wi-Fi with the UniFi 6 Long-Range Access Point (U6-LR)

PRODUCT TYPE / CATEGORY

Networking
Wireless Access Points

KEY FEATURES

• Dual-Band Operation: Provides coverage on both the 2.4 GHz (4x4 MIMO) band for extended range and the 5 GHz (4x4 MU-MIMO, OFDMA) band for high-speed data transfer.
• 1.3 GHz Dual-Core Processor: Optimized for efficient multitasking and smooth performance in demanding applications.
• Extensive Coverage: Ideal for semi-outdoor environments, delivering reliable Wi-Fi coverage.
• Full-Duplex 1 Gbps TCP/IP Performance: Ensures fast data transfer for wired connections.
• High-Efficiency Wi-Fi: Improves network performance, supporting over 300 connected devices.
• PoE Compatibility: Supports Power over Ethernet (PoE+), making deployment flexible and efficient.
• Effortless Management: Easily integrates with the UniFi Network Application, allowing quick configuration and real-time monitoring.
• Bluetooth 5.0: Facilitates faster device discovery and setup.
• Ideal for businesses requiring high-speed, reliable Wi-Fi for a large number of users.
• Perfect for enterprises looking to upgrade their networks with the latest Wi-Fi 6 technology.
• Suitable for organizations with semi-outdoor areas needing robust wireless coverage.
• International version U6-LR
• POE U-POE-at
• Mechanical: Dimensions: Ø220 x 48 mm (Ø8.7 x 1.9')
• Weight: Without mount: 800 g (1.8 lb), With mount: 930 g (2.1 lb)
• Enclosure Material: Polycarbonate
• Mount Material: Stainless Steel (SUS304)
• Weatherproofing: IP54

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: U6-LR-US
• Product Type: Wireless Access Points
• Dual-Band Operation: Provides coverage on both the 2.4 GHz (4x4 MIMO) band for extended range and the 5 GHz (4x4 MU-MIMO, OFDMA) band for high-speed data transfer.
• 1.3 GHz Dual-Core Processor: Optimized for efficient multitasking and smooth performance in demanding applications.
• Extensive Coverage: Ideal for semi-outdoor environments, delivering reliable Wi-Fi coverage.
• Full-Duplex 1 Gbps TCP/IP Performance: Ensures fast data transfer for wired connections.
• High-Efficiency Wi-Fi: Improves network performance, supporting over 300 connected devices.
• PoE Compatibility: Supports Power over Ethernet (PoE+), making deployment flexible and efficient.
• Effortless Management: Easily integrates with the UniFi Network Application, allowing quick configuration and real-time monitoring.
• Bluetooth 5.0: Facilitates faster device discovery and setup.
• Ideal for businesses requiring high-speed, reliable Wi-Fi for a large number of users.
• Perfect for enterprises looking to upgrade their networks with the latest Wi-Fi 6 technology.
• Suitable for organizations with semi-outdoor areas needing robust wireless coverage.
• International version U6-LR
• POE U-POE-at
• Mechanical: Dimensions: Ø220 x 48 mm (Ø8.7 x 1.9')
• Weight: Without mount: 800 g (1.8 lb), With mount: 930 g (2.1 lb)
• Enclosure Material: Polycarbonate
• Mount Material: Stainless Steel (SUS304)
• Weatherproofing: IP54
• Hardware: Networking Interface: (1) GbE RJ45 port
• Management Interface: Ethernet, Bluetooth
• Power Method: PoE+
• Max Power Consumption: 18.5W
• Max TX Power: 2.4 GHz: 26 dBm, 5 GHz: 26 dBm
• MIMO: 2.4 GHz: 4x4, 5 GHz: 4x4
• Throughput Rate: 2.4 GHz: 600 Mbps, 5 GHz: 2400 Mbps
• Antenna Gain: 2.4 GHz: 4 dBi, 5 GHz: 5.5 dBi
• Advanced Features: WiFi Standards: 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
• Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• QoS: Per-user rate limiting

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
