Ubiquiti · Wireless Access Points

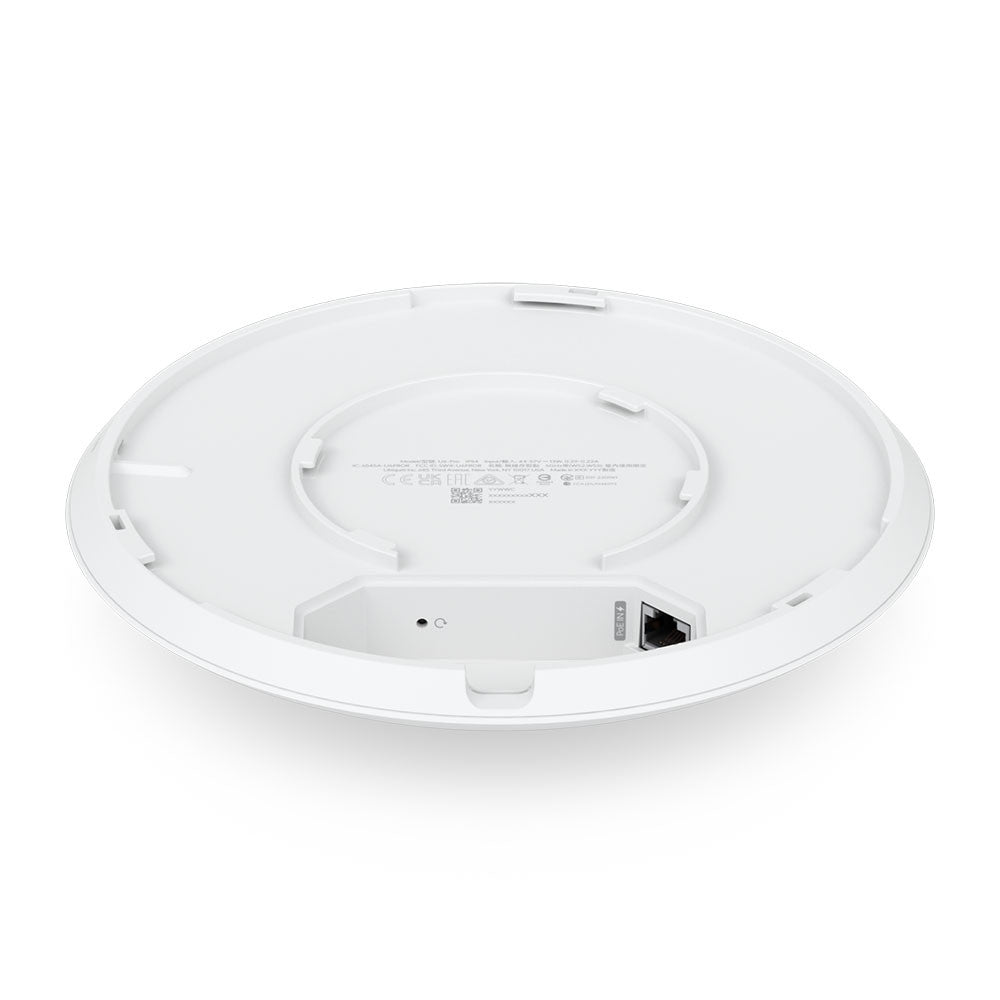

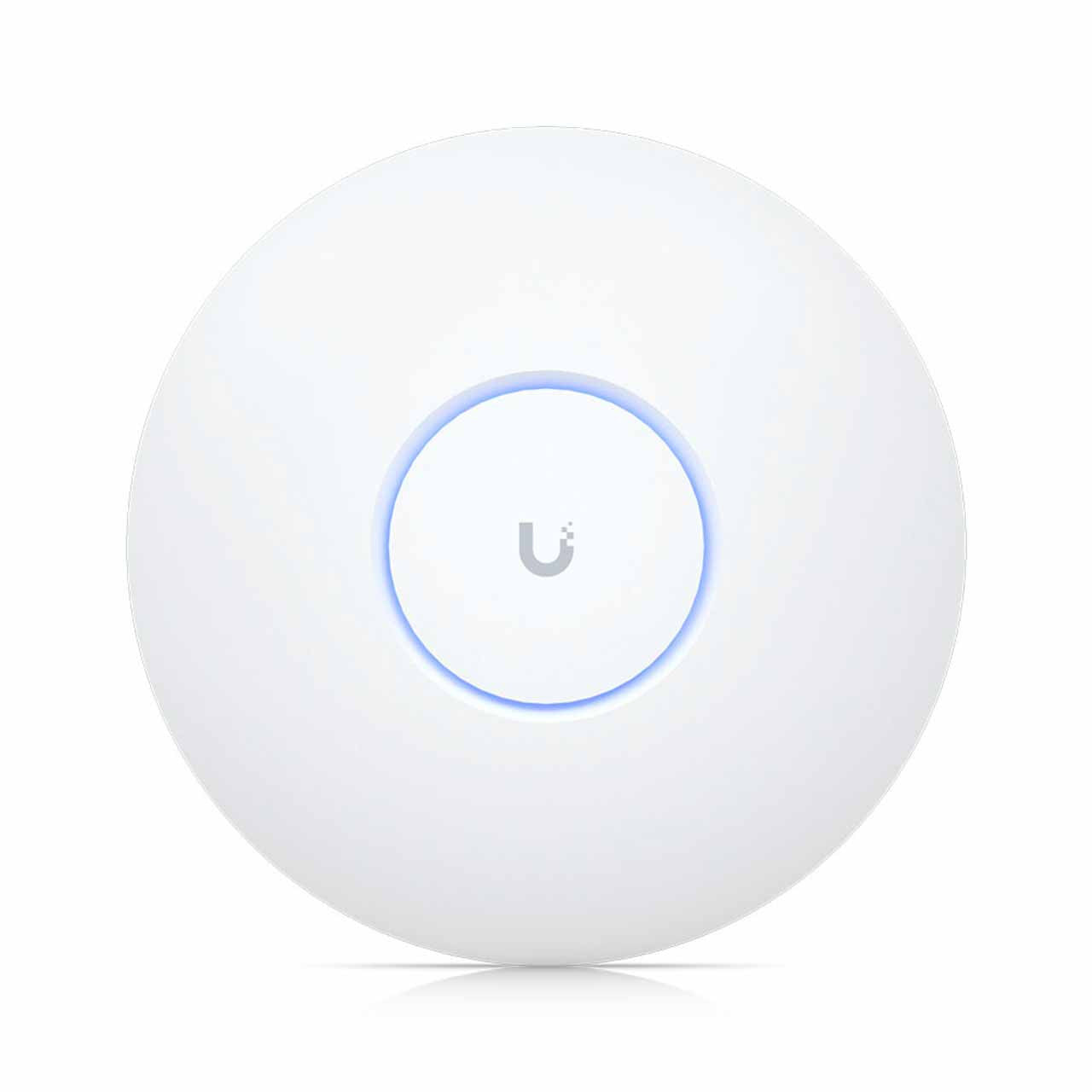

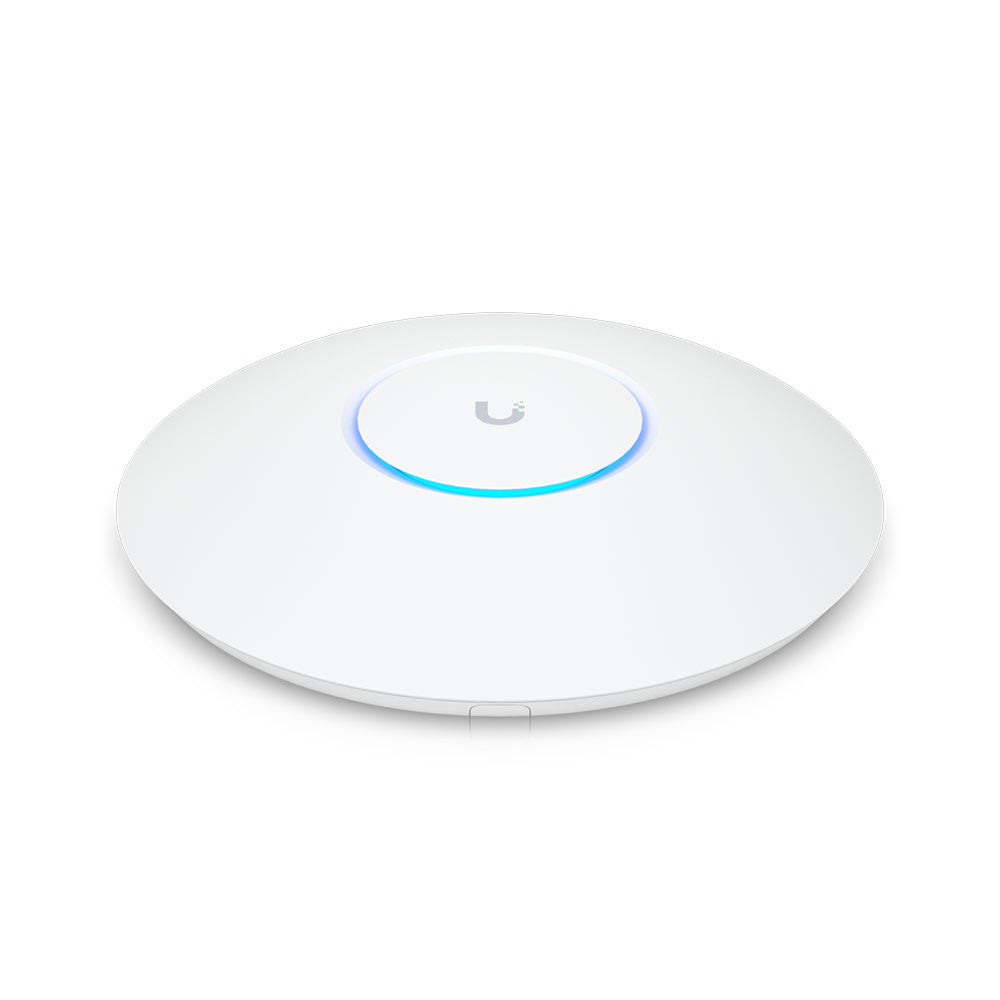

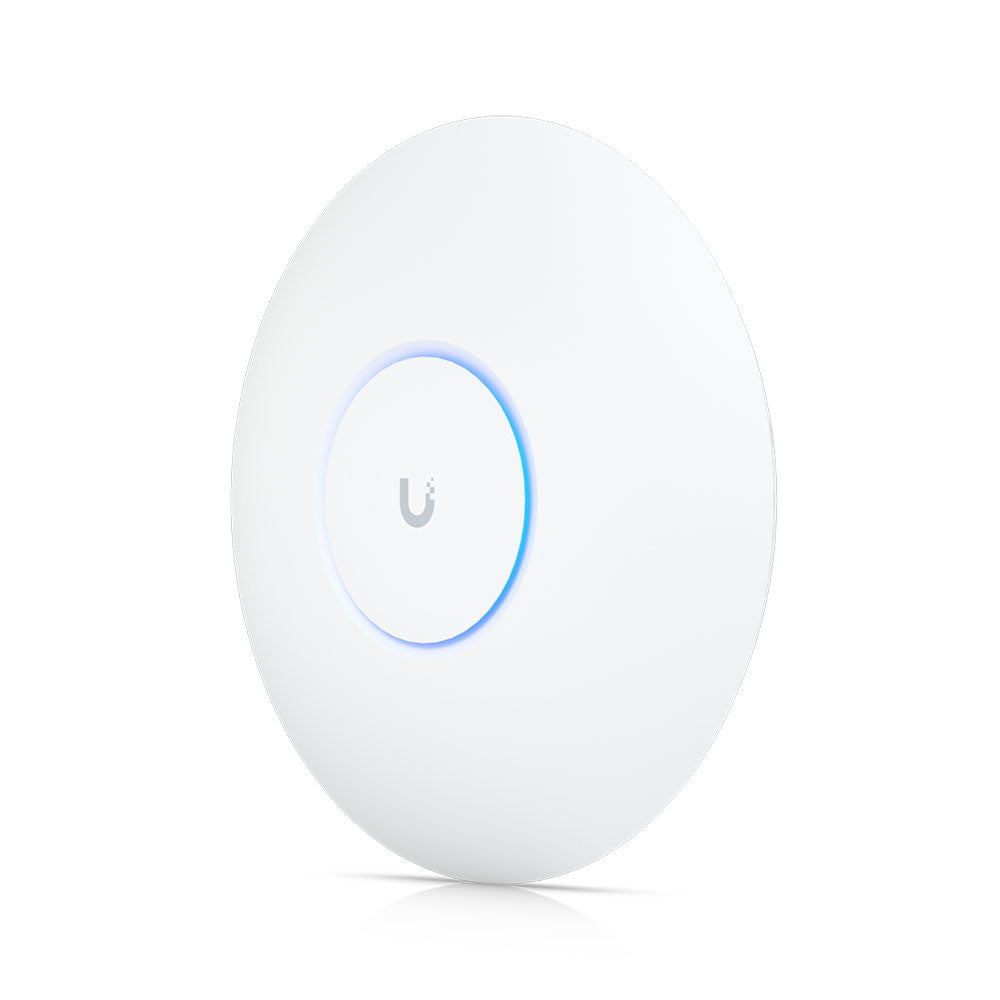

Ubiquiti U6-Pro-US WiFi 6 Dual-Band Access Point 5.3 Gbps 300+ Clients
- EhubAmerica SKU
- U6-Pro-US
- PoE
Special order· Lead time confirmed by our team after you order.
- Warranty
- Manufacturer warranty
Need project or contract pricing?
Request project pricing- Help in English, Spanish and Portuguese
- 30-day returns
Not sure it fits your system? Check compatibility
Overview
What it is and who it is for
PRODUCT OVERVIEW
Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• Dual-band WiFi 6 (802.11ax)
• 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
• 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
• Operates at full 4x4 MIMO with 160 MHz bandwidth
• 300+ concurrent client capacity
• Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
• Included universal mounting plate, backing plate, and screw kit
• Ø197 x 35 mm (Ø7.76 x 1.38")
• Without mount: 460 g (1.01 lb)
• With mount: 600 g (1.32 lb)
• International version U6-Pro
• POE U-POE-af
• Mechanical Enclosure material: Polycarbonate
• Mount material: Stainless steel (SUS304)
• Weatherproofing: IP54
• Hardware Networking interface: (1) GbE RJ45 port
• Management interface: Ethernet
• Bluetooth
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: U6-Pro-US
• Product Type: Wireless Access Points
• Dual-band WiFi 6 (802.11ax)
• 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
• 2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
• Operates at full 4x4 MIMO with 160 MHz bandwidth
• 300+ concurrent client capacity
• Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
• Included universal mounting plate, backing plate, and screw kit
• Ø197 x 35 mm (Ø7.76 x 1.38")
• Without mount: 460 g (1.01 lb)
• With mount: 600 g (1.32 lb)
• International version U6-Pro
• POE U-POE-af
• Mechanical Enclosure material: Polycarbonate
• Mount material: Stainless steel (SUS304)
• Weatherproofing: IP54
• Hardware Networking interface: (1) GbE RJ45 port
• Management interface: Ethernet
• Bluetooth
• Power method: PoE
• Power supply: UniFi PoE switch
• 48V, 0.5A PoE adapter (not included)
• Supported voltage range: 44—57V DC
• Max. power consumption: 13W
• Max. TX power 2.4 GHz 22 dBm
• 5 GHz 26 dBm
• MIMO 2.4 GHz 2 x 2 (UL MU-MIMO)
• 5 GHz 4 x 4 (DL/UL MU-MIMO)
• Throughput rate 2.4 GHz 573.5 Mbps
• 5 GHz 4.8 Gbps
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
Specifications
Technical specifications
| Ubiquiti U6-Pro UniFi WiFi 6 Access Point | |
|---|---|
| General | |
| Model | U6-Pro-US |
| Product Type | Indoor dual-band WiFi 6 access point |
| WiFi Standard | 802.11ax (WiFi 6) |
| Concurrent Clients | 300+ |
| Aggregate Throughput | 5.3 Gbps |
| Physical | |
| Dimensions | Ø197 x 35 mm (Ø7.76 x 1.38") |
| Weight (without mount) | 460 g (1.01 lb) |
| Weight (with mount) | 600 g (1.32 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Mounting | Wall/ceiling (included) |
| Power & Electrical | |
| Power Method | PoE |
| Supported Voltage Range | 44—57V DC |
| Max. Power Consumption | 13W |
| Power Supply Options | UniFi PoE switch, 48V 0.5A PoE adapter (not included) |
| Wireless / RF | |
| Throughput | 573.5 Mbps |
| MIMO | 2x2 UL MU-MIMO |
| Max. TX Power | 22 dBm |
| Antenna Gain | 4 dBi |
| Bandwidth | 160 MHz (full 4x4 MIMO capable) |
| Throughput | 4.8 Gbps |
| MIMO | 4x4 DL/UL MU-MIMO |
| Max. TX Power | 26 dBm |
| Antenna Gain | 6 dBi |
| Bandwidth | 160 MHz |
| Networking & Connectivity | |
| Networking Interface | (1) Gigabit RJ45 port |
| Management Interfaces | Ethernet, Bluetooth |
| Features | Guest Traffic Isolation, OFDMA |
| Environmental | |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% noncondensing |
| Compatibility | |
| Compatible Models | U6-Pro (International version) |
| Compatible Power Supplies | U-POE-af |
